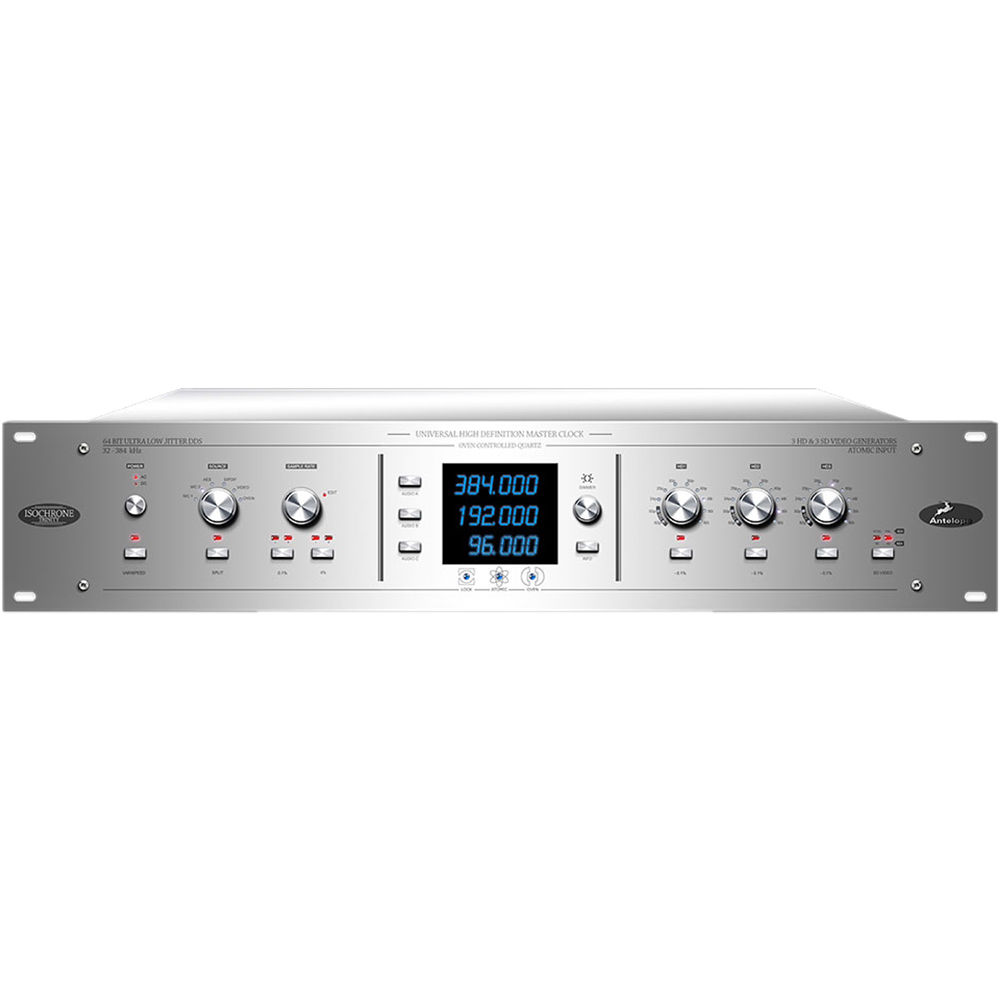

Antelope Audio Isochrone Trinity Universal High Definition Master Clock

Availability: Please submit request below...
R59,995.00 R71,195.00
Seen a better price? Let us know!
3-Channel 384 kHz Mastering-Grade HD Master Clock
16% Off... the manufacturer's suggested retail price...

In the fickle world of Audio & Video formats, Trinity is the Master Clock that stands out from the crowd, with the kind of features that others can only aspire to. With dedicated functions and controls, Trinity is the best sounding and most versatile Master Clock available anywhere. Installed in some of the most prominent audio and post production facilities around the globe, Trinity is in the roots of great percentage of the contemporary music and movie productions. Trinity is also an integral component of some of the largest live concerts and events nowadays.

NEXT LEVEL OF PERFECTION Stable clocking and advanced jitter management

Powered by an ultra stable oven controlled crystal oscillator, Trinity’s completely redesigned timing engine with 4th generation 64-bit Acoustically Focused Clocking provides supremely low jitter and high stability, with distinct sonic advantages that are immediately apparent. An atomic input makes it a perfect match for the 10M Atomic Clock, while user re-calibration and dual redundant power supply will keep the unit running smoothly and prevent costly downtime.

  • 64-BIT DSP ACOUSTICALLY FOCUSED CLOCKING A new level of detail via 4th Generation of Acoustically Focused Clocking employing 64 bit
  • DSP SUPREME CLOCKING Supremely low jitter thanks to our Oven Controlled Crystal Oscillator or sync via Atomic Input
  • 384 KHZ SAMPLE RATE Sample rate up to 384 kHz, 3 independent & simultaneous audio generators & 3 independent audio channels

AS PRO AS YOU CAN GO The features that make it unique

Trinity takes care of requirements that usually would have needed several units. With 3 HD and 2 SD generators the unit locks to and generates all known professional video format, while simultaneously offering 3 independent audio channels capable of 384 kHz with varispeed adjustment in cents or percent! With its wealth of connectivity, flexibility, and ease of use, Trinity is the ideal linchpin for a modern studio.

Antelope Audio Isochrone Trinity Universal High Definition Master Clock Features:

  • Fourth generation of acoustically focused clocking employing 64 bit DSP leads to a new level in detailed & focused sound
  • Oven Controlled Crystal Oscillator or Atomic input for supremely low jitter
  • Factory calibrated to better than +/- 0.001 ppm accuracy

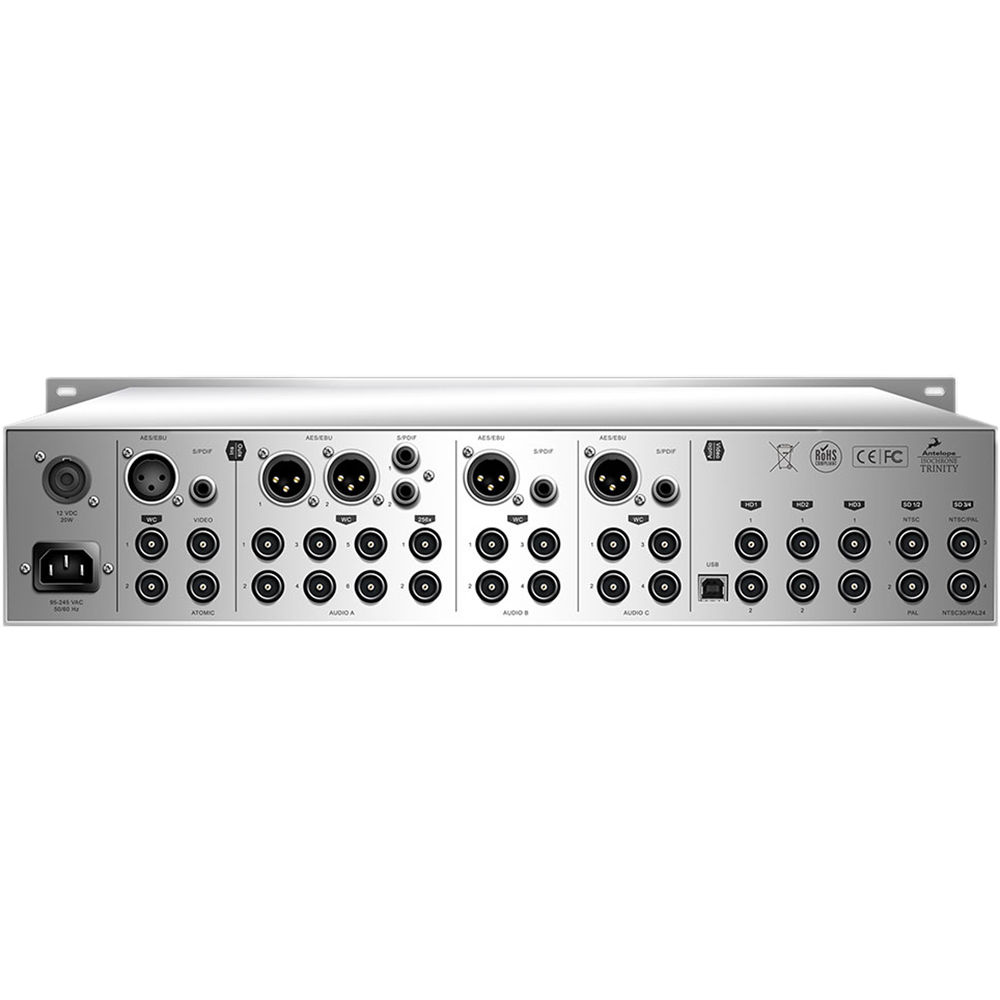

  • A wealth of rear panel connectivity for tremendous flexibility
  • Comprehensive audio gear boxing for anything in, anything out
  • Atomic input for ultimate performance
  • Three independent & simultaneous audio generators up to 384kHz, and varispeed control +/- 200 cents
  • Three independent & simultaneous HD generators, covering 16 formats
  • Three independent & simultaneous SD generators, simultaneously offering PAL & NTSC.
  • Full Euro and USA pull-ups / pull-downs for SD and HD video
  • USB connection via PC & Mac allowing full remote control, loading/saving presets and firmware upgrades
  • Dual redundant power supply with automatic switchover for added reliability

    Clocking System 4th Generation Acoustically Focused Clocking 64 bit DDS Oven Controlled Crystal Oscillator
    9 Independent and simultaneous: 3 audio, 3 HD, 3 SD
    Stability < +/-0.02ppm @ 64.5°C
    Varispeed +/-200 cents +12.246% -10,910%
    Basic sampling rates
    32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 (kHz)
    Pull ups/downs
    +/- 0.1% NTSC and/or +/- 4% PAL
    -0.1% HD
    Digital Inputs 1 x XLR 3-Pin AES3, 1 x RCA Coaxial S/PDIF
    Digital Outputs 4 x XLR 3-Pin AES3, 4 x RCA Coaxial S/PDIF
    Word Clock Input 2 x 75 Ohms 3Vpp on BNC
    Word Clock Output
    16 x 75 Ohms 3Vpp on BNC
    Atomic Clock Input 10MHz @ 1Vpp on BNC
    Video Input 1 x 75 Ohms 3Vpp on BNC
    Video Output 6 x 75 Ohms 3Vpp on BNC
    Clocking System 4th Gen AFC jitter management technology
    Height 3.5" / 8.89cm
    19" / 48.26cm
    Depth 8" / 20.32cm
    Weight 8.8 lb / 4.0 kg
    Manufacturer Part Number 853744004168
