Korg created an all-new filter design for the Prologue synthesizer. This smooth-sounding filter features a dedicated drive circuit for adding harmonic richness, with a low-frequency compensation switch for maintaining powerful bass. While heavy overdrive can rob a signal of its bass impact, this switch allows you to add sizzling distortion while keeping the low end rock solid.

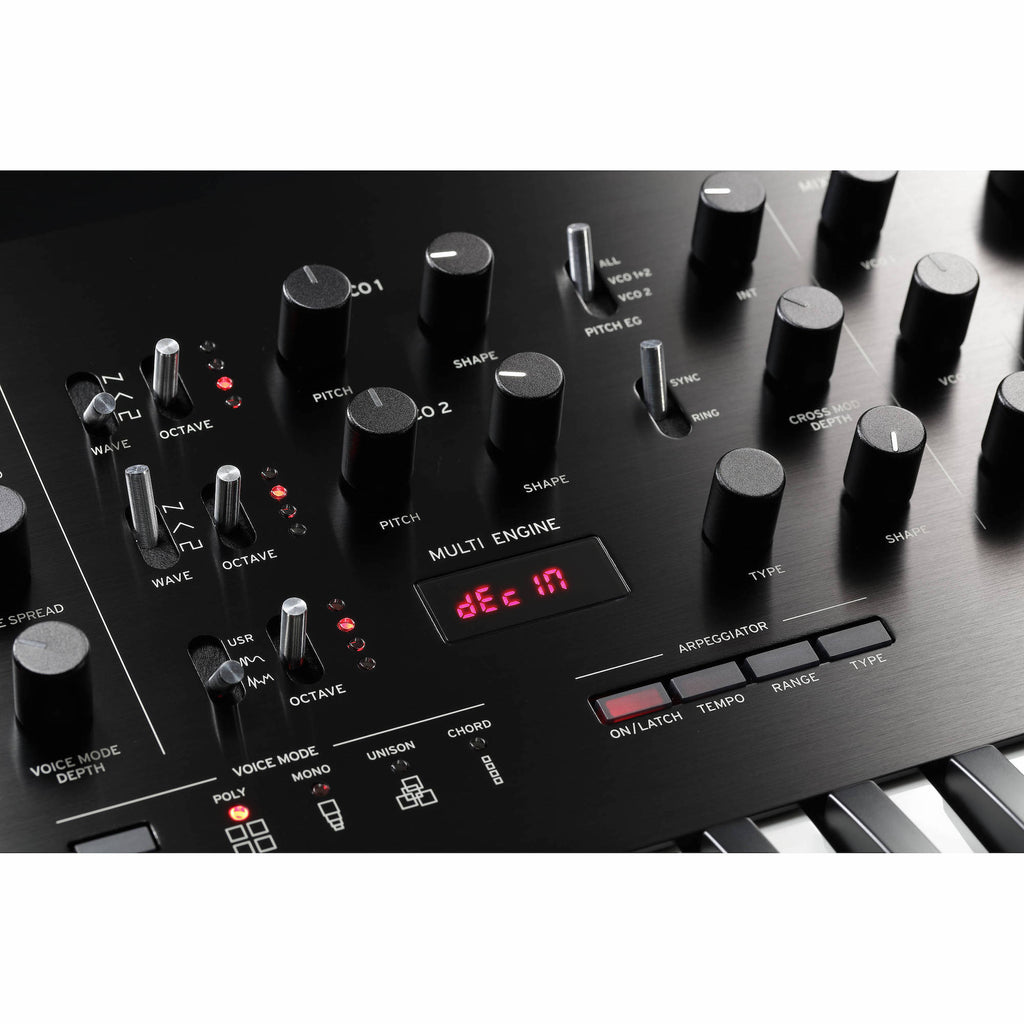

While the Prologue offers impressive polyphonic appeal, you can also choose monophonic voice operation for playing classic lead and bass lines. Unison mode operates as an all-unison monosynth. And Chord mode produces chords with a single key press. Whether you're looking for musical inspiration, or preparing for a live performance, Prologue's flexible voice modes offer big creative potential.
Like many Korg synths, Prologue offers multiple ways to create custom patches. In addition to single-timbre mode, Prologue features three dual-timbre modes for combining sounds. Split mode allows you to assign two different sounds to two different sections of the keyboard, while Layer mode allows you to play two sounds simultaneously across the entire keyboard. Crossfade mode offers even more performance potential, basically combining the two modes to create a smooth sonic transition between zones on the keyboard.
| Type | Polyphonic Analog Synthesizer |
|---|---|
| Sound Engine Type(s) | Analog, FM, Wavetable |
| Analog/Digital | Analog-Digital Hybrid |
| Number of Keys | 61 |
| Type of Keys | Natural touch synth action, Velocity-sensitive |
| Other Controllers | Pitchbend, Mod wheel |
| Polyphony | 16 voices |
| Number of Presets | 200+ |
| Oscillators | 2 x Analog Oscillators (square, triangle, sawtooth) 1 x Digital FM/wavetable |
| LFO | Wave (saw, triangle, square), Mode (fast, slow, BPM), Rate, Int, Target (pitch, shape, cutoff) |
| Filter | Cutoff, Resonance, EG Internal, Drive, Low Cut, Keytrack |
| Number of Effects | 43 types |
| Effects Types | Chorus, Flange, Phase, Ensemble, Delay, Reverb |
| Arpeggiator | 6 types (manual, rise, fall, rise fall, random, poly random) |
| Audio Outputs | 2 x 1/4" (L/Mono, R) |
| Headphones | 1 x 1/4" |
| USB | 1 x Type B |
| MIDI I/O | In/Out |
| Pedal Inputs | 2 x 1/4" (expression, damper) |
| Other I/O | 1 x 1/4" (headphone), 2 x 1/8" (sync in/out) |
| Power Supply | Standard IEC AC cable |
| Height | 4.65" |
| Width | 34.41" |
| Depth | 13.70" |
| Weight | 20.06 lbs. |
| Manufacturer Part Number | PROLOGUE16 |
