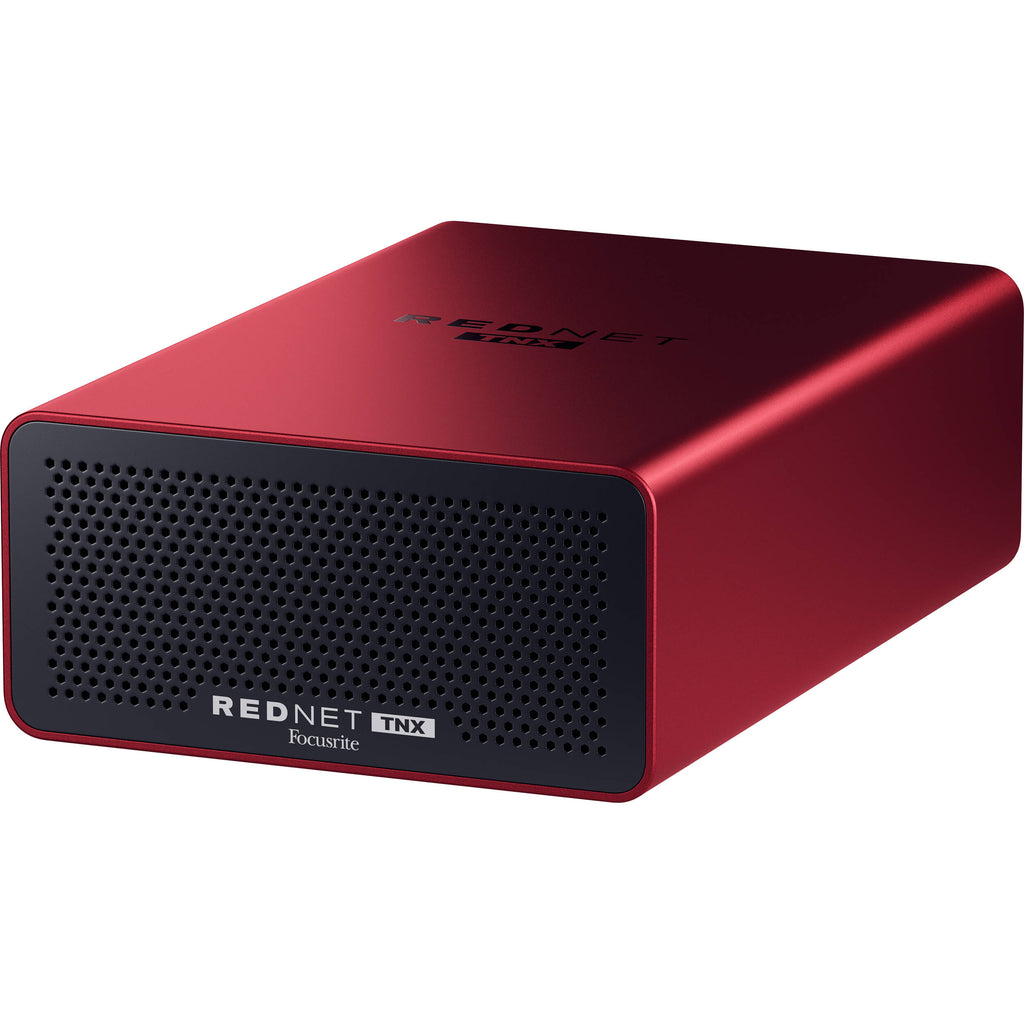

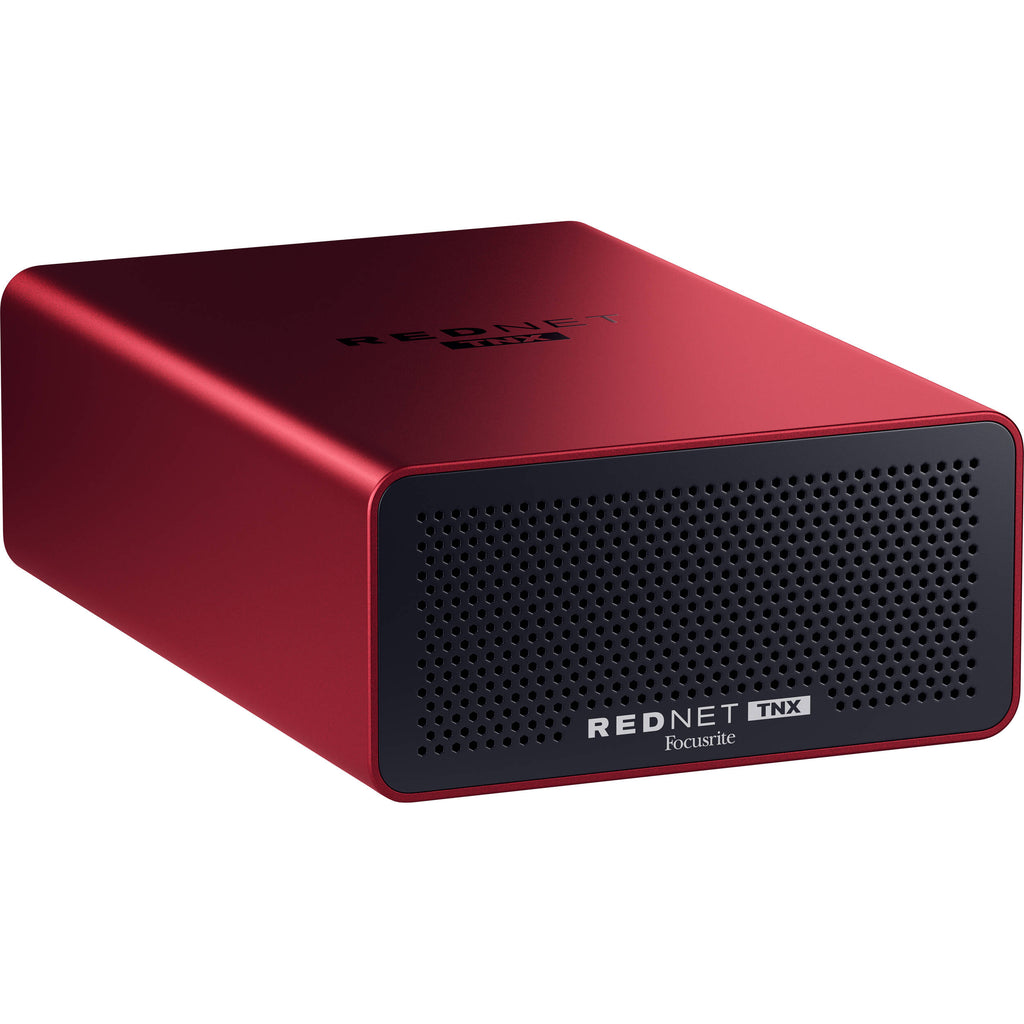

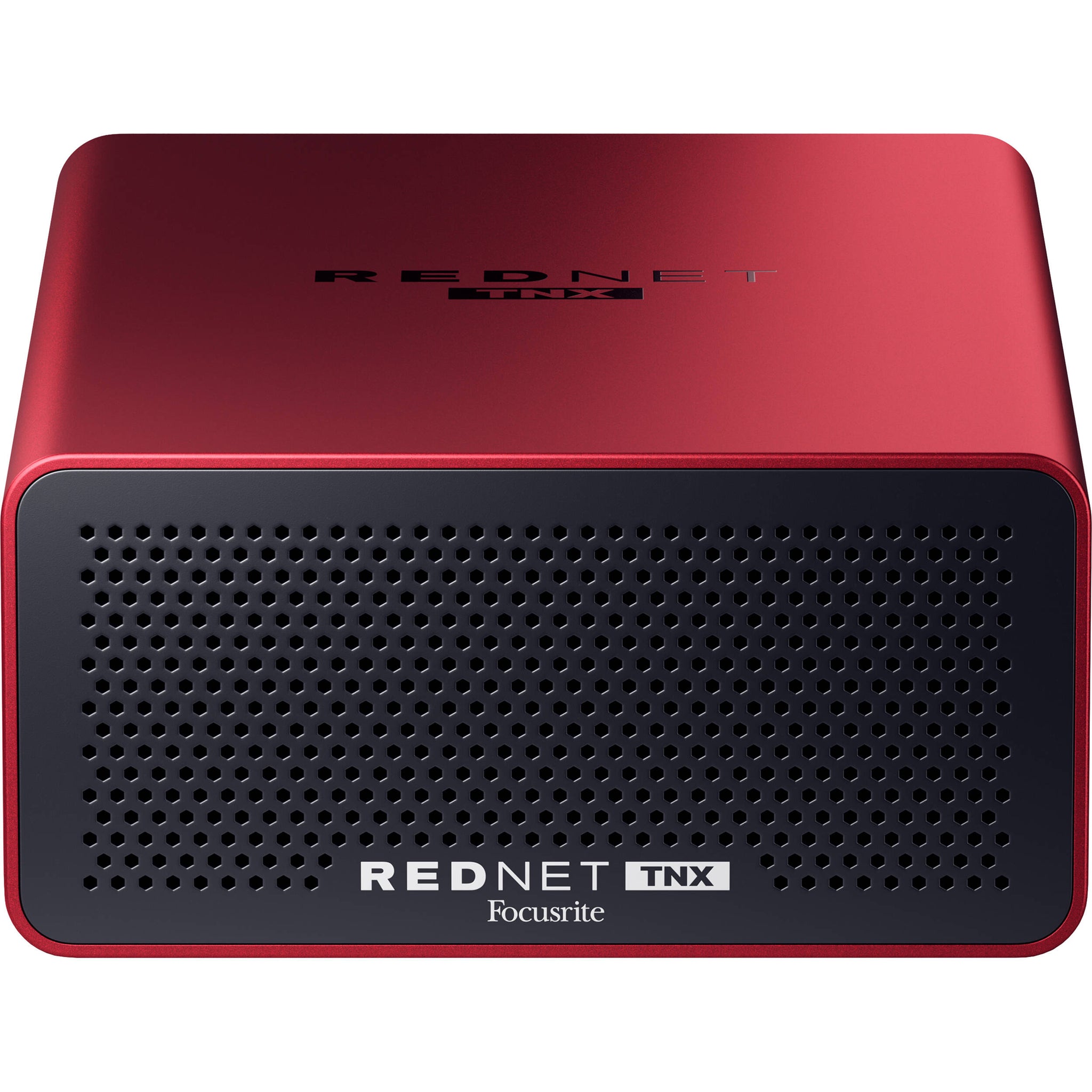

The Focusrite RedNet TNX is a high-performance, portable Dante interface providing 128x128 channels of uncompressed, ultralow latency audio at 24-bit / 192 kHz over a single Thunderbolt 3 connection to any compatible computer. Designed for mission-critical workflows, TNX supports AES67 interoperability, Dante Domain Manager (DDM) integration, and SMPTE ST 2110 compliance for seamless deployment in complex recording, broadcast, postproduction, and immersive audio environments such as Dolby Atmos.

Dual Ethernet ports enable primary/secondary network redundancy, while configuration and routing are centrally managed via RedNet Control software. Compact and robust, the TNX is engineered for reliability and flexibility—perfect for commercial studios, post houses, OB, or remote-production scenarios requiring scalable, high-resolution audio networking.

Powerful, Portable Audio Workflows

128x128 channels at 24-bit / 192 kHz out of the box, with ultralow round-trip latency for any Windows or Mac system with an available Thunderbolt 3 port.

Seamless Thunderbolt 3 Connectivity

RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24-bit / 96 kHz with Dante Ready.

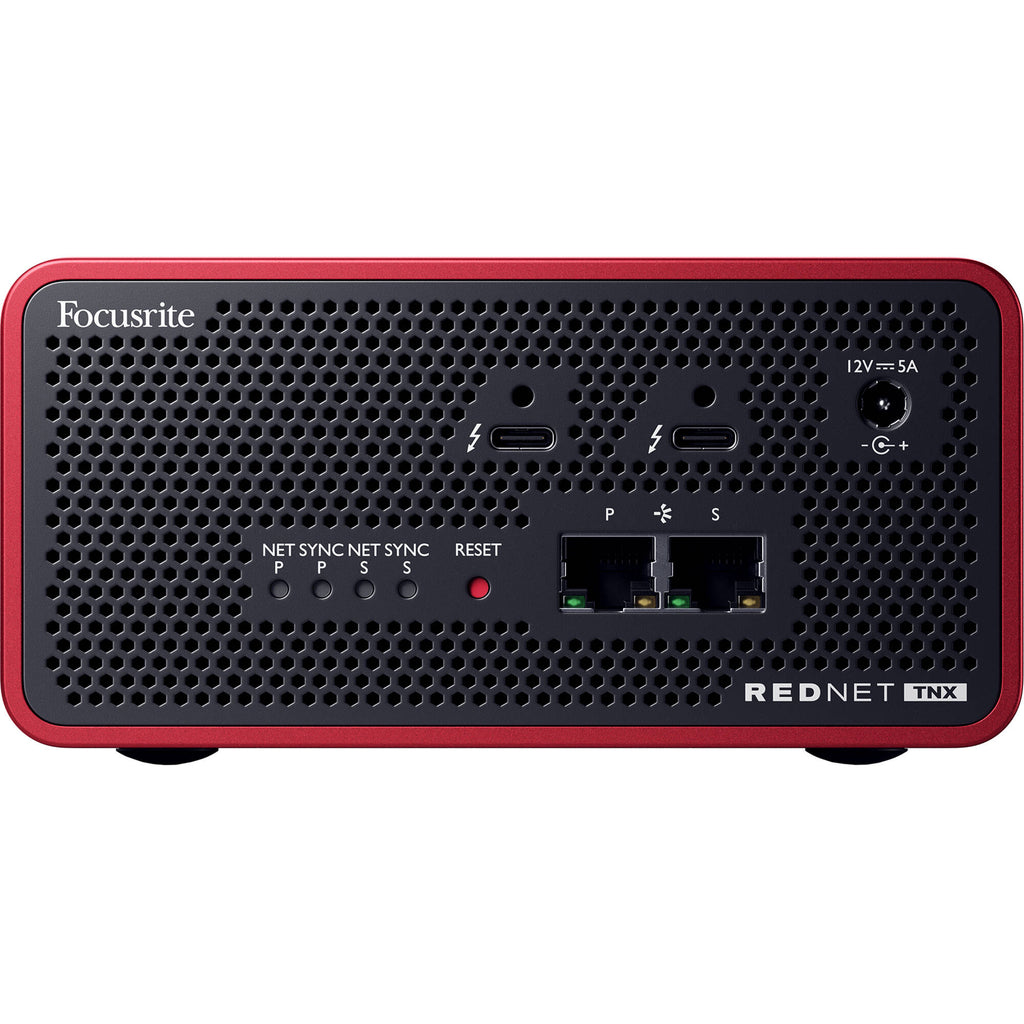

Dual Ethernet RJ-45 Connections

Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity and the option to have a secondary network in mission-critical situations.

Broadcast-Ready with support for the Latest AoIP Standards

RedNet TNX is reliable, adaptable, and supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required).

Windows and macOS Compatible

RedNet TNX works with Thunderbolt-equipped laptop or desktop computers running Windows (Intel) or macOS (Intel and Apple Silicon).

Simple Integrated Network Control

RedNet TNX features an integrated network interface, allowing for network control via a single-cable connection.
