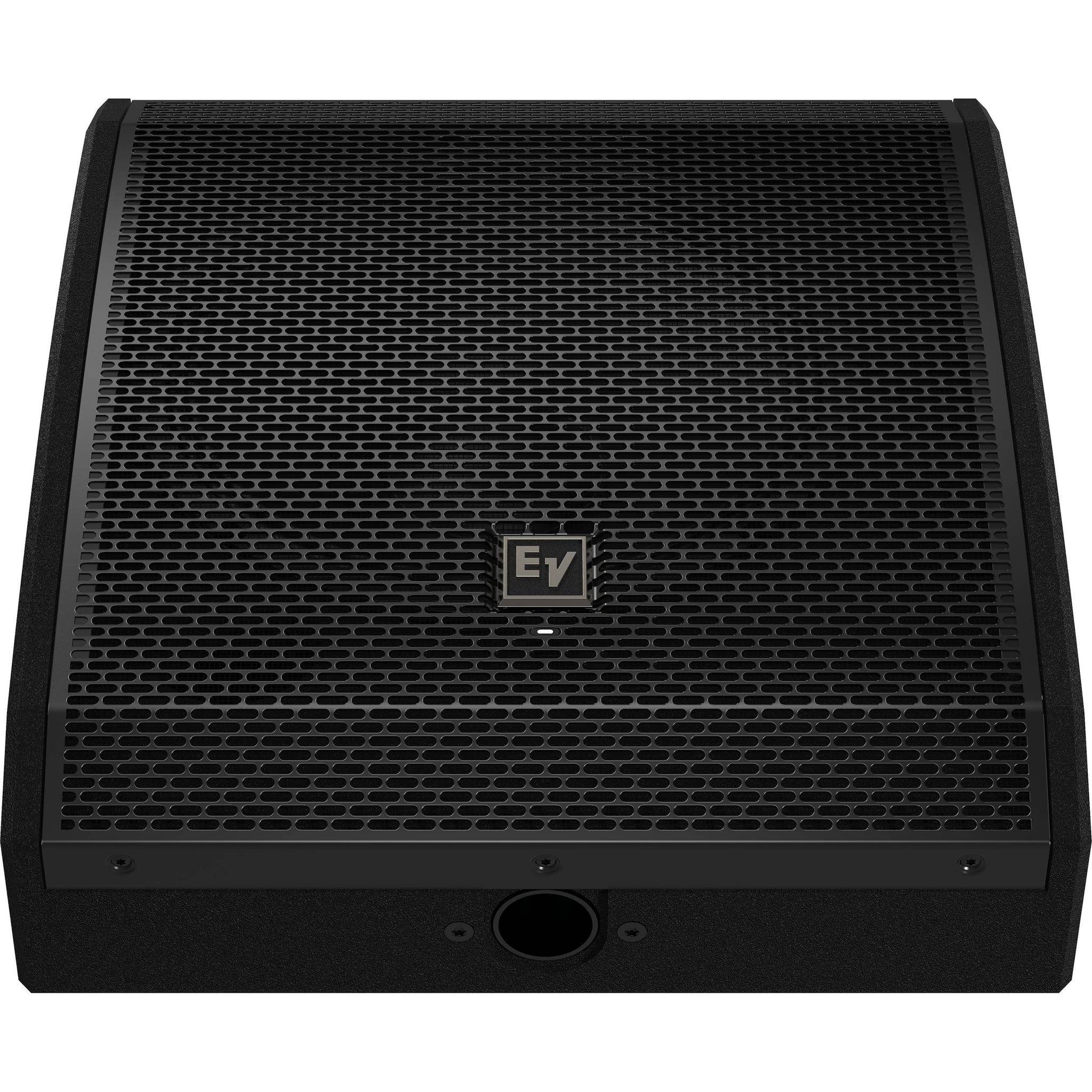

Low-profile Stage Wedge/Mains Speaker with 700W Amp

Are you a performer who travels with your own PA? A guitarist looking for a better way to monitor your modeler onstage? The low-profile Electro-Voice PXM-12MP from Music Experience is a smart multitasker that makes a sound investment. On one hand, the PXM-12MP is a rock-solid wedge for traditional monitoring purposes. Its 12" coaxial driver and 55° firing angle supply a crisp full-range response in a wide arc, ensuring that whether you're footing-up for a solo or heading downstage for a break, you'll still hear yourself clearly. If you want to use it as a short-throw mains speaker, the PXM-12MP’s pole mount allows quick setup with a robust 700-watt Class D power amp and powerful onboard DSP delivering rich sound to all listeners in the first few rows. A rugged steel grille and integrated cable management complete this versatile package.

Low-profile design

Unlike traditional wedges that require space for both a woofer and high-frequency driver, the PXM-12MP uses a coaxial design to reduce floor space requirements, improving sight lines and stage safety. Integrated cable management also provides a secure, tidy setup onstage.

Guitar Cab mode

Guitar players can take advantage of the PXM-12MP’s "FRFR" (Full Range/Flat Response) mode to support amp modelers with onboard cab IRs and cabinet emulations. For a more traditional response, the Guitar Cab mode can be selected within the PXM-12MP presets to reduce top-end fizz when using amps and modelers without cabinet emulation.

What Electro-Voice Says...

Multi-functional Monitoring System

• Useable as a floor wedge or mains PA
• Acoustically optimized 55° monitor floor angle
• QuickSmartDSP with four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual limiter monitoring, input level meters, and master volume control via LCD
• GUITARCAB setting for guitarists to dial in signature tone
• 700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL using EV transducers
• System reliability verified with over 500 hours of abuse and endurance testing

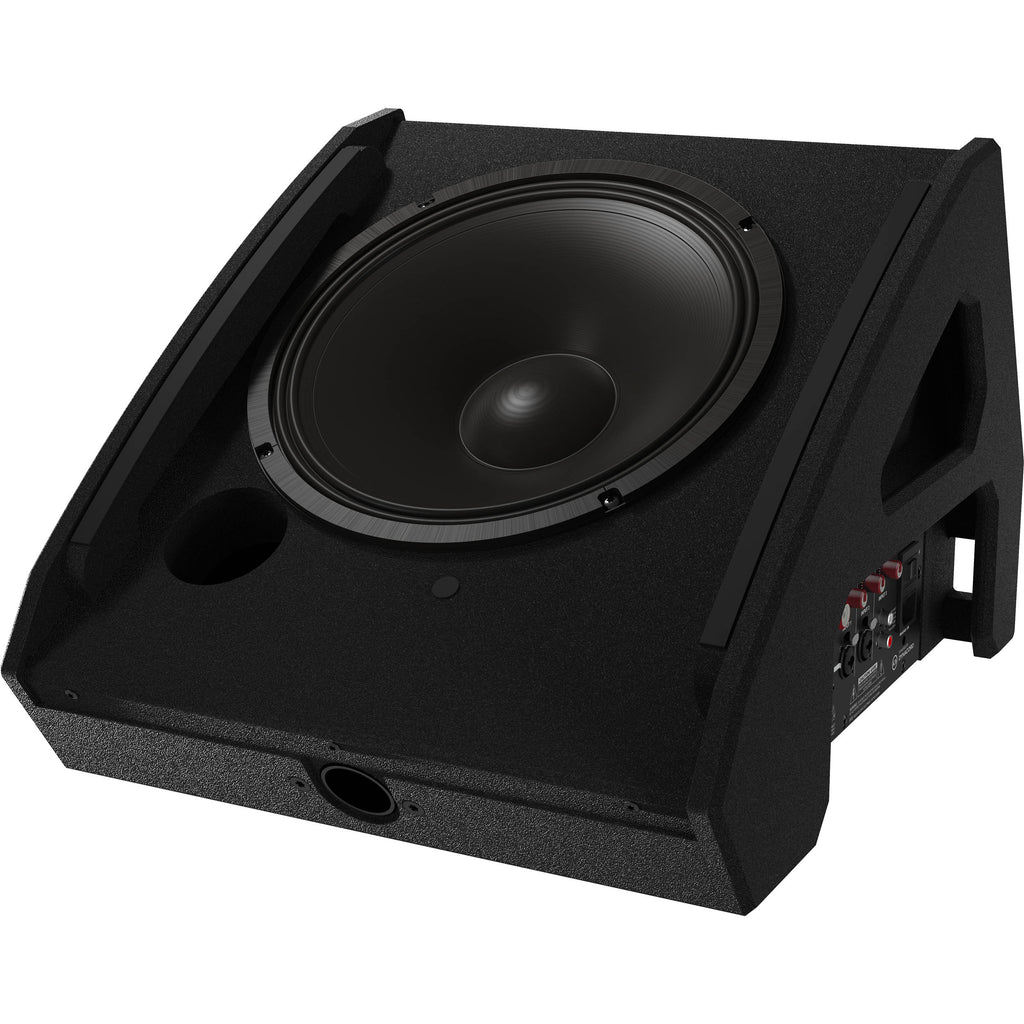

The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers with convenient and powerful monitoring and playback functionality. Its 12” / 1.75” coaxial driver delivers a symmetrical 90° x 90° coverage pattern, ensuring consistent sound across the stage. The 55° monitor angle allows performers to position themselves freely without sacrificing audio clarity. An integrated pole mount enables additional uses, such as fills, delays, or a main PA. Combined with a dedicated subwoofer and adjustable subwoofer LPFs, a full 3-way system can be configured for a compact main PA solution.

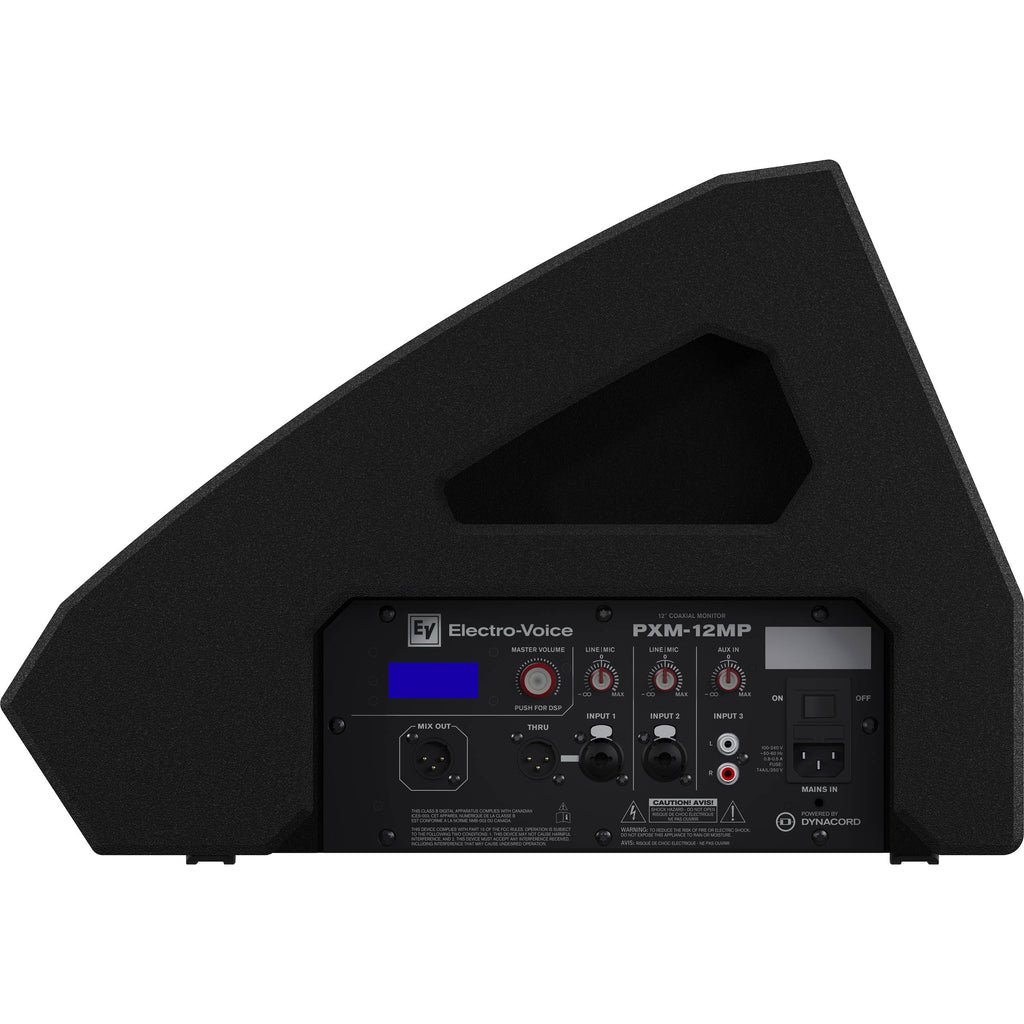

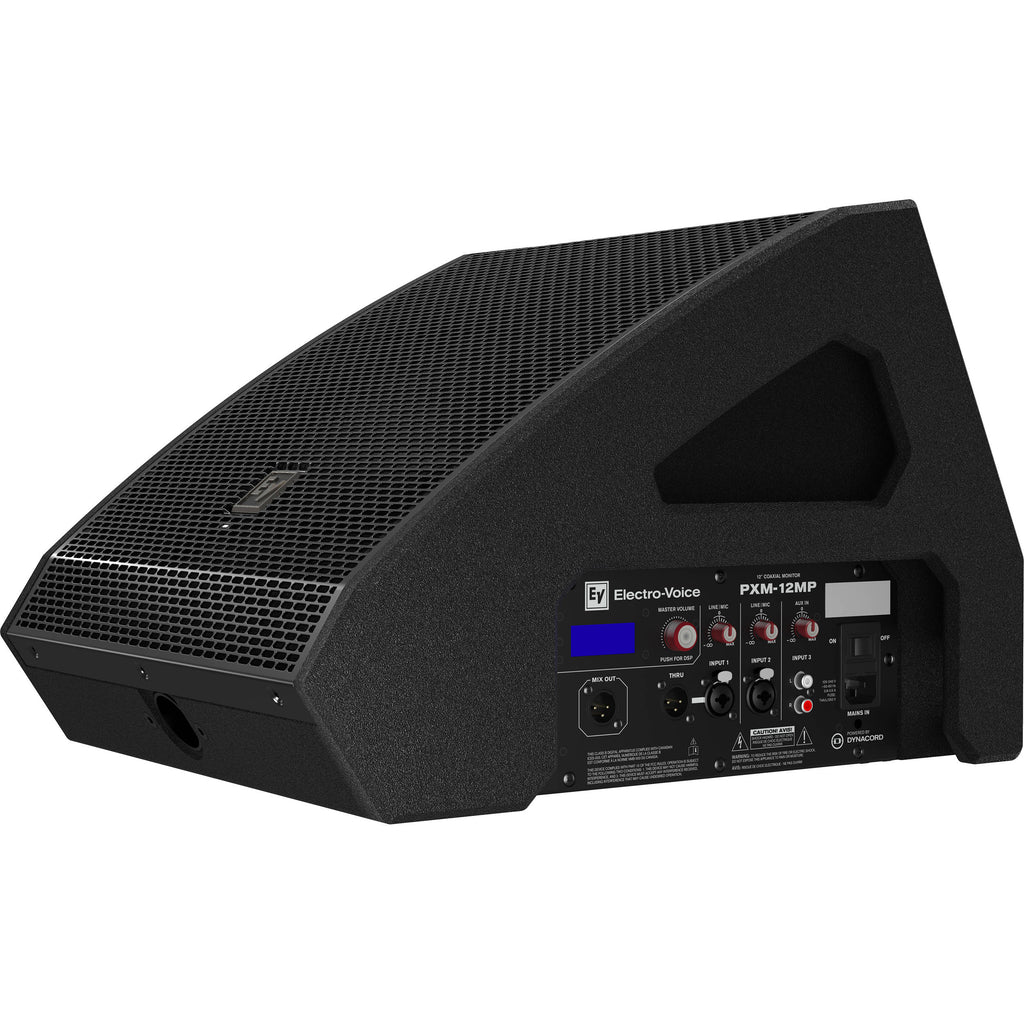

The integrated mixing section provides 3 input channels: 2 x XLR / ¼” combo connectors and a stereo RCA input. QuickSmartDSP offers 4 EQ presets, high- and low-shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700 W amplifier provides ample power for demanding monitoring needs, while Electro-Voice system protection ensures consistent performance at maximum output.
