A High-Quality Audio Interface That Won’t Break the Bank

Looking for a high-quality audio interface that won’t break the bank? The MOTU M6 is a 6-in/4-out USB-C audio interface featuring ESS Sabre32 Ultra™ DAC technology for premium sound and optimized drivers for impressive low-latency performance. Four high-quality mic preamps with individual gain control and phantom power ensure clean recordings, while one-touch hardware monitoring delivers smooth, latency-free tracking.

Best-in-Class D/A, Low Latency, and Ample I/O

Music Experience and MOTU share a long-standing relationship built on superb sound quality and reliable performance. The M6 continues this tradition by delivering exceptional audio quality, impressively low latency and generous I/O in a compact single-rack enclosure. Renowned ESS Sabre32 Ultra™ DAC technology provides 120 dB of dynamic range, ensuring professional-grade analog sound. Optimized drivers deliver round-trip latency as low as 2.5 ms at 24-bit/96 kHz with a 32-sample buffer. Essential connectivity includes four mic/line/Hi-Z guitar inputs on combo XLR/TRS jacks, four DC-coupled analog outputs, an ESS-driven stereo headphone output and MIDI I/O.

Loopback Functionality for Live Streaming

Built-in loopback functionality makes live streaming and podcasting easy by blending microphone or instrument inputs with your computer’s playback and routing the combined signal back to your computer. This allows you to record both your live inputs and system audio simultaneously, with a dedicated mix knob for balancing live sound and playback.

Zero-Latency Hardware Monitoring

One-touch hardware monitoring routes all analog inputs directly to the M6’s analog outputs for true zero-latency operation. This eliminates distracting delay between performance and monitoring, allowing you to play or sing naturally while recording. Inputs can be recorded simultaneously while monitoring with zero latency, ensuring accurate and comfortable tracking.

What MOTU Says...

Convenient front-panel metering is provided by a full-color LCD screen, delivering clear visual feedback for all inputs and outputs. Podcasters and streamers will appreciate built-in loopback functionality with a dedicated mix knob for balancing live inputs and computer playback. Bus-powered operation ensures maximum portability in a compact, rugged design.

Audio Quality

Equipped with the same ESS Sabre32 Ultra™ DAC technology found in interfaces costing thousands, the M6 delivers pristine sound quality with exceptional dynamic range and ultra-low noise performance.

• ESS Sabre32 Ultra™ DAC technology for superior analog sound
• Converter technology used in high-end professional interfaces
• Measured 120 dB dynamic range on main outputs
• Measured -129 dBu EIN on microphone inputs
• ESS-driven headphone outputs rival dedicated headphone amplifiers

Speed and Low Latency

Expertly engineered USB drivers deliver class-leading performance, providing ultra-low 2.5 ms round-trip latency at 96 kHz with a 32-sample buffer for seamless monitoring through your computer.

Advanced Metering

The M6 is the only audio interface in its class with a full-color LCD featuring detailed level meters for every input and output, ensuring optimal recording and mixing levels at all times.

Loopback for Streaming and Podcasting

Built-in loopback channels allow you to route computer audio back into your host software and mix it with up to four microphones or instruments, making live streaming and podcast production simple and professional.

A/B Monitor Switching

Connect two pairs of studio monitors and instantly switch between them with the push of a button to accurately reference your mixes on different speaker systems.

Stand-Alone Operation

With the optional international DC power adapter connected, the M6 can operate without a computer, allowing direct monitoring of live inputs such as microphones, guitars and keyboards.

A Tradition of Engineering Excellence

Decades of award-winning engineering for chart-topping music, major tours, television productions and blockbuster films are built into every MOTU audio interface.

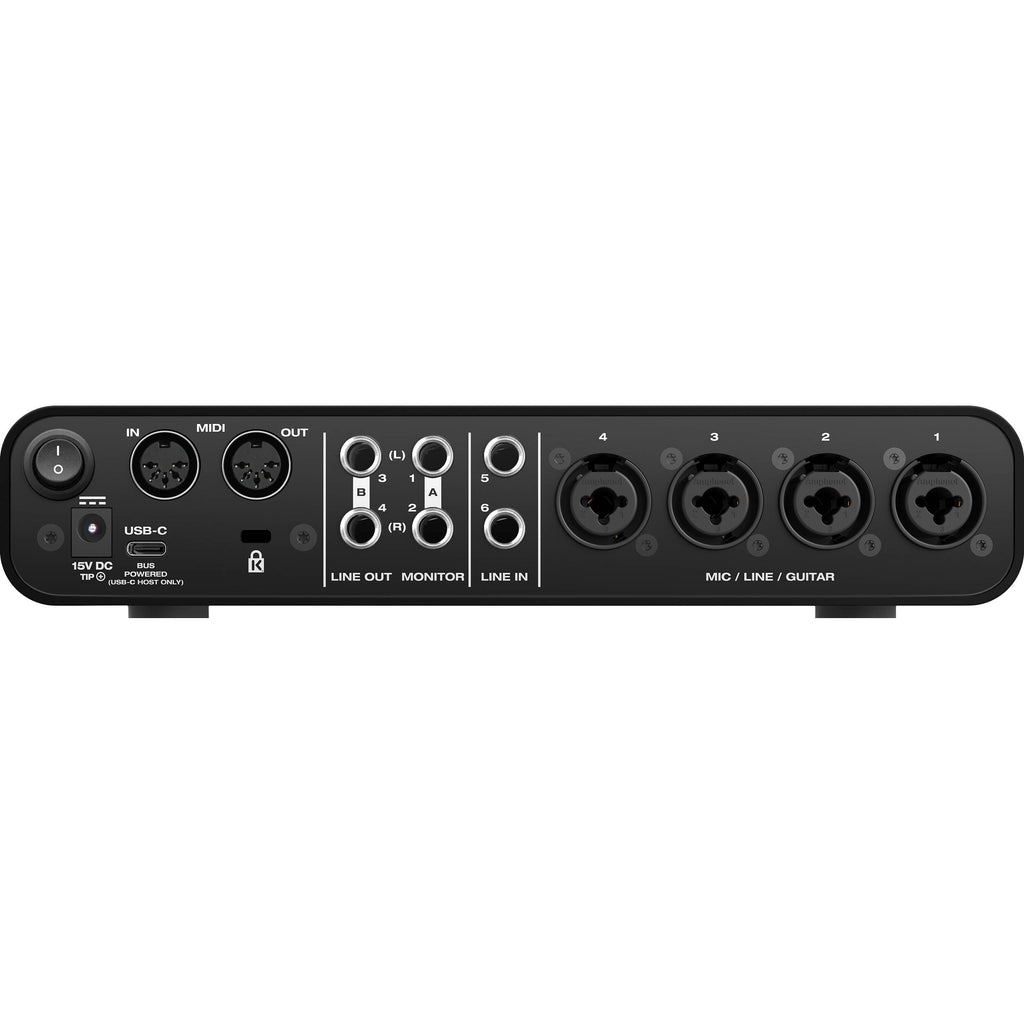

I/O Configuration

• 4 x mic/line/Hi-Z guitar inputs
• 2 x balanced 1/4-inch line inputs
• 4 x balanced 1/4-inch TRS outputs
• 2 x stereo headphone outputs with volume control
• MIDI I/O
• USB-C connection (compatible with USB Type-A)

Analog Specifications

• 120 dB dynamic range on outputs
• -129 dBu EIN on microphone inputs

Connectivity

• Bus-powered USB-C operation
• Optional DC power adapter
• Compatible with USB Type-A (power adapter required)
• Windows driver support
• Optional Mac driver
• iOS compatibility with Lightning adapter

Feature Highlights

• Plug-and-play operation
• Hardware (direct) monitoring
• Independent 48V phantom power
• A/B monitor switching
• Stand-alone operation with power adapter
• Rugged metal construction
• 44.1 kHz to 192 kHz sample rates

System Requirements

• macOS 10.11 or higher
• Windows 10 or higher
• iOS 9 or higher

Included Production Software

Start making music immediately with included Performer Lite and Ableton Live Lite software, plus hundreds of loops, one-shots and sounds from leading sample developers.

MOTU Performer Lite

Performer Lite provides everything you need to record, edit, mix, process and master your music, with over 100 virtual instruments, dozens of effects plug-ins and comprehensive MIDI and audio tools.

Ableton Live Lite

Live Lite 11 delivers Ableton’s essential workflows, instruments and effects, making it easy to record, perform and produce music with intuitive hands-on control.

100+ Virtual Instruments

Includes a wide range of acoustic and electric pianos, guitars, basses, drums, organs, synths, orchestral instruments, choirs and world instruments.

Loops and Sounds

Includes 6 GB of royalty-free loops and sample packs from Big Fish Audio, Lucidsamples and Loopmasters, allowing you to build tracks quickly across dozens of musical styles.
