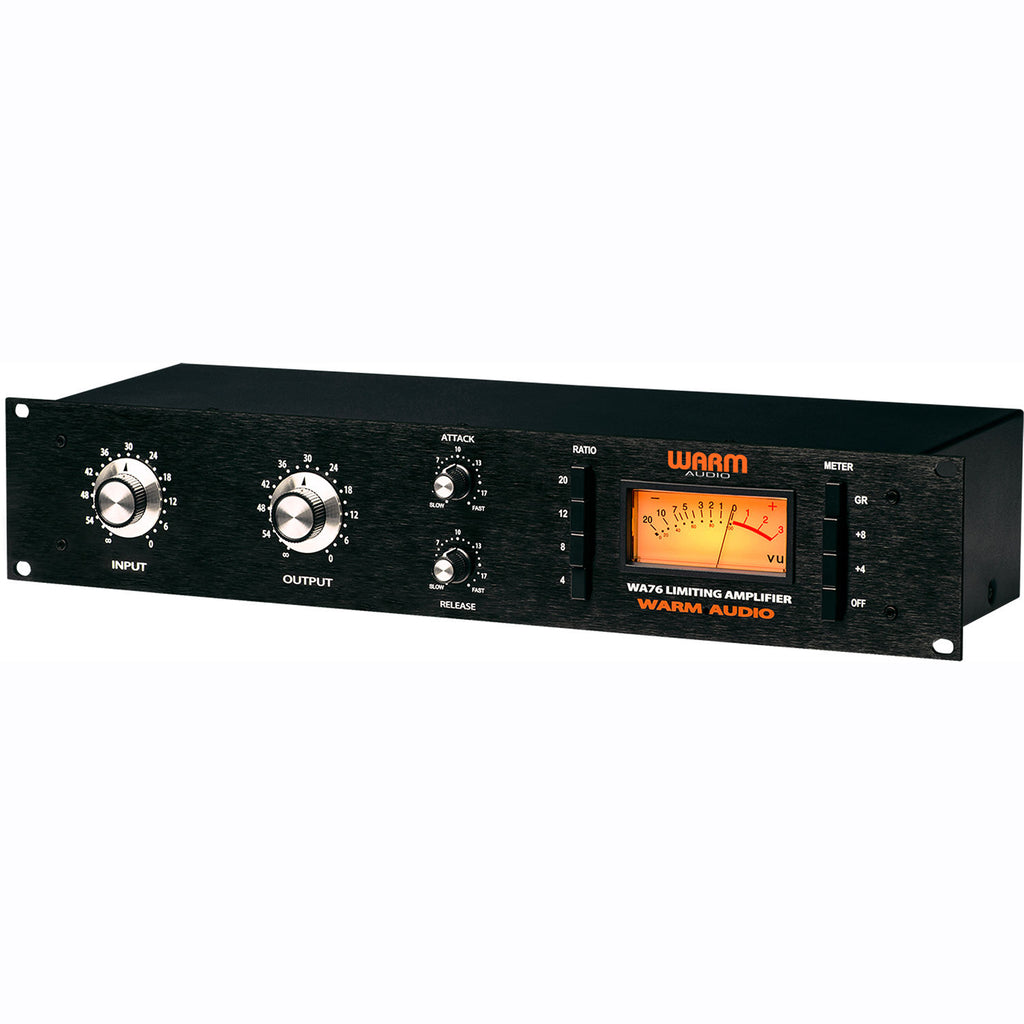

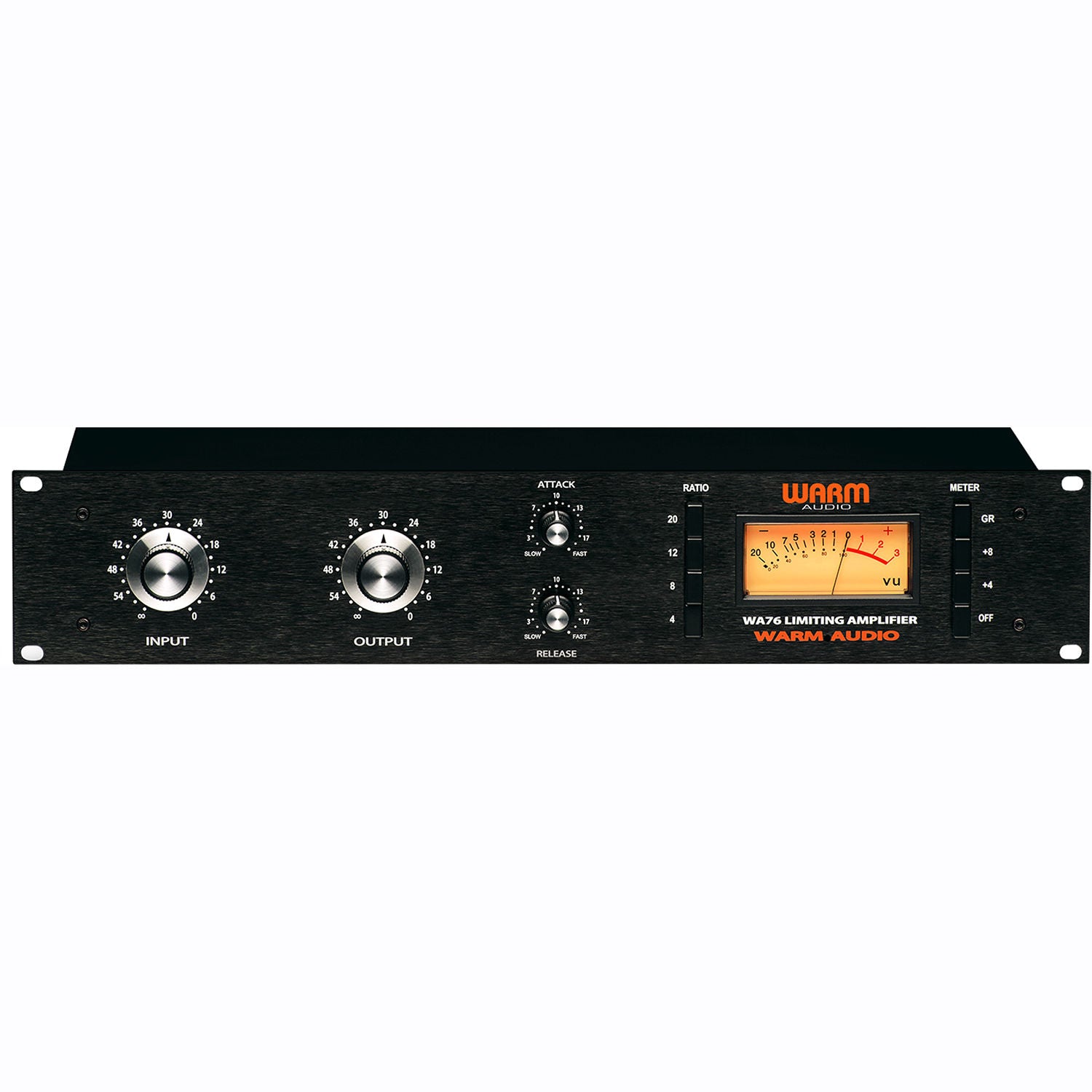

Warm Audio WA76 Limiting Amplifier

The WA76 from Warm Audio is a modern reproduction of the legendary 1176 Revision D limiting amplifier. Built with a completely discrete signal path and authentic CineMag transformers based on the original Reichenbach Engineering design, it stays true to the iconic circuitry that defined countless recordings. The original 1176 was a groundbreaking achievement — the first true peak limiter with fully transistor-based circuitry, ultra-fast attack, and an unmistakable signature character. This modern reproduction even includes the famous “all buttons in” mode that engineers have cherished for decades.

• True to the classic 1176 compressor in design and performance

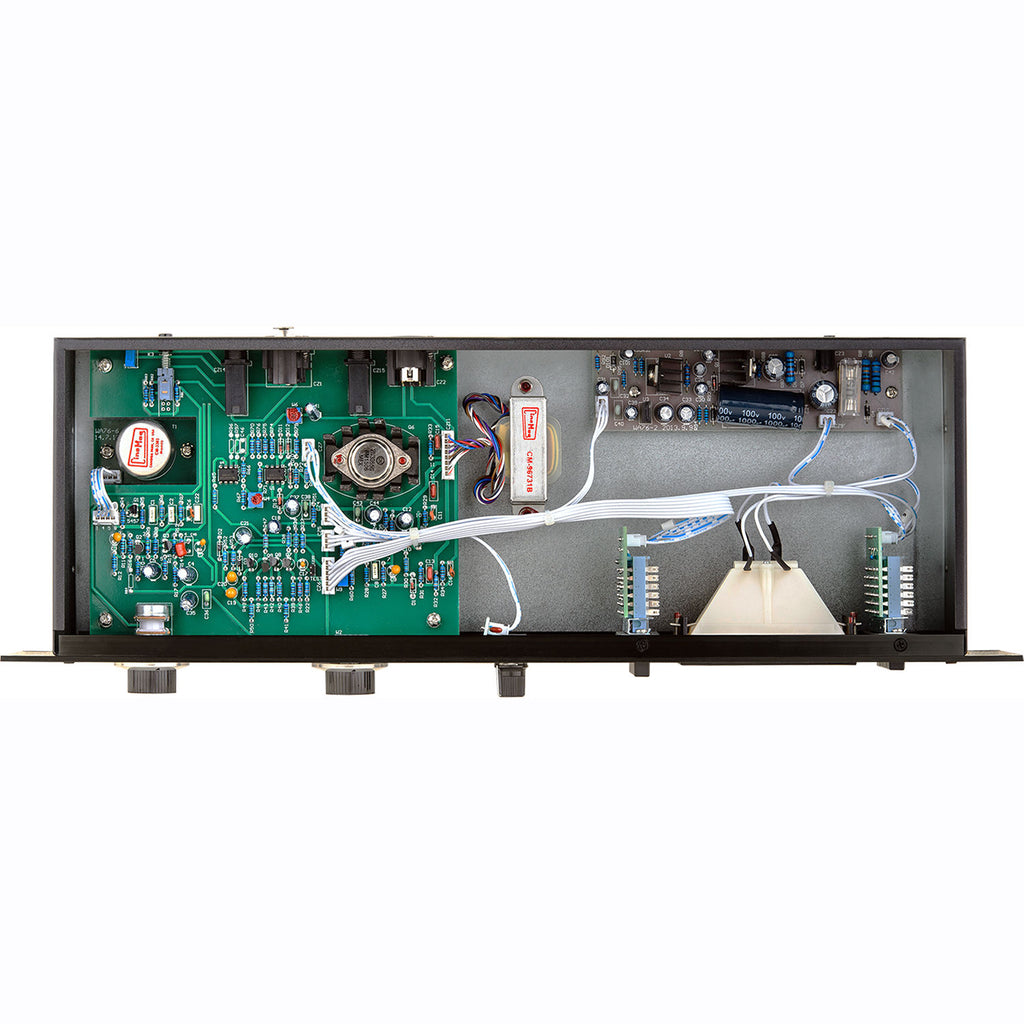

• Completely discrete signal path
• Modeled after the iconic Revision D
• USA-made CineMag input and output transformers
• Supports the classic “all buttons in” ratio mode
• Ultra-fast attack time

What Warm Audio Says...

The WA76 faithfully recreates one of the fastest and most aggressive studio compressors ever made — famous for ultra-responsive dynamics control and unmistakable analog grit. Used endlessly on vocals, drums, guitars, bass, synths, and more, its sound can be heard on legendary recordings by artists such as Sting, Jack White, John Mayer, Michael Jackson, Coldplay, Foo Fighters, Timbaland, and countless others.

Fast & Powerful with Unmistakable FET Grit

The original 76-style compressor is revered for its speed, flexibility, and the rich harmonic coloration achieved by driving its FETs and transformers. Whether you need tight dynamic control, razor-sharp attack, smooth release curves, or the explosive coloration of the classic “All-Buttons-In” mode, the WA76 delivers the same revered performance of vintage Revision D units.

What You Need to Know

Like the classic 76-style compressors, the WA76 includes all the essential controls for a complete professional dynamics-processing experience.

Output Control: Adjusts the amount of makeup gain applied to the outgoing signal, from 54 dB down to 0 dB. Turning clockwise increases level—monitor your DAW or interface to avoid clipping.

Input Control: Sets the signal level entering the WA76 and effectively determines the compression threshold. Higher input levels result in more compression or limiting, displayed on a 54 dB to 0 dB scale.

Attack & Release: Attack determines how quickly the compressor begins compressing once the signal crosses the threshold. Release determines how quickly it stops compressing and returns to normal operation.

Ratio Buttons: Select the compression ratio. For example, at 4:1, the input must exceed the threshold by 4 dB for the output to increase by 1 dB. Higher ratios — such as 12:1 or 20:1 — result in heavier gain reduction and more aggressive dynamic control.
