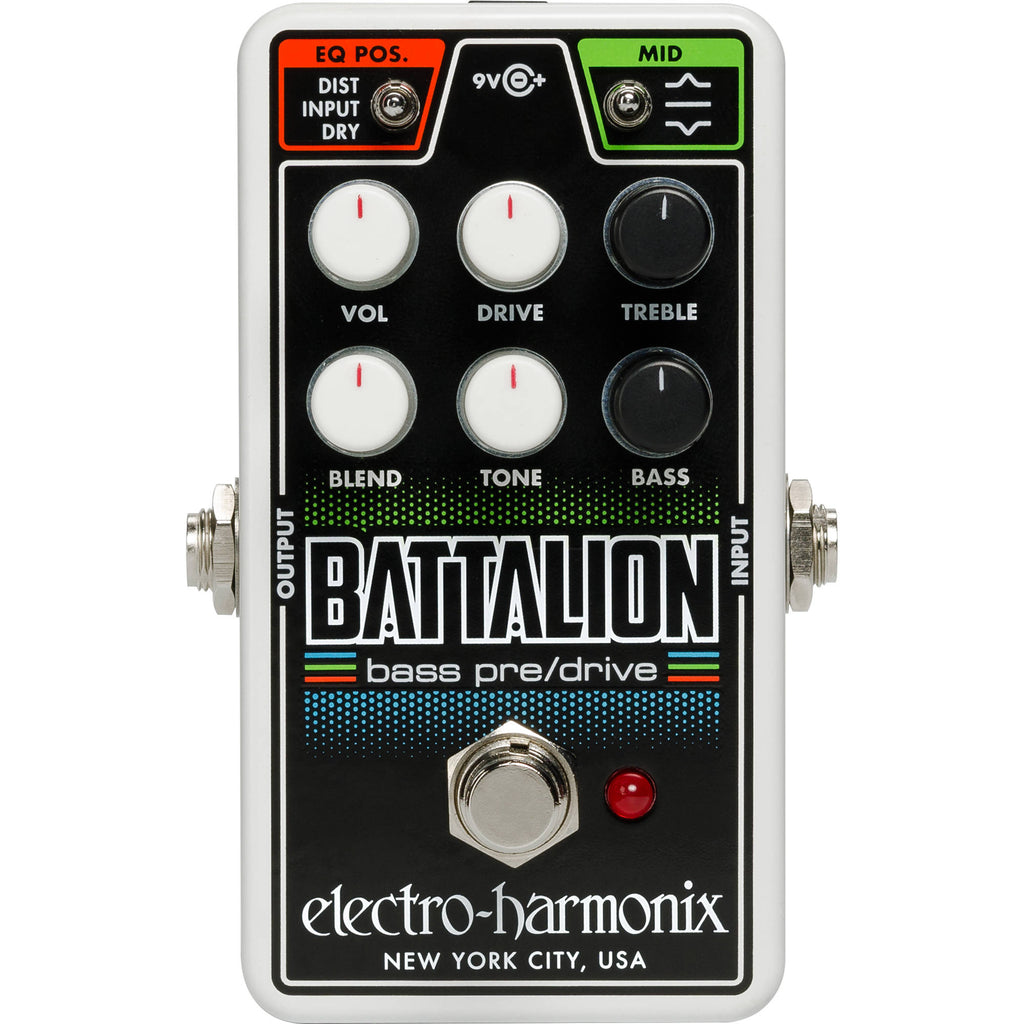

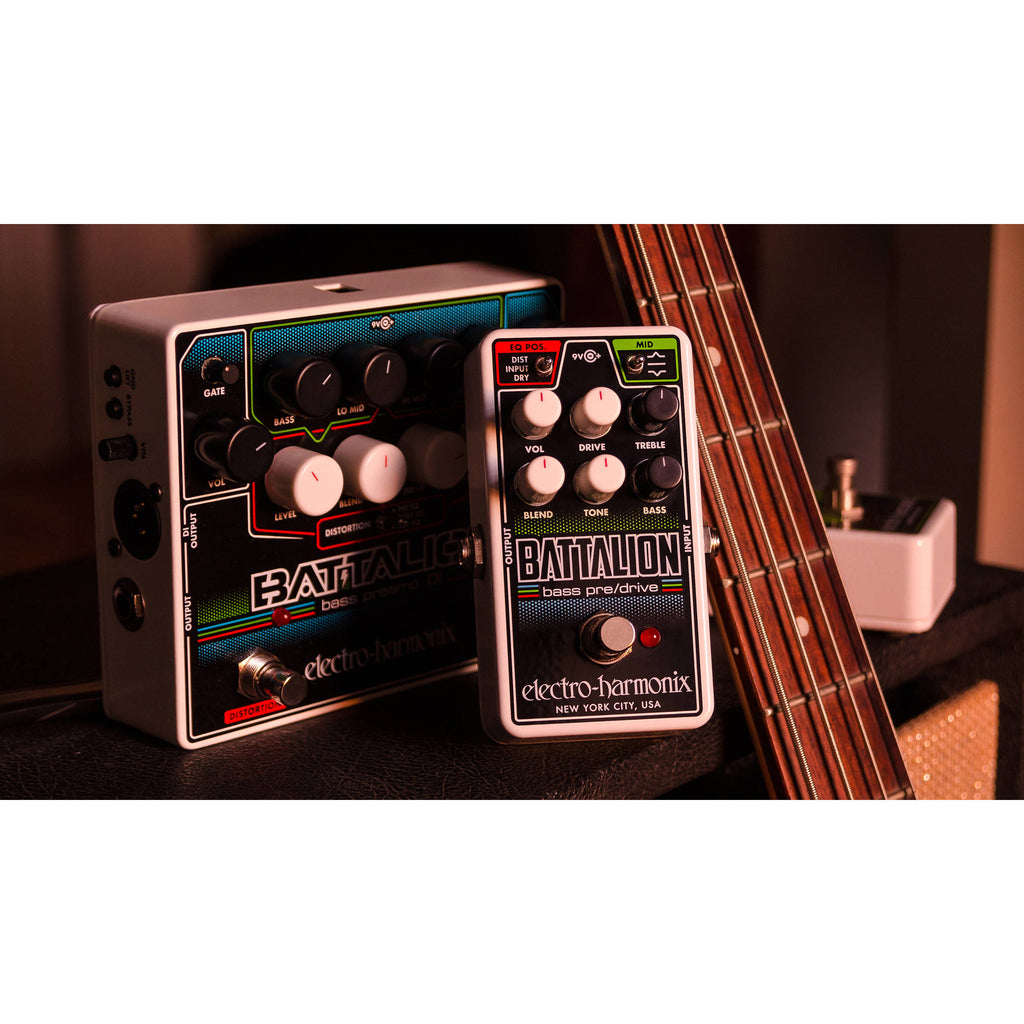

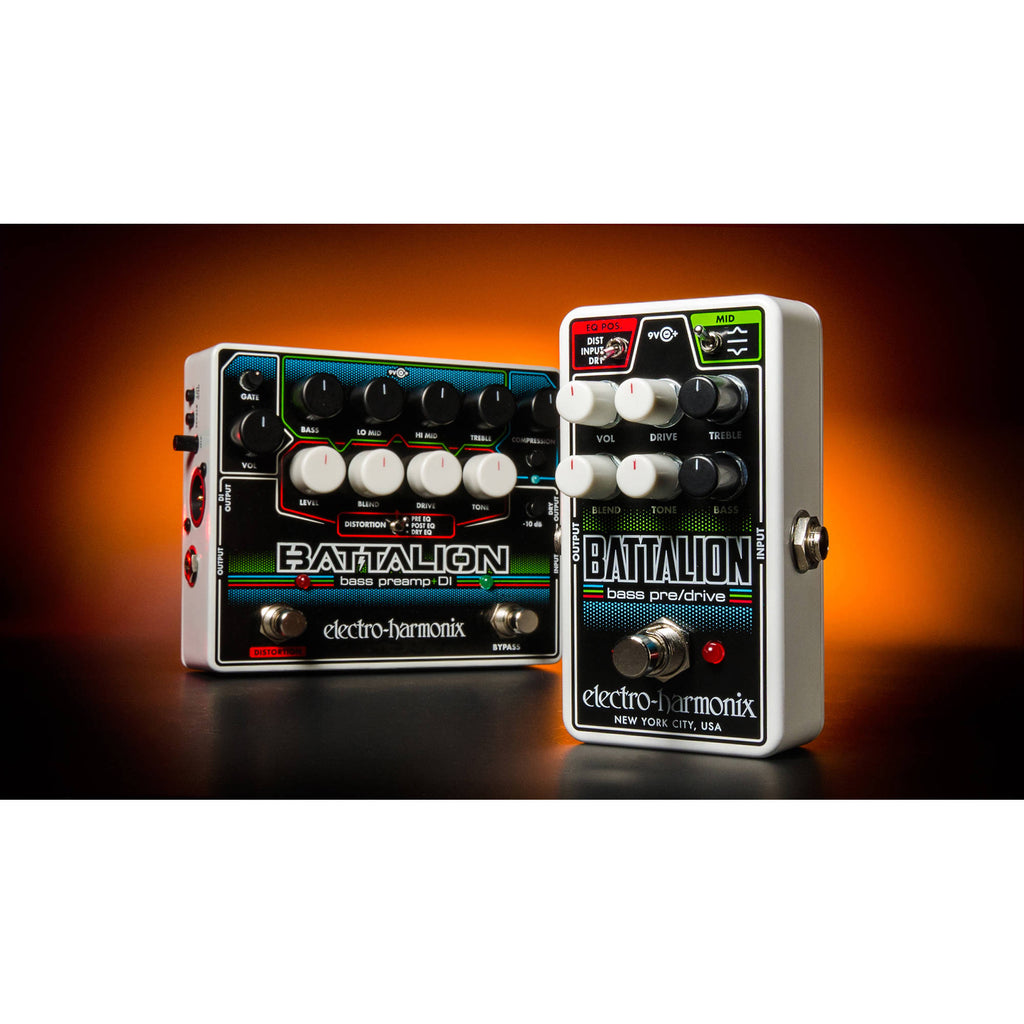

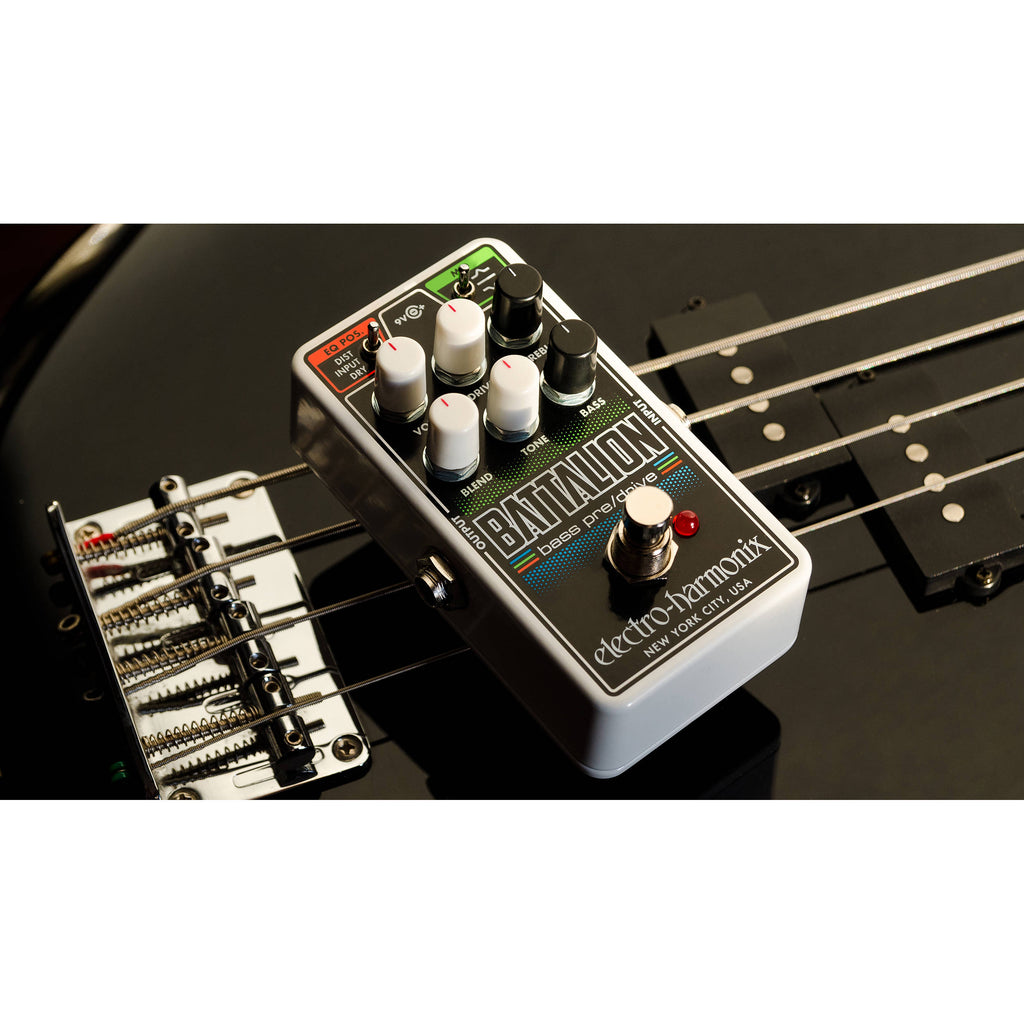

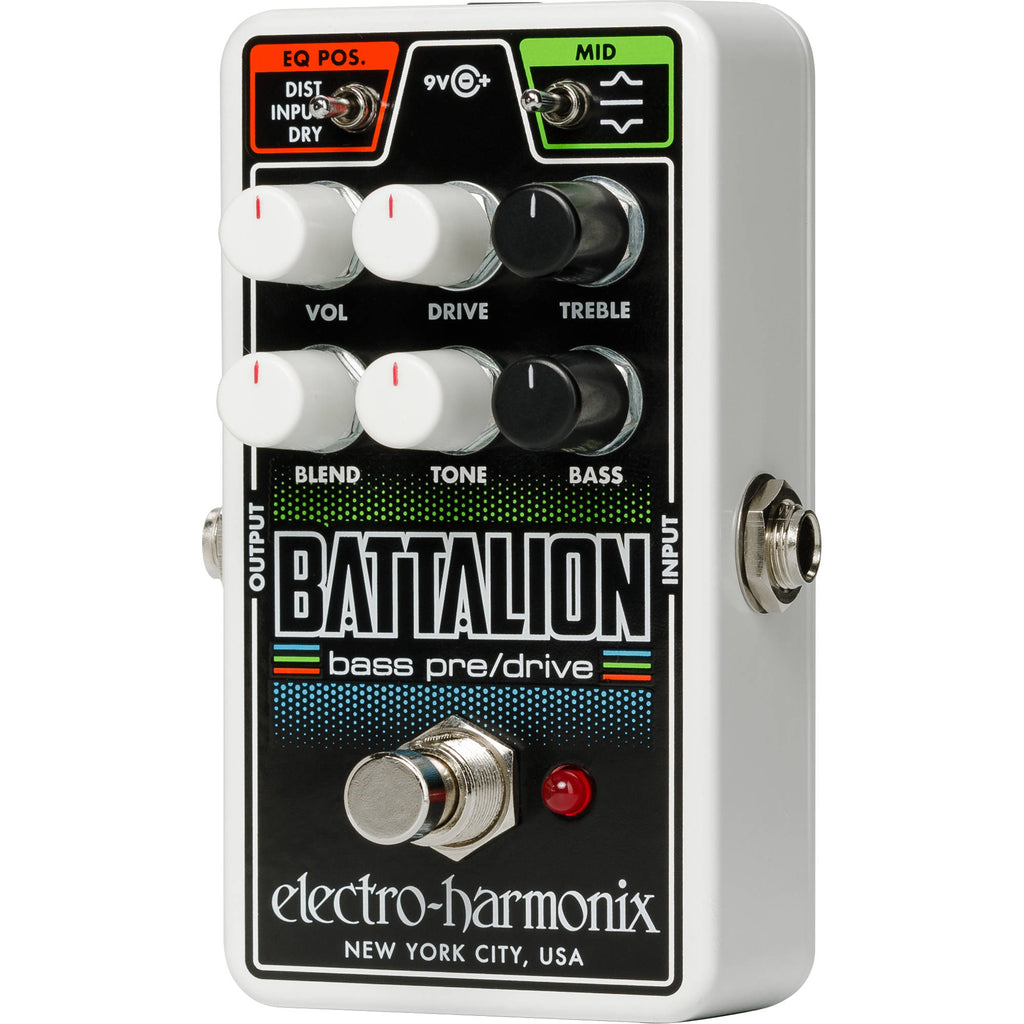

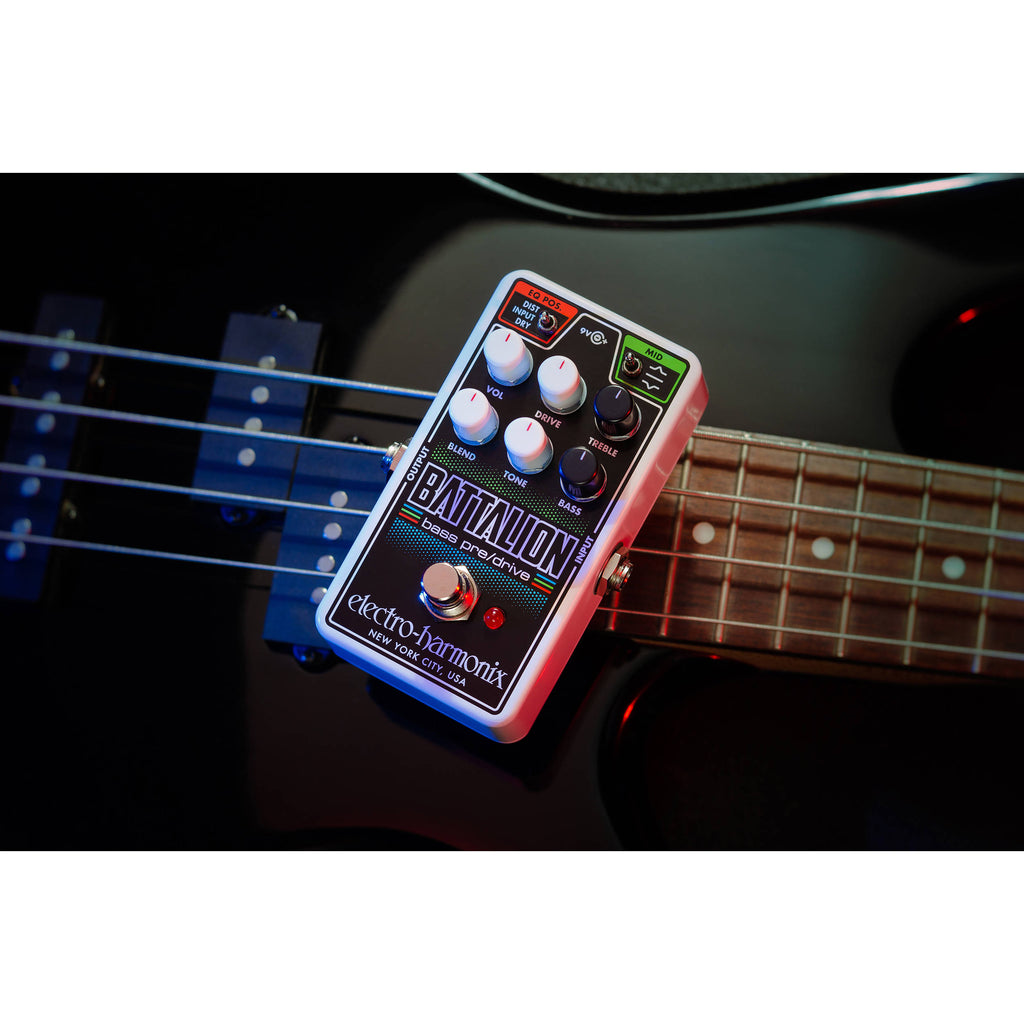

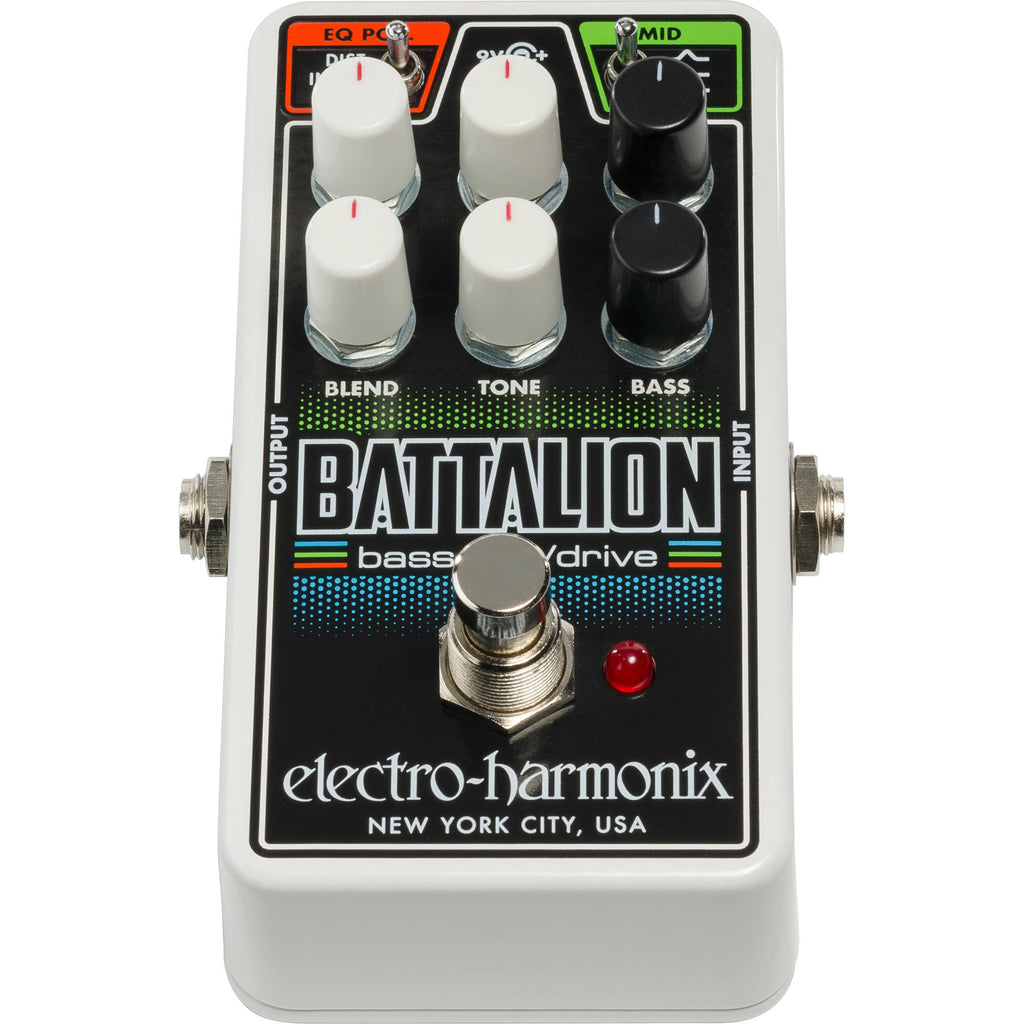

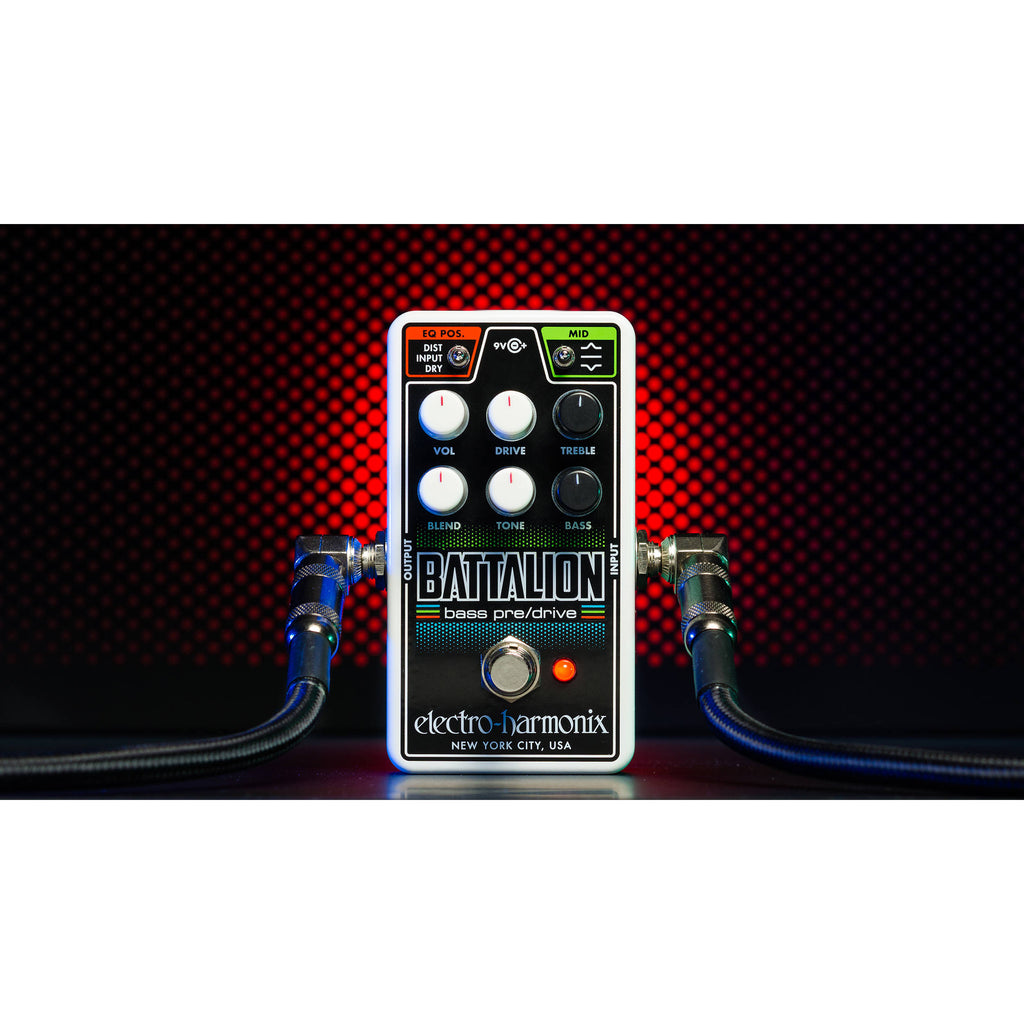

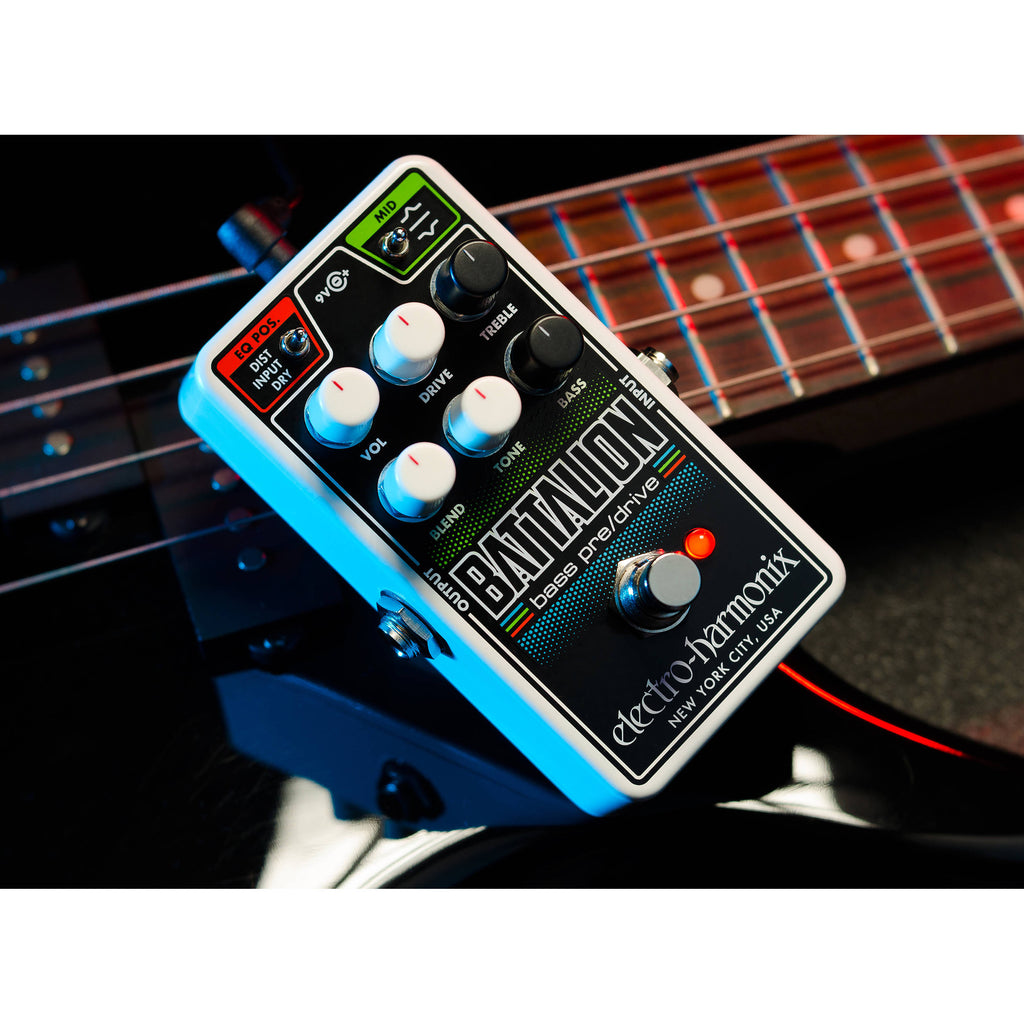

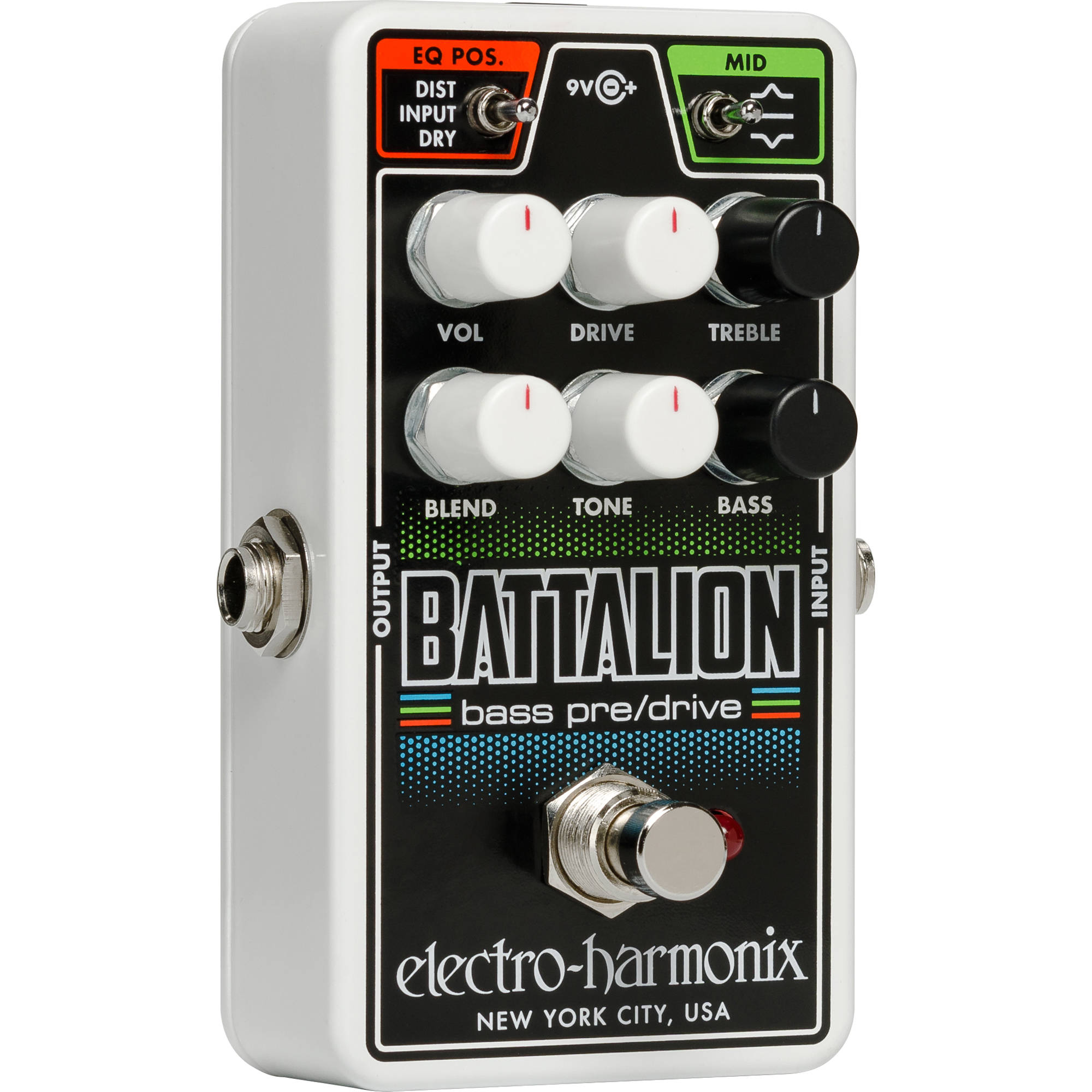

The Electro-Harmonix Nano Battalion is a bass preamp and overdrive pedal with all-analog circuitry that delivers a formidable arsenal of bass tones in a compact, tour-tough chassis. The Nano Battalion's big sibling is very popular at Music Experience; and by popular demand, Electro-Harmonix is now offering the Battalion's tonal onslaught in a pedalboard-friendly, single-wide stompbox form factor. The Nano Battalion's versatile MOSFET drive circuit serves up everything from subtle overdrive to heavy, saturated distortion, while its 3-band EQ (with three EQ position modes) gives you maximum sound-shaping control and flexibility. The Nano also offers three signal flow modes that yield unique tonal variations.
The Nano Battalion's 3-band EQ includes Treble (1kHz knee) and Bass (200Hz knee) shelving boost and cut, plus a Mid switch that provides 9dB of boost or cut at 500Hz. Three signal flow modes determine where the EQ is applied. In Distortion mode, the EQ comes after the distorted signal and has a powerful effect on its timbre, while the clean signal is not affected. In Input mode, the EQ comes first in the signal path, affecting both the clean and distorted signals. Boosting frequencies in this mode can drive the distortion into higher saturation. In Dry mode, the EQ affects the clean signal but not the distorted signal.

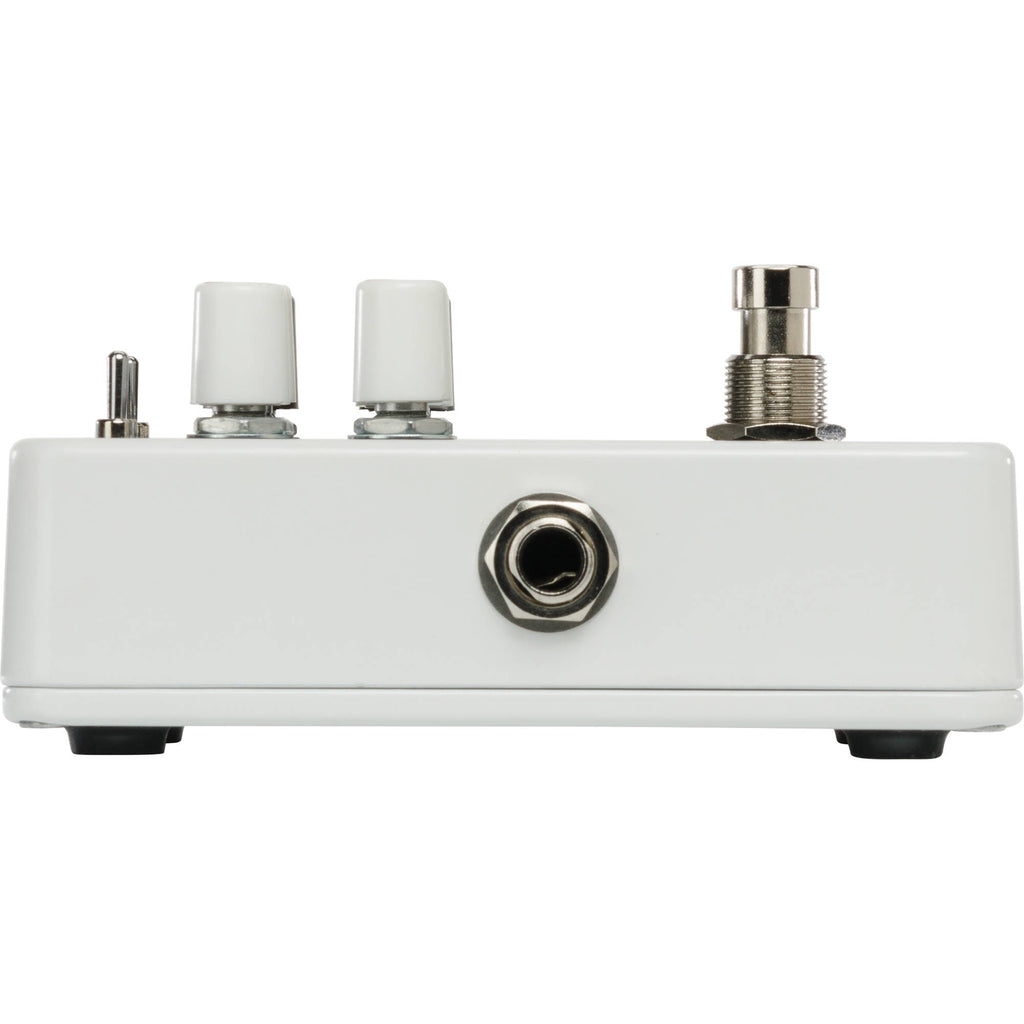

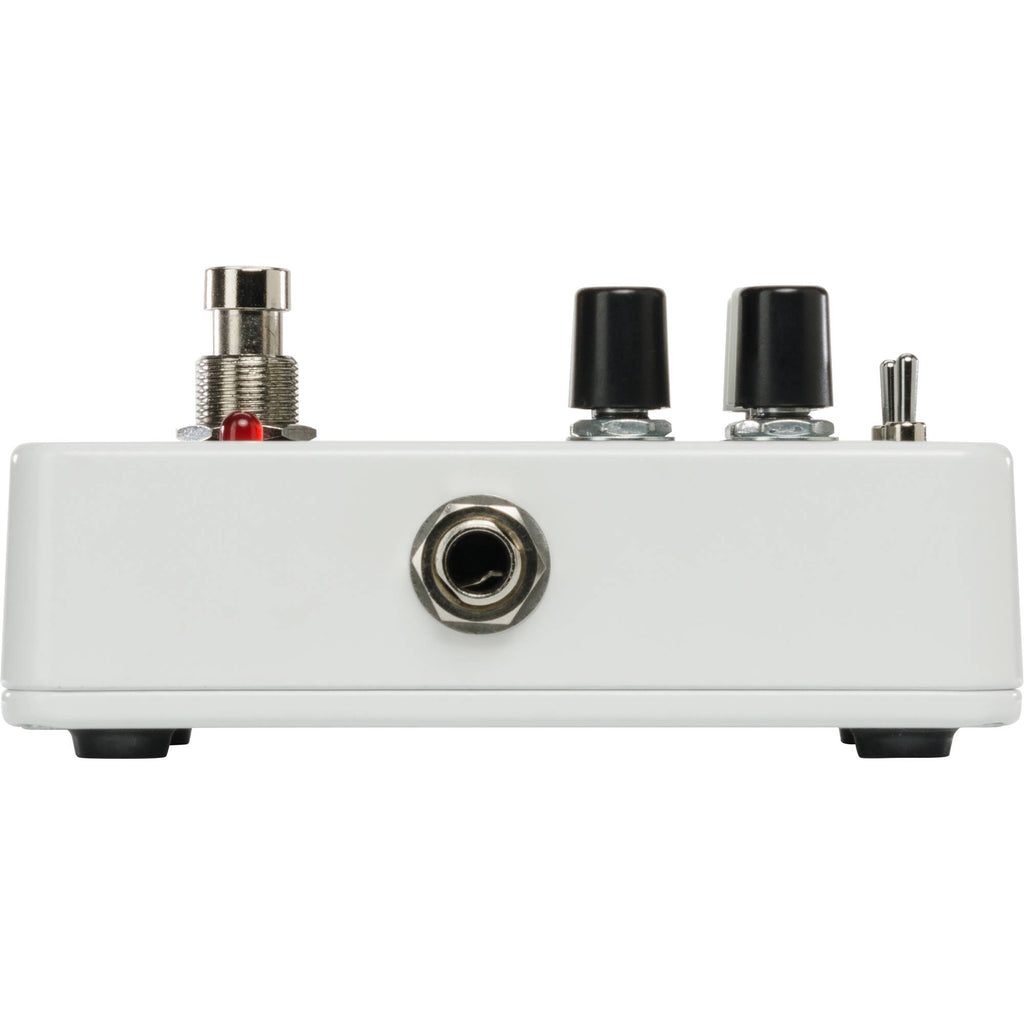

The Nano Battalion is fitted with ¼" input and output jacks. When a TS cable is plugged into the output jack, it delivers an unbalanced signal. When a TRS cable is plugged in, it outputs a balanced signal suitable for direct injection into a recording console or audio interface. Shrinking down a masterful bass preamp/drive pedal like the Battalion invariably involves compromises; but with the Nano Battalion, Electro-Harmonix made wise decisions. To save space, they left out the Battalion's compression circuitry — a smart move, considering many bassists already have a compressor pedal. But they managed to pack the massive punch and tonal richness of the original into a compact stompbox that will fit in your gig bag. Impressive, indeed.
The all-analog circuitry of the EHX Nano Battalion provides an amazing array of bass tones in a sturdy, compact package. A versatile MOSFET drive circuit that can deliver everything from subtle, light overdrive to fully saturated distortion forms the pedal’s core. The Nano Battalion features a three-band EQ with three EQ position modes for maximum flexibility and sound shaping control. The three-band EQ includes Treble (boost/cut above 1kHz) and Bass (boost/cut below 200Hz) controls, plus a Mid switch which provides a 9dB boost or cut at 500Hz. Three signal path options determine where the EQ is applied. In Distortion Mode the EQ comes after the distorted signal and has a powerful effect on its timbre while the clean signal is not affected. In Input Mode the EQ comes first in the signal path affecting both the clean and distorted signals. Boosting frequencies in this mode can drive the distortion to a more saturated state. In Dry Mode the EQ affects the clean signal, but not the distorted signal. The Nano Battalion includes a ¼” input jack and ¼” output jack. When a normal TS cable is connected to the output jack it delivers an unbalanced signal. When a TRS cable is plugged into this jack, it outputs a balanced signal that can go directly into a mixing console or recording interface. The Nano Battalion is a powerful, versatile tool for bass players.
An amazing array of bass tones!
