The Electro-Voice ETX-15P packs concert-quality sound into a tidy, easy-to-use powered speaker. Its efficient Class D amplifier pumps 2,000 watts through high-sensitivity transducers, providing you with full-range sound and earth-shaking output. And everyone will hear it, thanks to the consistent coverage provided by EV's patented Signal Synchronized Transducer (SST) waveguide design. Digital signal processing puts a range of performance optimization and protection tools at your fingertips. And whether you mount it on a tripod or use it as part of an array, the Electro-Voice ETX-15P's rugged wood enclosure will easily tackle the rigors of touring.
The ETX-15P boasts a two-channel mixer with XLR/TRS inputs for your mixing console, instruments, and/or dynamic microphones. Flexible gain controls, adjustable delay, peak and temperature limiters, automatic output reduction, and a plethora of other useful features make calibrating your system a piece of cake. The ETX-15P is linkable to another speaker or sub, and adding a subwoofer is effortless, thanks to a programmable crossover with intuitive presets.
It's easy to achieve a great-sounding performance with the Electro-Voice ETX-15P. Its high-sensitivity transducers exhibit an 55Hz-20kHz frequency response for true full-range sound. FIR-Drive uses DSP to optimize transducer linearity. The ETX-15P's high-efficiency Class D power amplifier yields a maximum SPL of 135dB — more than enough to shake the venue. QuickSmartDSP provides effective system optimization with presets for your application (Music, Live, and Speech) and location (Tripod, Monitor, Array, Wall, and Suspend). You can also tailor your sound to the venue with Room EQ. And EV's patented Signal Synchronized Transducer (SST) waveguide design provides consistent coverage for your entire audience.
Electro-Voice's ETX Series was engineered from the ground for uncompromising performance. At Music Experience, we've found that these speakers deliver the perfect combination of concert-quality sound and critical versatility. Professional musicians, DJs, mobile entertainers, and rental companies looking to put together a high-end PA system will find much to love about the ETX Series. Top-quality components, EV's patented Signal Synchronized Transducer (SST) waveguide design, efficient Class D amplifiers, and onboard performance optimization and protection features combine to deliver precise coverage and world-class sound. On top of that, everything is packed into low-profile tour-grade wood enclosures.

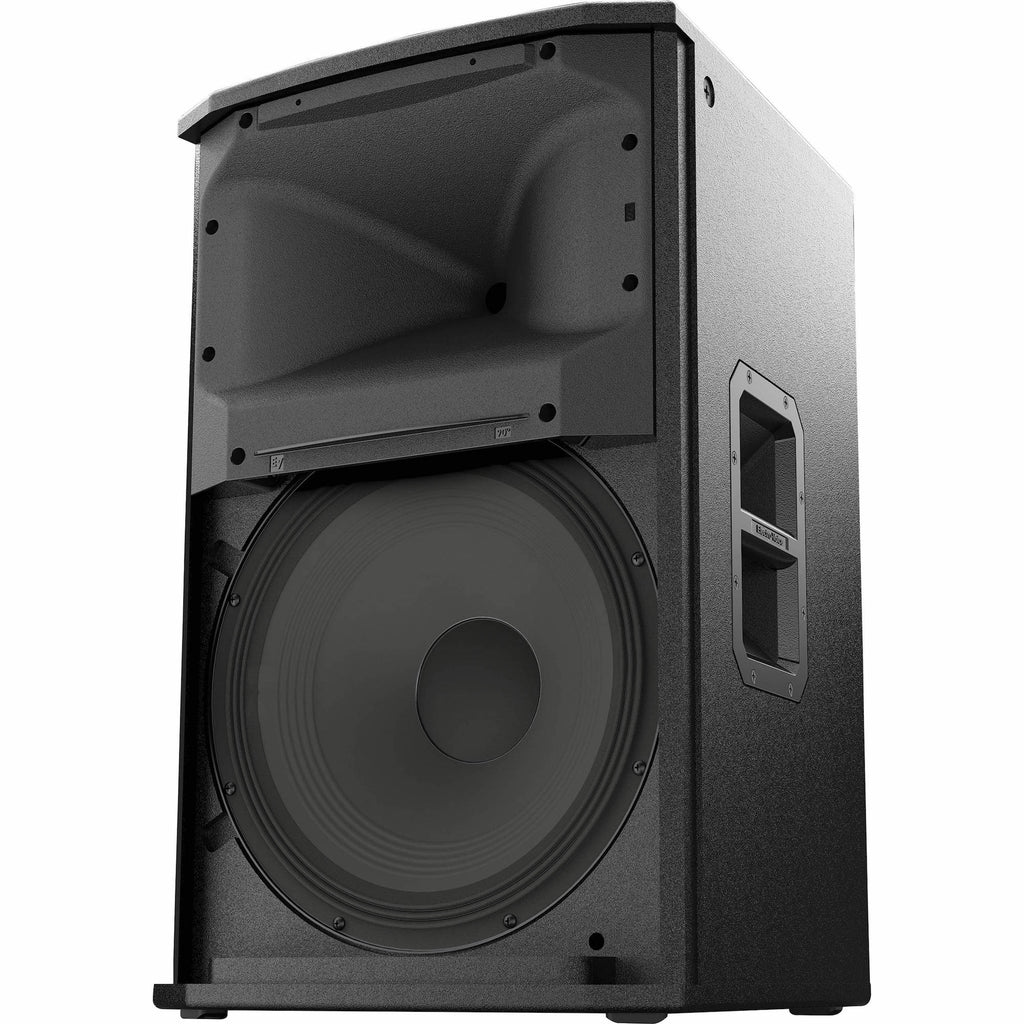

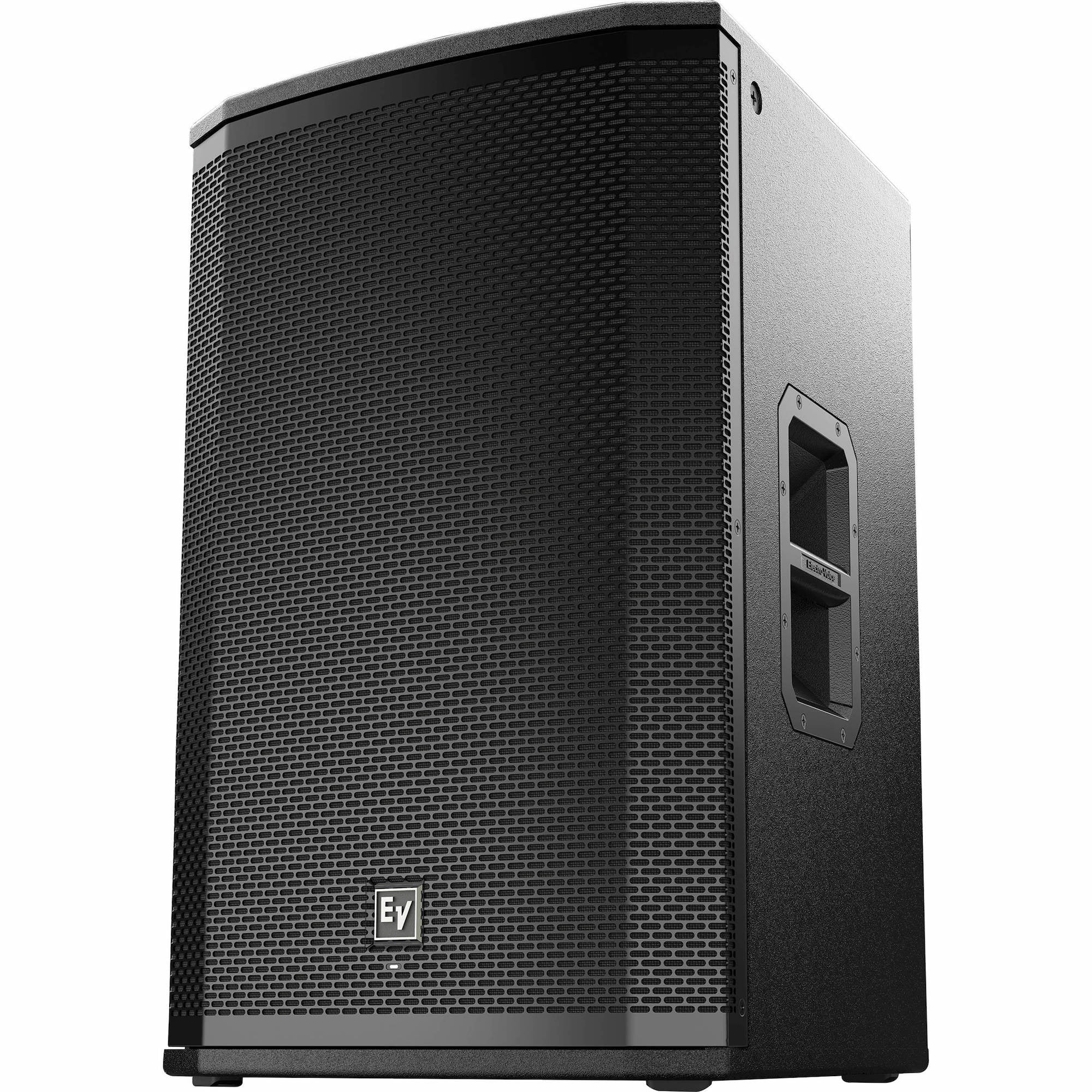

The ETX-15P 15" Portable Powered Loudspeaker from Electro-Voice is a portable powered Class-D loudspeaker that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling. It is capable of up to 2,000-watts of output for a peak SPL rating of up to 135 dB and features a 15-inch woofer and a 1.25-inch titanium high-frequency driver. The speaker's integrated DSP can be controlled via the rear panel LCD and provides EQ, boundary compensation, a limiting function, delay, and more.

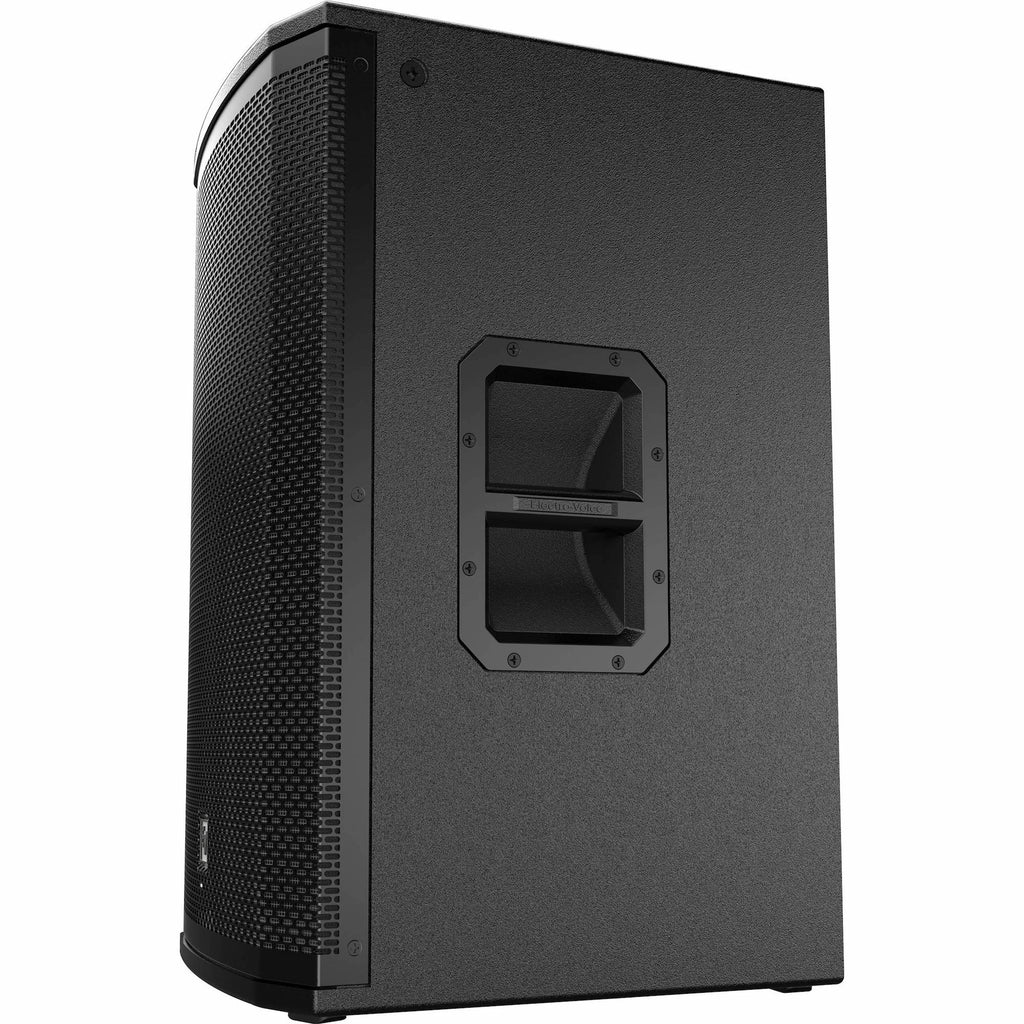

Featuring Electro-Voice's SST waveguide, the EXT-15P has a uniform beamwidth, allowing for even distribution of sound thanks to the time-alignment of the high and low-frequency transducers. Sturdy construction is provided in the form of the die-cast aluminum chassis, pole cup, and handles.

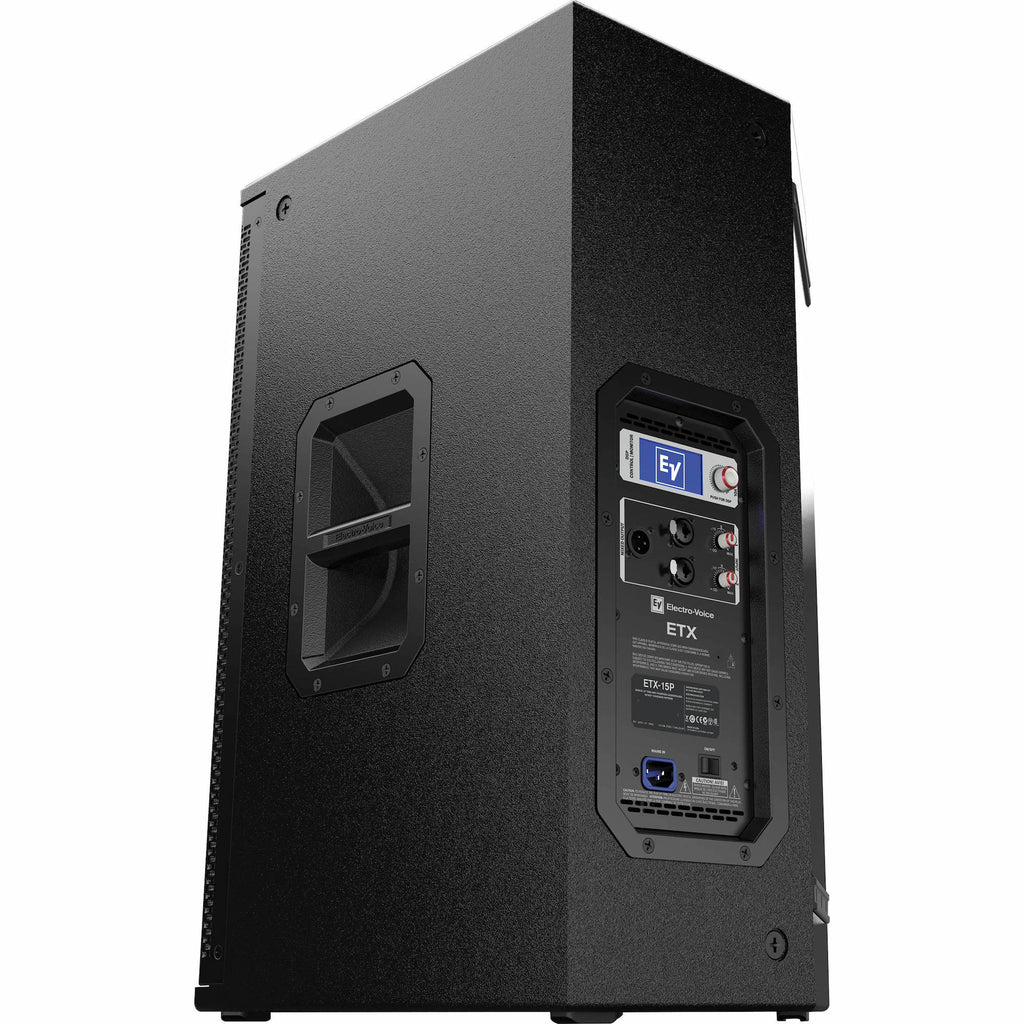

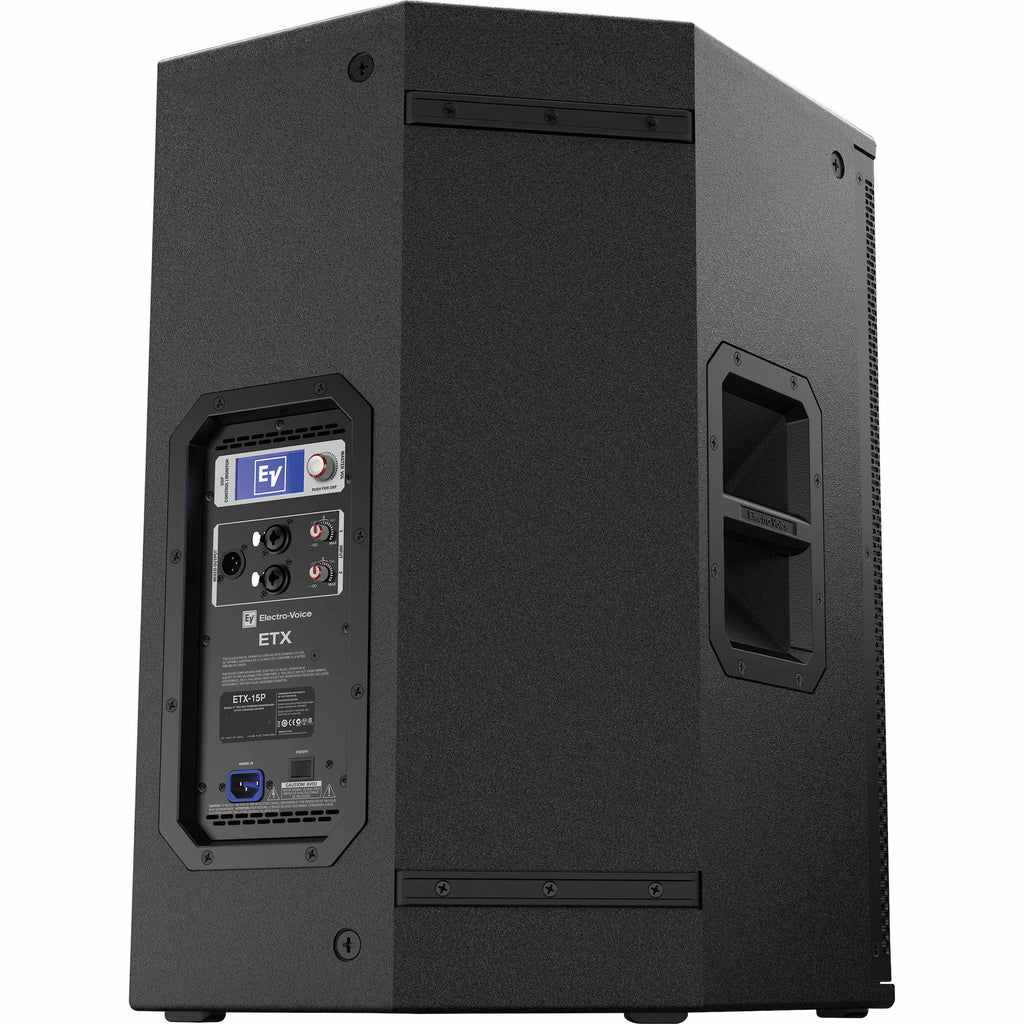

Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure.
|LF Driver Size||1 x 15" SMX2150 woofer|
|HF Driver Size||1.25" DH3-B titanium compression driver|
|Inputs||2 x XLR-1/4" combo|
|Outputs||1 x XLR|
|Signal Processing||FIR-Drive DSP|
|Maximum Peak SPL||135 dB SPL @ 1m|
|Horizontal Coverage Angle||90°|
|Vertical Coverage Angle||60°|
|Enclosure Material||13-ply 18mm Birch plywood with EV coat and 16 gauge steel grille|

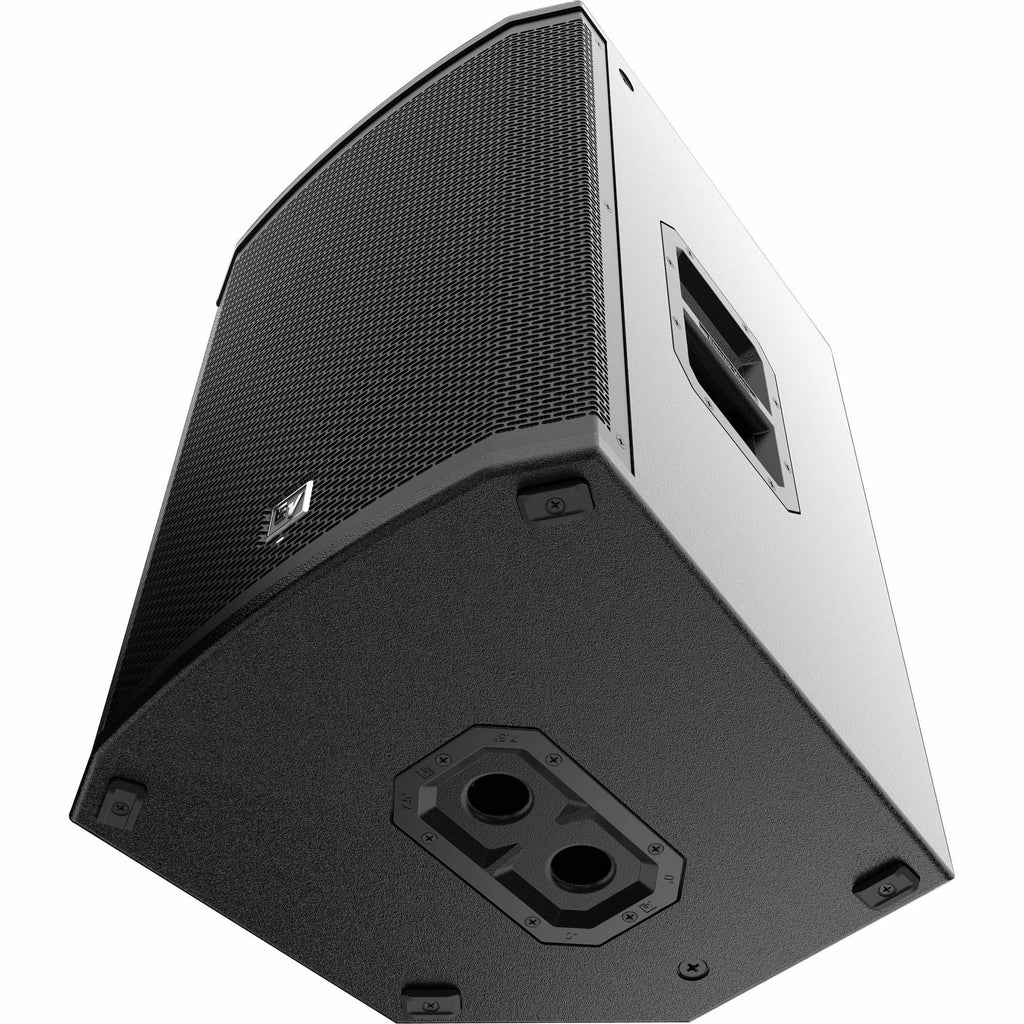

|Mounting Options||Pole, Fly (8 x M10 suspension points)|
|Power Source||Standard IEC AC cable|
|Manufacturer Part Number||F.01U.302.282|
