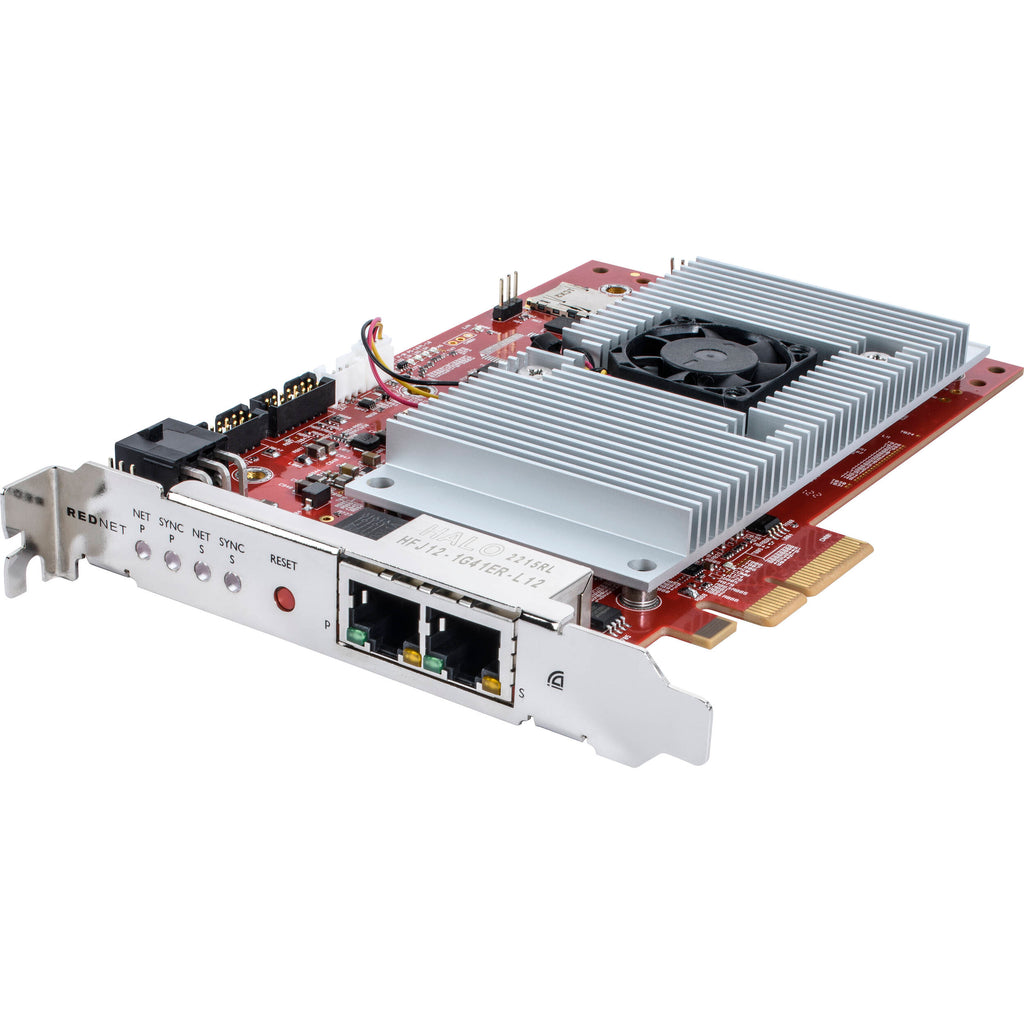

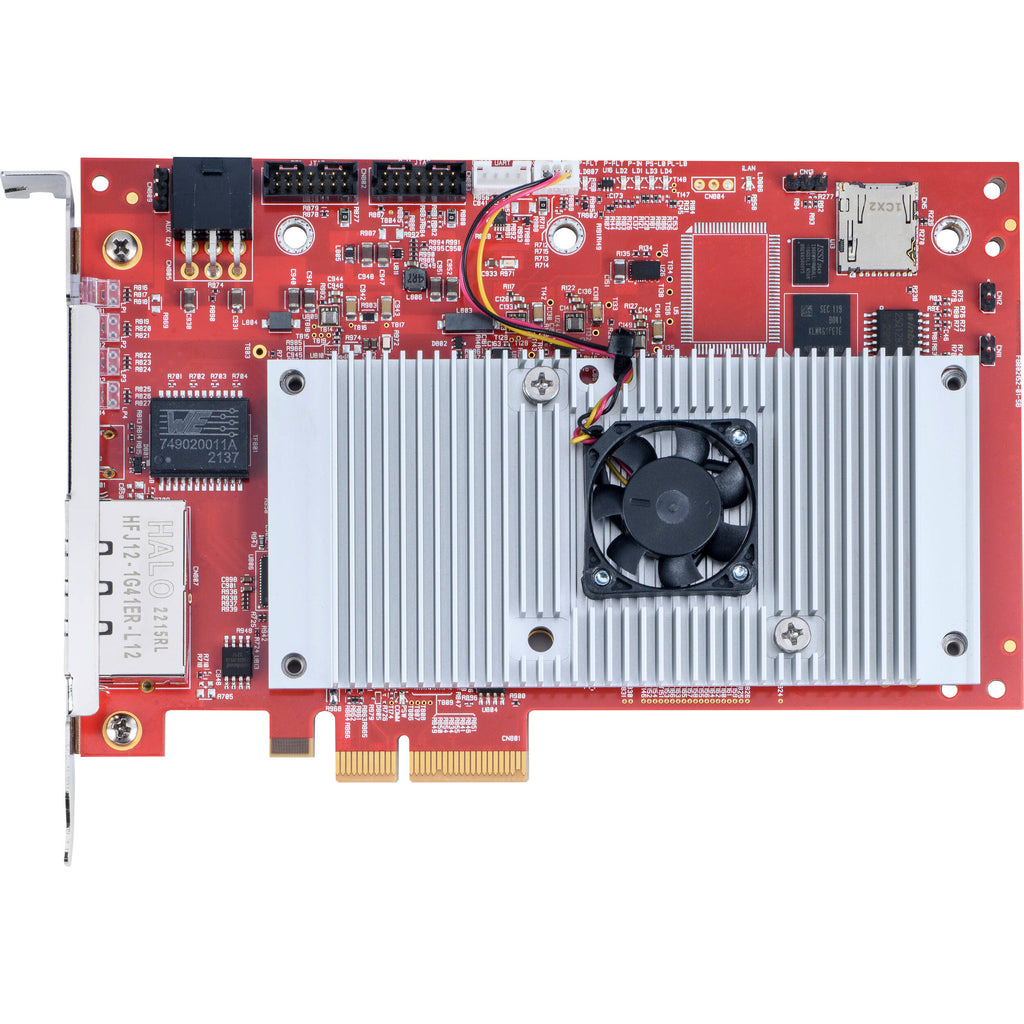

The Focusrite RedNet PCIeNX is a PCIe interface card that delivers 128x128 audio channels simultaneously (at up to 192 kHz) with ultralow round-trip latency. Compatible with Windows and Mac (Intel and Apple Silicon supported), RedNet PCIeNX can be installed in a PCIe slot or Thunderbolt chassis to seamlessly integrate with your existing hardware and accelerate any Dante workflow.

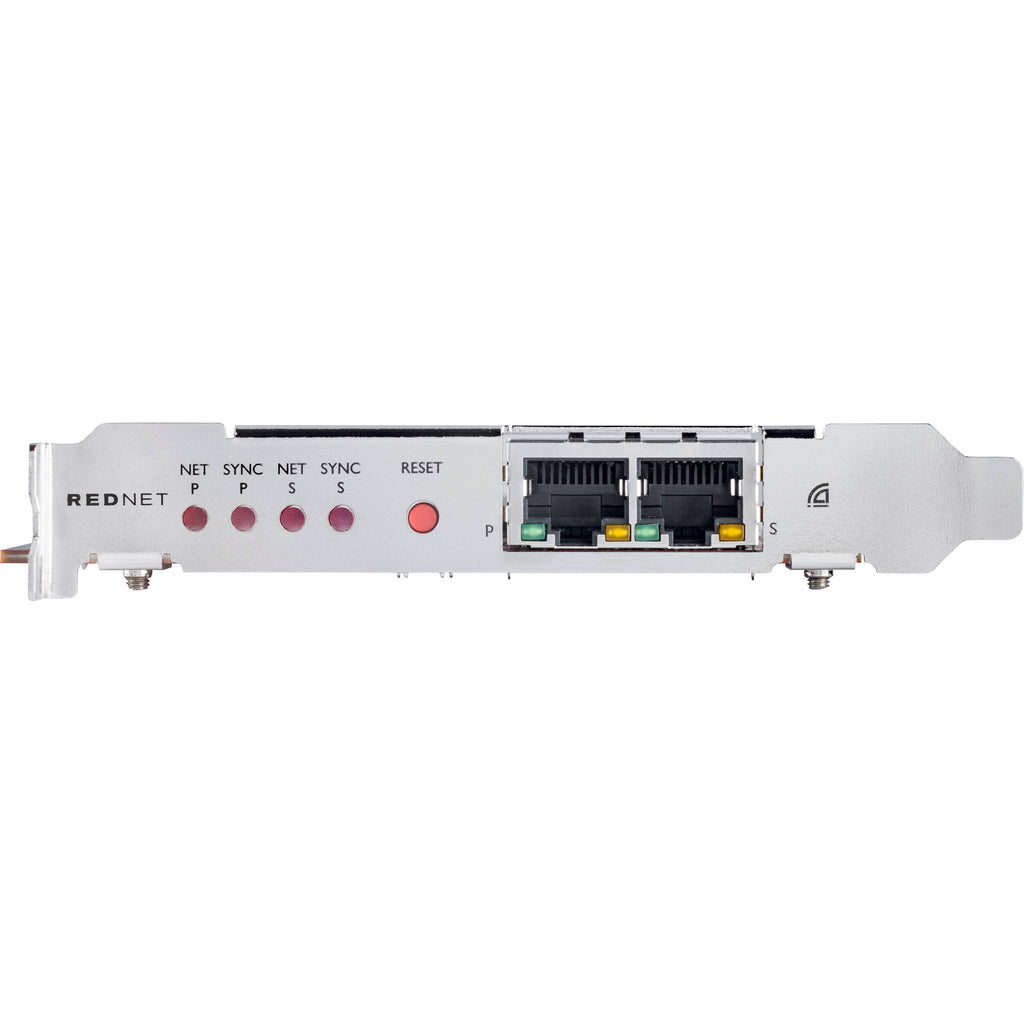

Two Ethernet RJ45 connections offer both switched and redundant mode, providing flexibility for connectivity and the option to have a secondary network for mission-critical situations. Futureproof and designed for reliability, RedNet PCIeNX is backed by a 3-year warranty and Focusrite's award-winning 24/7/365 technical support.

Note: It is possible to upgrade the channel count on RedNet PCIeNX from 128x128 channels to 256x256 channels (44.1 to 96 kHz sample rates only, channel count remains 128x128 at 176.4/192 kHz). This upgrade is available through Audinate's Dante Activator software and requires a license.

Broadcast-Ready with Support for the Latest AoIP Standards

RedNet PCIeNX supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, which makes it perfect for broadcast deployment.

Simple, Integrated Network Control

The integrated network interface simplifies installation and connectivity, allowing for a single-cable connection for audio and network control.

RedNet Control Ready

RedNet PCIeNX works with RedNet Control, which provides a single application for control and monitoring of all RedNet devices on the network.

Flexible Installation

Easily installed in a PCIe slot or Thunderbolt chassis.
