When it comes to traditional subtractive analog synthesis with modern sophistication, the Korg minilogue analog polyphonic synthesizer delivers. It starts with a pair of highly shapable VCOs, which you can shape with a switchable 2-/4-pole lowpass filter, and there's plenty of modulation to go around. At the same time, you can store up to 200 settings, and there are 100 killer presets onboard to fuel your creativity. There's also a built-in tape-style delay effect and an OLED oscilloscope display — something we've never seen on a hardware synth. And that's just the beginning. Between the minilogue's Voice Modes and the onboard 16-step sequencer, you'll be amazed by the sounds you can come up with.
It's tempting to look at a synth like the minilogue and assume that there must be a catch. How could an affordable polyphonic synth like this be truly analog? The answer lies with Korg's ingenuity. To make the minilogue, they had to completely redesign their analog synthesis technology, building a new platform component by component from the ground up. Ultimately, the minilogue features 2 VCOs, 1 VCF, 2 EGs, 1 VCA, and 1 LFO, all completely in the analog realm. You also get cross modulation, oscillator sync, and killer effects including a ring modulator, delay, and a highpass filter, plus an oscilloscope that lets you visualize the results. It's a veritable synthesis playground, and you'll never run out of ways to put it all together.
Before you dive into its Voice Modes or sequencing capabilities, you'll already be impressed by the minilogue's sound-shaping capabilities. For starters, both VCOs include a Shape control, which allows you to dial harmonic content into the three selectable waveforms. Cross modulation, oscillator sync, and ring modulation settings provide further sound-shaping possibilities as well. A sophisticated lowpass VCF section offers 2-pole and 4-pole modes and more than enough resonance, while an envelope generator and an LFO add time-based dynamics to a wide range of parameters. Finally, there's a tape-style delay onboard, which lets you pull off many classic wet and saturated synth sounds.
The fact that the Korg minilogue features four voices is pretty cool to begin with, but what makes this compact analog polysynth so much fun is the way it lets you put those voices to use. Choose from eight distinct voice modes to create fun and unique effects that will thrill even the most seasoned synth pro. Here are the details:
The additional step sequencer is a feature that makes the minilogue one of the most fun keyboards Music Experience synth nuts have gotten their hands on. For one thing, there's virtually no learning curve, so you can dive right in and start creating cool rhythms and patterns from day one. There are two ways to use the sequencer: you can record in real time, or you can program your performance via steps. Real-time recording lets you overdub, allowing you to automate many parameters to create intensely complex patterns. Step recording is perfect for creating phrases and rhythms. What's more, you can easily combine this onboard sequencer with other MIDI and sync-equipped gear such as Volca series modules.

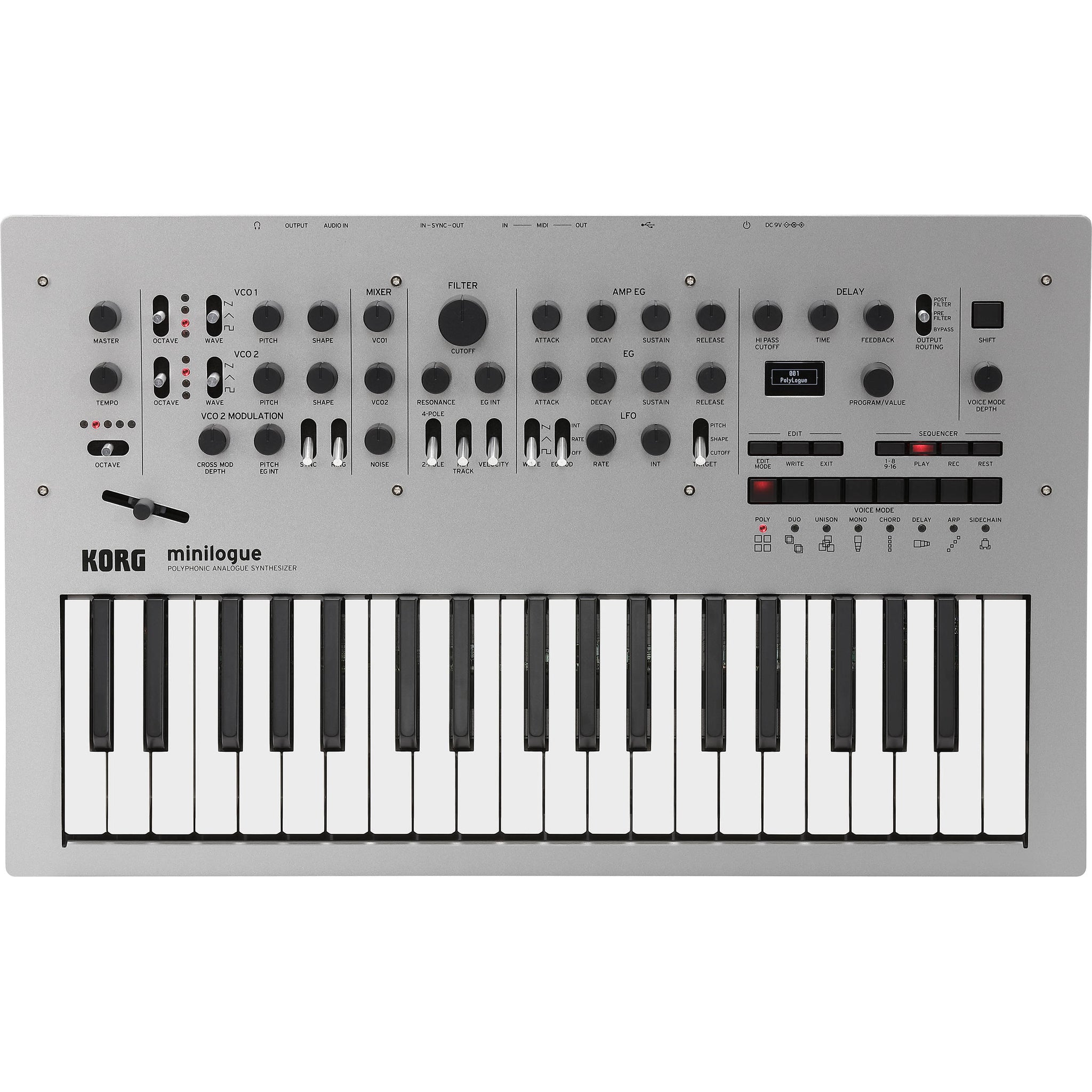

Meet minilogue; the stylish, innovative, 37 slim-key fully programmable analog polyphonic synthesizer. minilogue’s newly developed analog synthesizer circuit delivers polyphony and full programmability at a great price --- exactly what today's musician needs. With the minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. All of these seamlessly integrated features make minilogue as fun and easy to use as it is powerful. It's the next-generation analog synthesizer for musicians of all types.
The synth circuits for minilogue are all new ground up designs, delivering a synthesizer experience like no other. Unprecedented in this class, it’s a four-voice polyphonic true-analog synth with an interface that's designed for accessibility. Whether you're performing live or producing in the studio, the minilogue is the fastest way for the user to explore and implement real analog synthesis in any situation. The structure consists of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The minilogue's unique wave shape capability lets you fine tune the oscillators’ harmonics, creating the most divine sounds and compositions. The minilogue is also equipped with a variety of powerful types of modulation including cross modulation, oscillator sync, and ring modulator, as well as a delay with a high-pass filter. Powerful sound creation and rich variety are the true hallmarks of an analog synthesizer.
minilogue goes beyond analog synths in its price range by adding 200 preset locations. Select a program for instant access to great sounds - - ranging from thick basses to deep pads to brilliant polyphonic leads and atmospheric sounds. No need to have deep synthesis knowledge; just choose a sound and tweak - a workflow that is very familiar with musicians today. For those who want to dive deeper into the heart and soul of minilogue’s engine, the minilogue hold 200 programs; with 100 editable factory programs included, and 100 locations serving as blank canvases on which to create your next analog masterpiece. Each preset can also hold a step sequence and delay settings along with the sounds you create. In addition, the Sound Librarian lets you manage your program data.
Selectable voice modes let you freely configure the four voices for performance. The voices can be set to four note polyphony for chords or layered for thick basses and leads. Other modes cover a range of sounds from octave shifted bass explosions to delicately staggered layered triggering.
Get creative with the intuitive 16-step sequencer with motion sequence recording capabilities, and make your sound truly come to life. The minilogue provides real-time recording with overdubbing, and step recording that lets you record simply by consecutively specifying notes, giving you a great way to create phrases and performances.
The OLED display will show the waveform as you sculpt your sound. Visual feedback is both educational and entertaining, and represents a first on a hardware synthesizer.

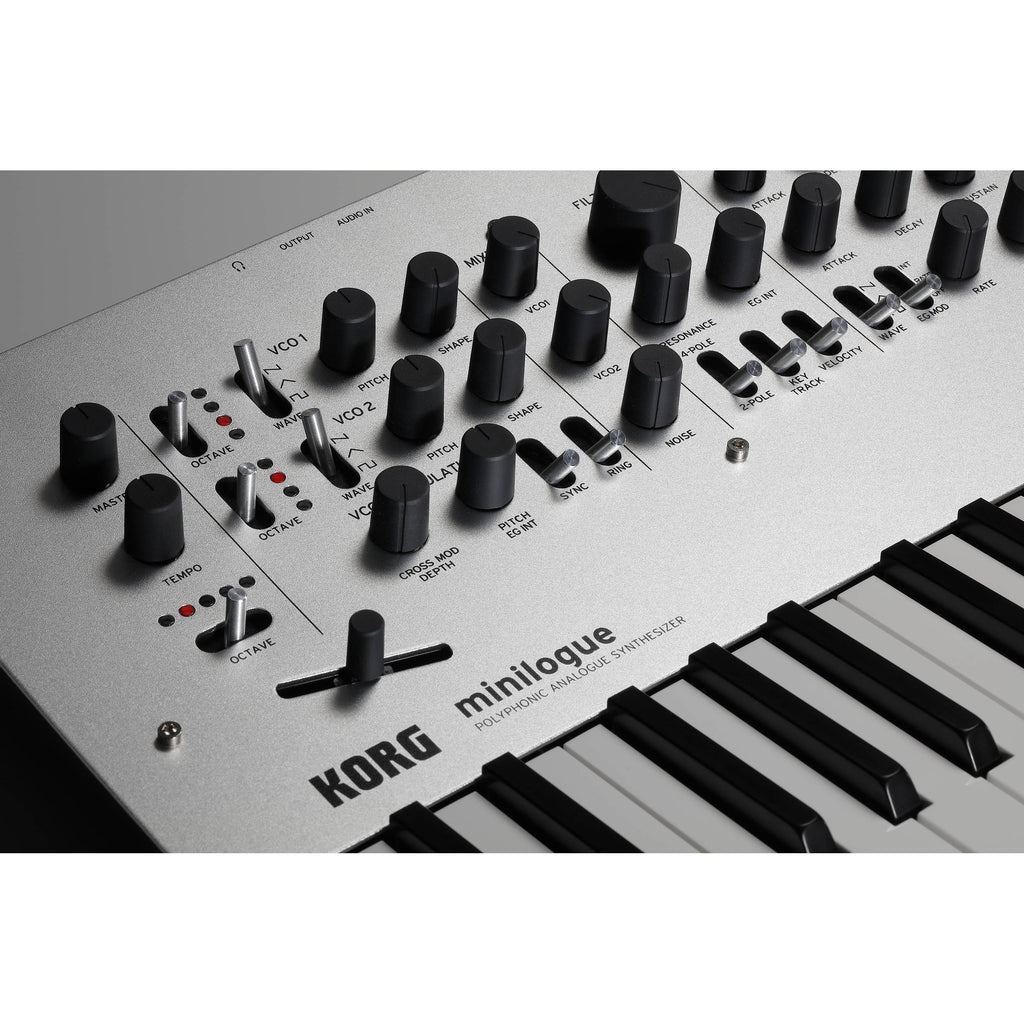

The uniquely curved, sand-blasted 2mm aluminum front panel, metal shaft potentiometers, solid, chassis-mounted metal shaft potentiometers and rubber-coated knobs give the roadworthy minilogue a standout look and feel to complement its powerful and dynamic sound creation capabilities.

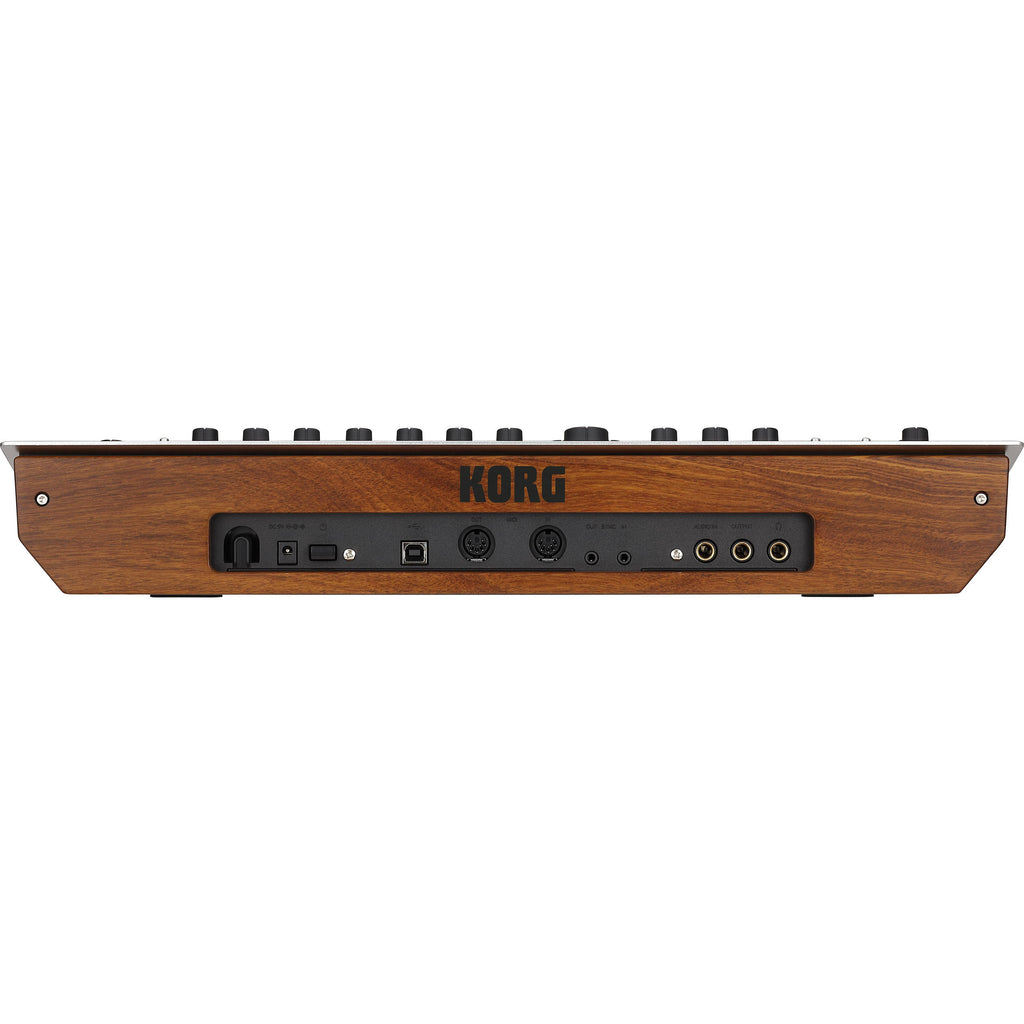

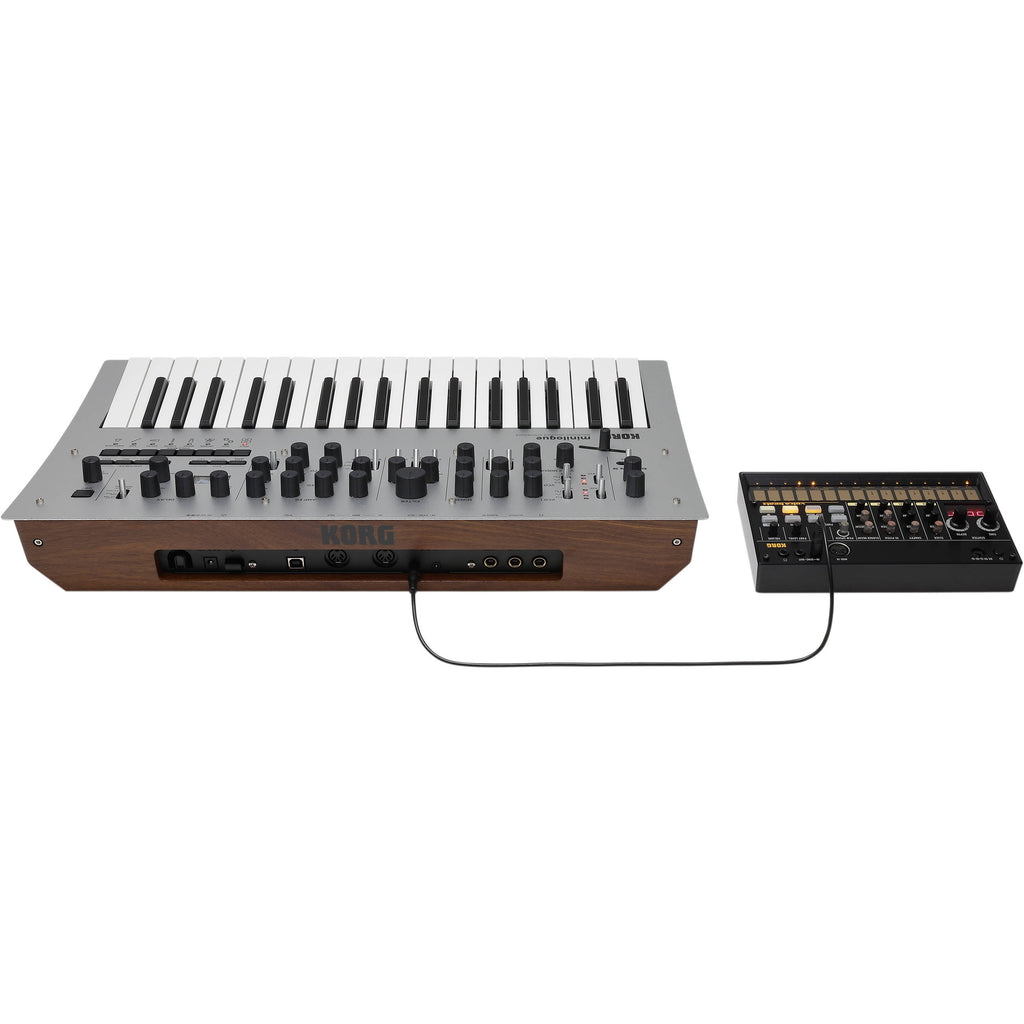

In addition to the standard MIDI connectors, the minilogue provides a sync connector that can be easily connected to Korg's groove machines. Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback.
Type |
Keyboard Synth with Sequencer |
---|---|
Analog/Digital |
Analog |
Number of Keys | 37 |
Type of Keys | Slim-key, velocity sensitive |
Other Controllers |
1 x Slider (assignable) |
Polyphony |
4 Notes |
Presets |
100 presets, 100 user |
Oscillators |
2 x Analog VCO (sawtooth, triangle, square) |
LFO |
1 x LFO (sawtooth, triangle, square) |
Filter |
2-pole/4-pole Lowpass Filter with Keytrack, Velocity |
Envelope Generator |
1 x AMP EG (ADSR), 1 x EG (ADSR) |
Arpeggiator |
4-voice |
Sequencer |
16-step Polyphonic Sequencer, Motion Sequence, Realtime Recording |
Audio Inputs |
1 x 1/4" TS (audio in) |
Audio Outputs |
1 x 1/4" TS (audio out) |
Headphones |
1 x 1/4" |
USB |
1 x Type B |
MIDI I/O |
In/Out/USB |
Other I/O |
Sync in, Sync out |
Software |
Minilogue Librarian Software |
Power Supply |
9V DC power supply (included) |
Height | 3.35" |
Width | 19.69" |
Depth | 11.81" |
Weight | 6.17 lbs. |
Manufacturer Part Number |
MINILOGUE |
