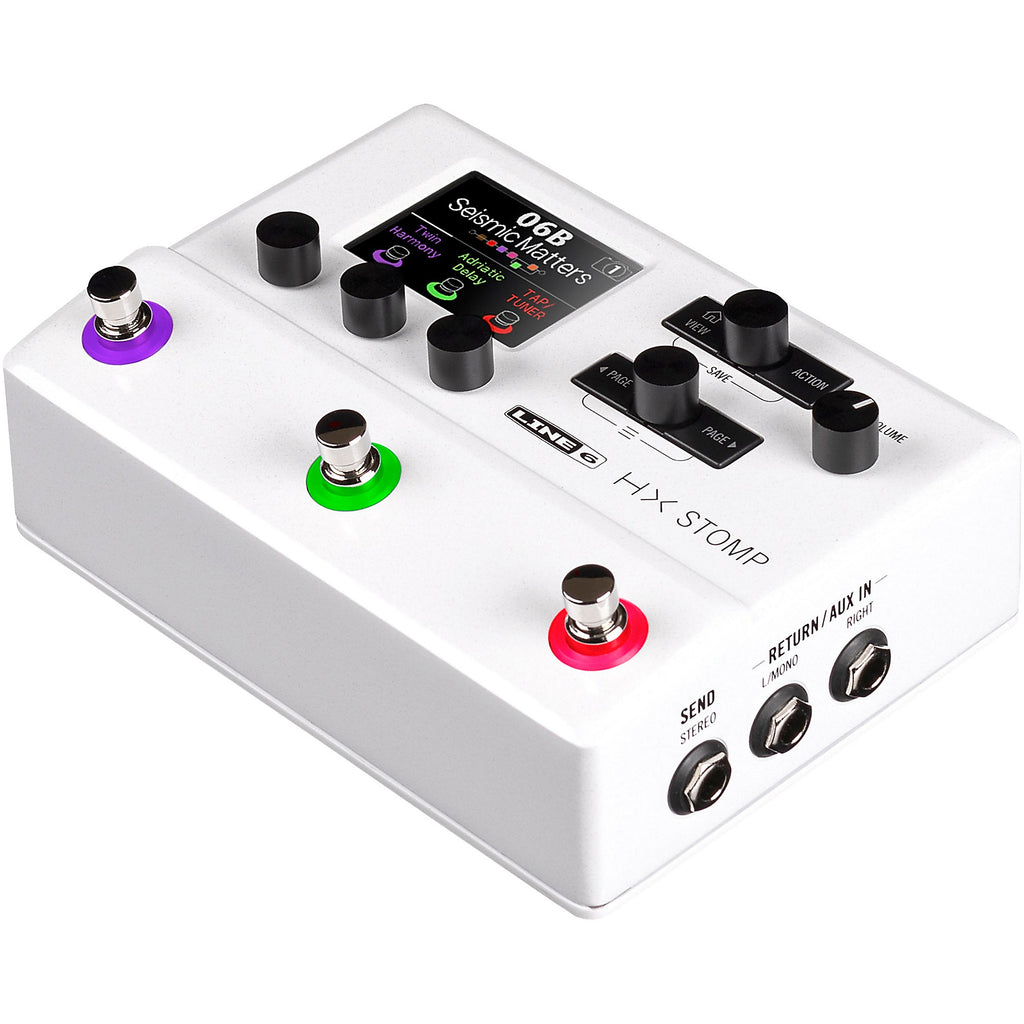

The brains and brawn* of the award-winning Helix family comes to a board-friendly 3-switch stomp in the Line 6 HX Stomp. The HX Stomp makes the ultimate standalone travel rig, a fully loaded modeling and FX engine to front-load an amp, and a capable audio interface with re-amping capabilities. Choose up to eight blocks — amps, cabs, and stomps — per preset, and assign switches to suit your particular needs. The HX Stomp is equipped for real-world gigging applications with 126 user presets for guitars, bass, and keys; and tons of I/O, which include TRS balanced outs, traditional MIDI switching, an FX return for 4-cable amp integration, and a 2-channel expansion jack for expression pedals or additional external switches.
Not only does the HX Stomp give you 126 presets for real-world gigging applications, but it also comes loaded with heaps of great tones for instant inspiration. Stock presets are organized by instrument (guitar, bass, keys, acoustic) and application (direct to PA, 4-cable amp routing, etc.), which makes it fast and intuitive to dive in and find tones.
Modern ampists rejoice! The HX Stomp has integrated support for 4-cable amp integration. This allows you to front-load your FX loop-equipped guitar head with stomps traditionally reserved for the front end of an amp (drives, EQs, filters, wahs, and fuzzes), and back-end effects that tend to sound best after an amp's preamp section (delay, reverb, and modulation). Not only that, but several of the HX Stomp's presets are also preconfigured for the 4-cable method, which provides a pre-routed template from which to create custom patches.
The HX Stomp is much more than a multi-effects amp modeler. Though it can easily replace your current board into the front end of your amplifier, it also boasts enough I/O and control to take the lead in even the most complex guitar setups. Here's what you get:
Following Helix's lead, the HX Stomp boasts three capacitive touch footswitches to make editing and recalling presets easier than ever. Simply touch the switch you want to adjust, make the necessary changes, and save. It couldn't be simpler. And to keep track of your tones and changes, Line 6 outfitted each of the switches with bright color-coded LEDs. No matter how dark or bright the stage is, you'll always know what function each footswitch is controlling.
You can dramatically streamline your recording setup with the Line 6 HX Stomp on your studio desk. Dialing in tones is as fast and intuitive as on the stage. Meanwhile, USB connectivity and future-looking 24/96 headroom and clarity preserve your recordings for later generations to enjoy.
For picky pedalists, the HX Stomp makes a truly board-worthy stompbox. True bypass switching eliminates unwanted coloration between your other stomp effects, so you can integrate the HX Stomp's advanced pedal, amp, and cab models into your setup with the quality of your signal intact.
The HX Stomp includes support for third-party cab IRs. Now fresh tones and inspiration will always be just a click away.
With the entire library of models from the Helix family at your behest, you'll never be at a loss for tone with the HX Stomp. All effects and models are processed through the HX audio engine, ensuring every single swell of a modulation effect, response of an overdrive, or decay of a delay feels convincingly like the unit it's modeling. Take your place at the Helix family table with the easy-traveling Line 6 HX Stomp from Music Experience.
The HX Stomp™ amp and effects processor may be used as a “super stompbox,” a backup or travel rig, an add-on tone expander with other modelers, an audio interface—or a complete guitar or bass rig. Although compact in size, it delivers the same professional-grade sound quality and authentic HX® Modeling found in our market-leading Helix® processors.
The SHARC® audio engine in HX products accurately recreate the sonic characteristics and dynamic playing response of classic and modern amplifiers and effects.
Helix cabinet models provide low-end reproduction and overall definition equivalent to a 2048-point impulse response (IR), and third-party impulse responses may also be loaded. A choice of 16 microphone models with adjustable distances provides additional flexibility.
Each stage of an amp’s circuitry is measured and the results matched to the original during the modeling process, ensuring realistic sound and an authentic playing experience.
HX Modeling technology captures the unique behavior of analog effects devices by measuring their individual components, resulting in authentic recreations of even notoriously difficult-to-model effects such as germanium fuzz and “bucket-brigade” analog delay pedals.
HX processors feature a clear interface that enables fast tone creation and easy interaction—all with a minimal learning curve and the elimination of complex menu diving.
Simply touch a footswitch to instantly jump to any block and quickly adjust a parameter or assign controllers. Color-coded LED rings convey footswitch assignments and status at a glance.
Snapshots enable you to create multiple variations within a single preset and seamlessly transition between them, without the audio dropouts that occur when switching between presets.
A switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX products as outboard processors in the studio.
HX processors easily integrate into pedalboard and studio rigs thanks to their flexible routing capabilities. Internal routing includes parallel stereo signal paths, while inputs and outputs include stereo-linkable effects loops.
HX processors can serve as command centers for any rig. MIDI messages can be sent manually via footswitches (or an optional expression pedal), and up to six commands can be sent automatically at preset or snapshot recall. Even QWERTY hotkey commands can be sent via USB.
Switchable analog bypass routes signals at the input(s) directly to the output(s) without undergoing A/D/A conversion.
HX Edit features the same intuitive user interface as HX processors. Create complex signal chains with ease, adjust settings and parameters using dedicated sliders, customize footswitch labels, and more.
|Pedal Type||Multi-FX with USB Interface|
|Presets||126 (42 banks x 3 presets), 3 Snapshots per preset|
|Number of Effects||Over 300 (effects & modeling combined)|
|Effects Types||123 Helix, 77 Legacy, 6 simultaneous FX|
|Amp Modeling||77 x Amps, 37 x Cabinets, Impulse Response support|
|Looper||60 seconds (mono), 30 seconds (stereo)|
|Inputs||2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, aux in)|
|Outputs||2 x 1/4" (L/mono,R), 1 x 1/4" (stereo send)|
|MIDI I/O||In, Out/Thru|
|USB||1 x Type B|
|Headphones||1 x 1/4"|
|Other I/O||1 x 1/4" TRS (expression/footswitch)|
|Bypass Switching||DSP Bypass (switchable)|
|Features||24-bit/192kHz converters, SHARC DSP Processor|
|Software||HX Editor (librarian, IR loader)|
|Power Source||9V DC-3G power supply (included)|
|Manufacturer Part Number||99-060-2405-05-FBAU|
