The Mackie SRM V-Class Loudspeaker may pump out 2,000 watts of reliable Class D power, but the secret to its great sound is in the drivers. The SRM212 is loaded with a 12" woofer and a custom polymer tweeter. Both drivers have high-performance transducers and oversized magnets that transmit your audio with unmatched accuracy. For optimal efficiency, the horn-loading frequency is set below the tweeter's low-frequency capability. You'll enjoy the symmetrical, flat response at the crossover point for smooth transitions. Simply put, the Mackie SRM V-Class Loudspeaker is versatile enough to handle any application you can imagine.

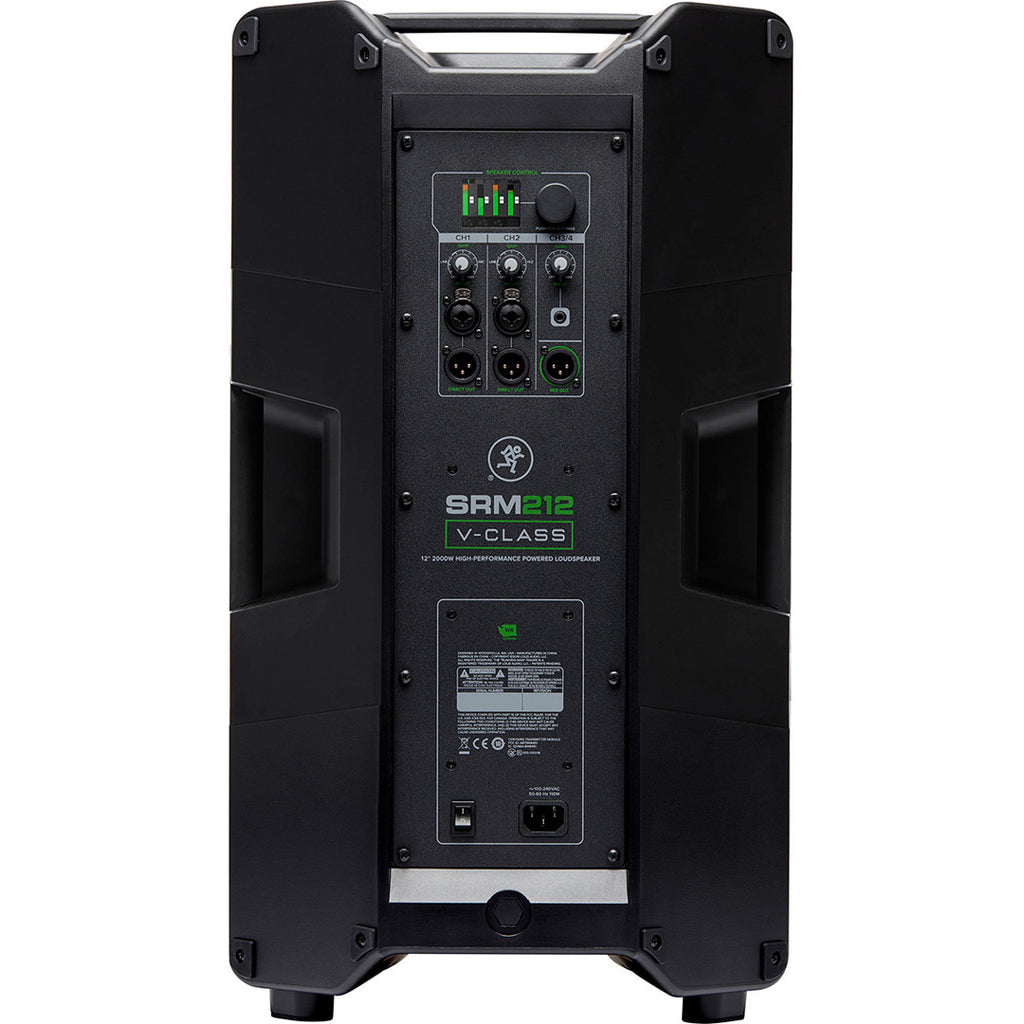

On the back panel of the SRM V-Class Loudspeaker, you'll find a 6-channel digital mixer with a high-contrast full-color display. Dual independent channels support mic, line, and instrument signals while a dedicated 1/8" stereo auxiliary channel provides seamless audio playback between performers. It also has Bluetooth connectivity, so you can easily stream music when you're off stage. Single-knob control gives you quick access to all parameters, including levels, EQ, voicing modes, and presets. A built-in system lock and 4-digit pin ensure that nobody can tamper with your settings while you're not looking.
The SRM212 V-Class Loudspeaker is equipped with Mackie's Advanced Impulse DSP. This proprietary acoustic tuning mechanism uses Digital Signal Processing (DSP) to great effect. Precisely placed crossover points work together with time-aligned transducers to create symmetrical and detailed reproduction. To simplify, Advanced Impulse DSP allows the SRM212 to provide über-clear audio reproduction across the whole dispersion zone. When you run audio through the SRM212, the whole room is your sweet spot.
As the seasoned live sound experts here at Music Experience will tell you, unpredictable level spikes are a fact of life. The Mackie SRM212 takes this into account, providing you with a dedicated processing module that monitors your amplifier in real time to guard against excessive levels. It's extremely transparent — instead of sacrificing your overall output to prevent overloads, the SRM212 uses multiband compression to attenuate specific frequency ranges. What's more, input limiting tames extra-hot sources before they cause issues. You also get Power Factor Correction for rock-solid operation in venues with unstable power.
Controlling your Mackie SRM212 is incredibly easy, thanks to the Mackie SRM Connect app for smartphones and tablets. Simply open the app, pair your device with your loudspeaker, and you're ready to get to work. You can cycle through each channel, tweak the graphic EQ, select from three reverb modes, and use the Mixer view to monitor the level of each channel on a single screen. You can also link two SRMs wirelessly for music streaming applications.
The Mackie SRM212 V-Class 12-inch powered speaker delivers industry-leading sound, power, and reliability for mobile DJs and musicians who need uncompromising performance in an easily portable form factor.
The original Mackie SRM Series changed the game. And the SRM212 | V-Class 12-inch powered speaker taps in to the legacy of the industry-defining series that started it all and is here to raise the bar once again. More power. Higher fidelity. Extra dependability. Smart features. The Mackie SRM212 V-Class Powered Speaker delivers all that and more in a compact loudspeaker that represents everything we’ve learned across three decades (and counting) as an industry leader in pro audio.We took a deep look at what matters today in powered speakers. And then went above and beyond. The Mackie SRM212 V-Class 12-inch powered PA speaker combines our most reliable amplifier platform, premium transducers and a built-in mixer with the latest DSP technology to create the ultimate all-in-one premium loudspeaker for bands, DJs and venues.
What does it do for me? Mackie’s filtering technology is not your typical speaker processing. The goal of our Advanced Impulse™ DSP is to remove all the anomalies that loudspeakers and horns contribute to a signal, from “honkiness” or “squelch” to "mushy" low end, effectively making the drivers "invisible" and output nothing but perfect, clean sound. By more intelligently (and more thoroughly) employing the benefits of FIR filtering, Advanced Impulse DSP eliminates undesired acoustic anomalies across the entire dispersion zone (horizontal and vertical), as well as frequency range and time domain.Mackie Advanced Impulse DSP.
The main way this is accomplished is by measuring the negative frequency response and time domain impacts that each transducer and horn in the system introduces – on axis as well as off – and reversing/correcting for those anomalies before the signal hits the speaker. The result is the output from the speaker is fully corrected for flat, clear, time-aligned, and smooth sound throughout the entire time, space, and response domains.
The custom horn within each loudspeaker was designed with the goal to bring out the very best from the HF transducer while maintaining the flattest response possible at the crossover point. Surprise surprise... we nailed it. The special design of this horn allows the compression driver to operate at near maximum efficiency. This means it gets louder and sounds better with less effort. The transition between the LF and HF is a symmetrical, flat response which is what helps make the incredibly smooth midrange possible.
Other loudspeakers feature some sort of protection and limiting to help them squeeze a dB or two out of the speaker. This is almost always at the expense of sound quality and is commonly experienced as diminished bass response and the "pumping" sound of the internal limiter having a bad day. When operating at very high levels (ears beware), the processor-controlled system monitoring analyzes the audio signal and identifies the problem areas, then dynamically applies multi-band compression to those specific frequencies rather than lowering the overall output. This keeps your levels where you want them and maintains the sound quality you expect.
Powered |
Yes |
---|---|
Power Configuration | Single Amp |
Channels |
4-channel digital mixer |
LF Driver Size | 12" woofer |
HF Driver Size |
1.4" Sym-X Horn Tweeter |
Total Power |
2000W Class D |
Inputs |
2 x XLR-1/4" combo, 1 x 1/8" (aux) |
Outputs |
2 x XLR (DI), 1 x XLR (mix) |
Bluetooth |
Yes |
Wireless |
Bluetooth |
Frequency Response |
42Hz-20kHz |
Maximum Peak SPL |
135 dB SPL @ 1m |
Horizontal Coverage Angle |
90 Degrees |
Vertical Coverage Angle |
60 Degrees |
Signal Processing |
DSP |
Software |
SRM Connect App |
Enclosure Material |
Molded Plastic |

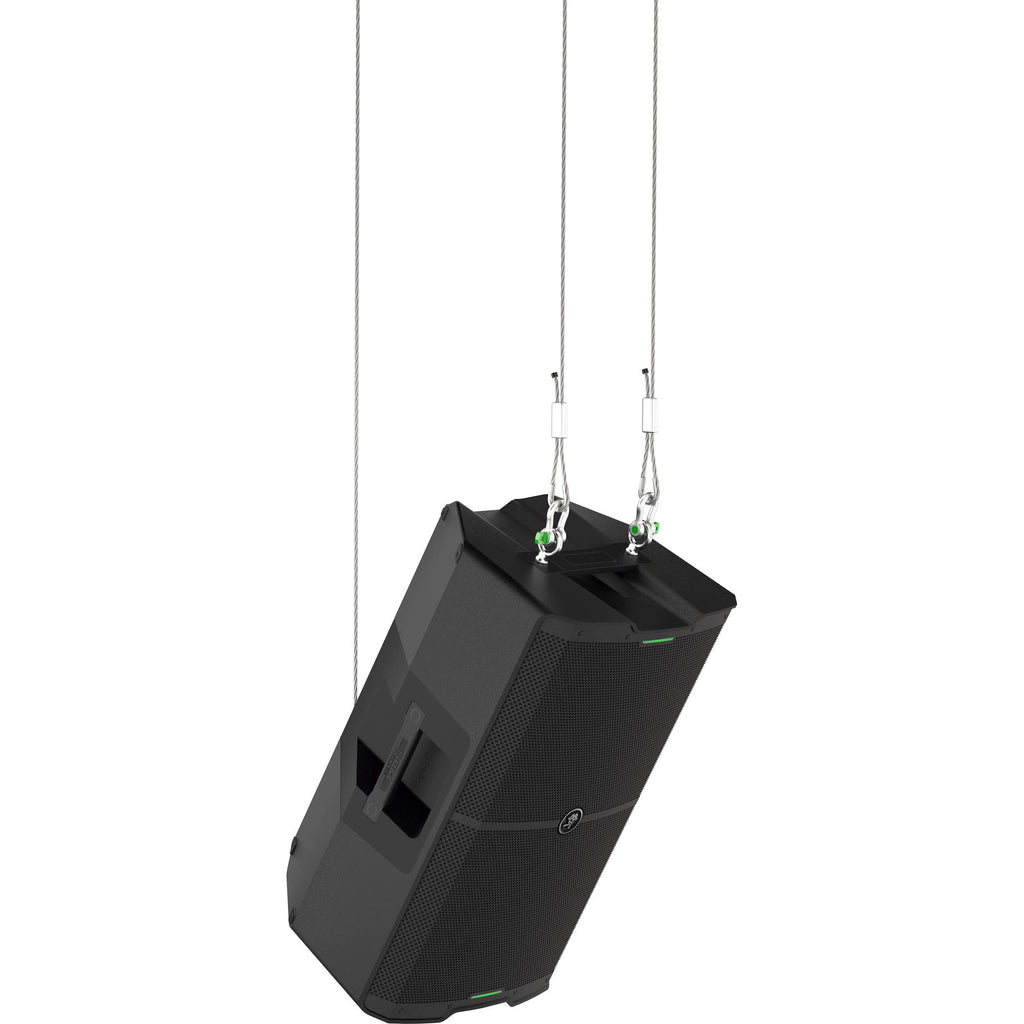

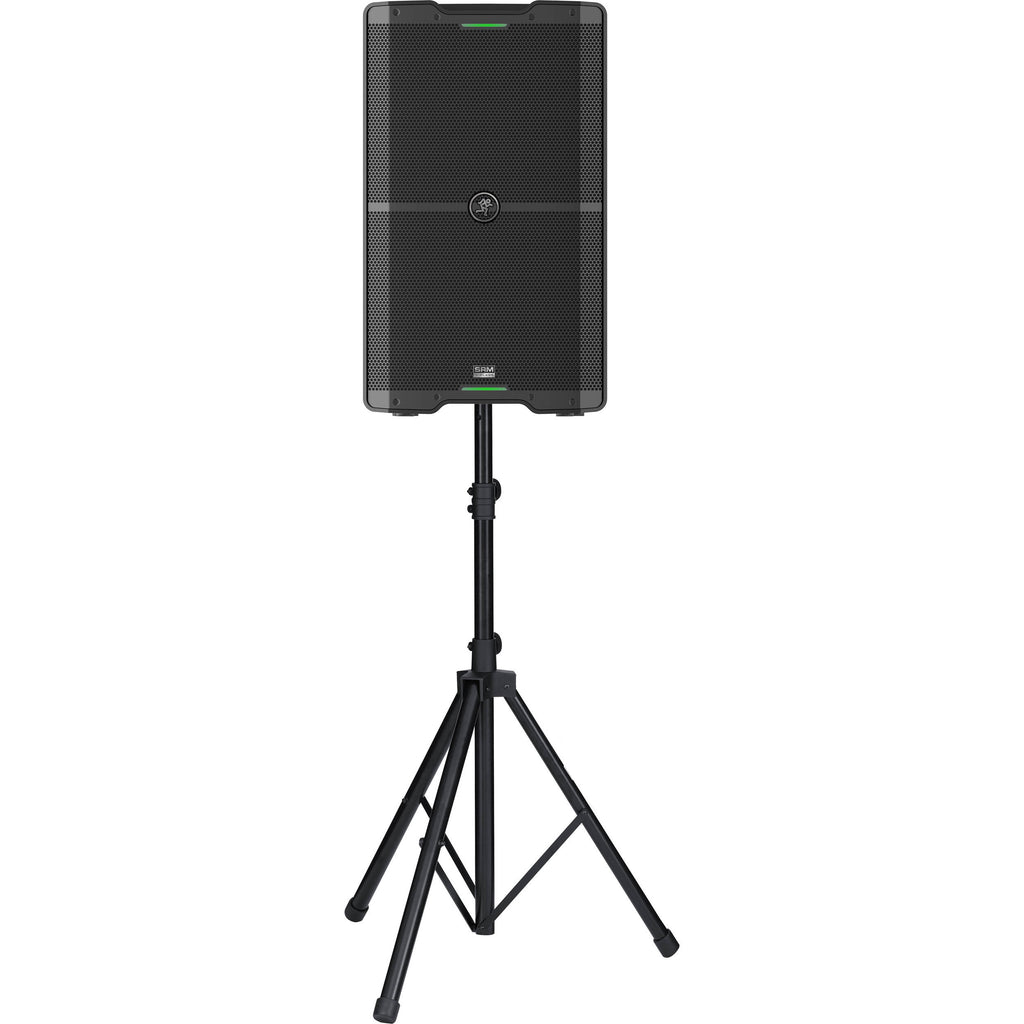

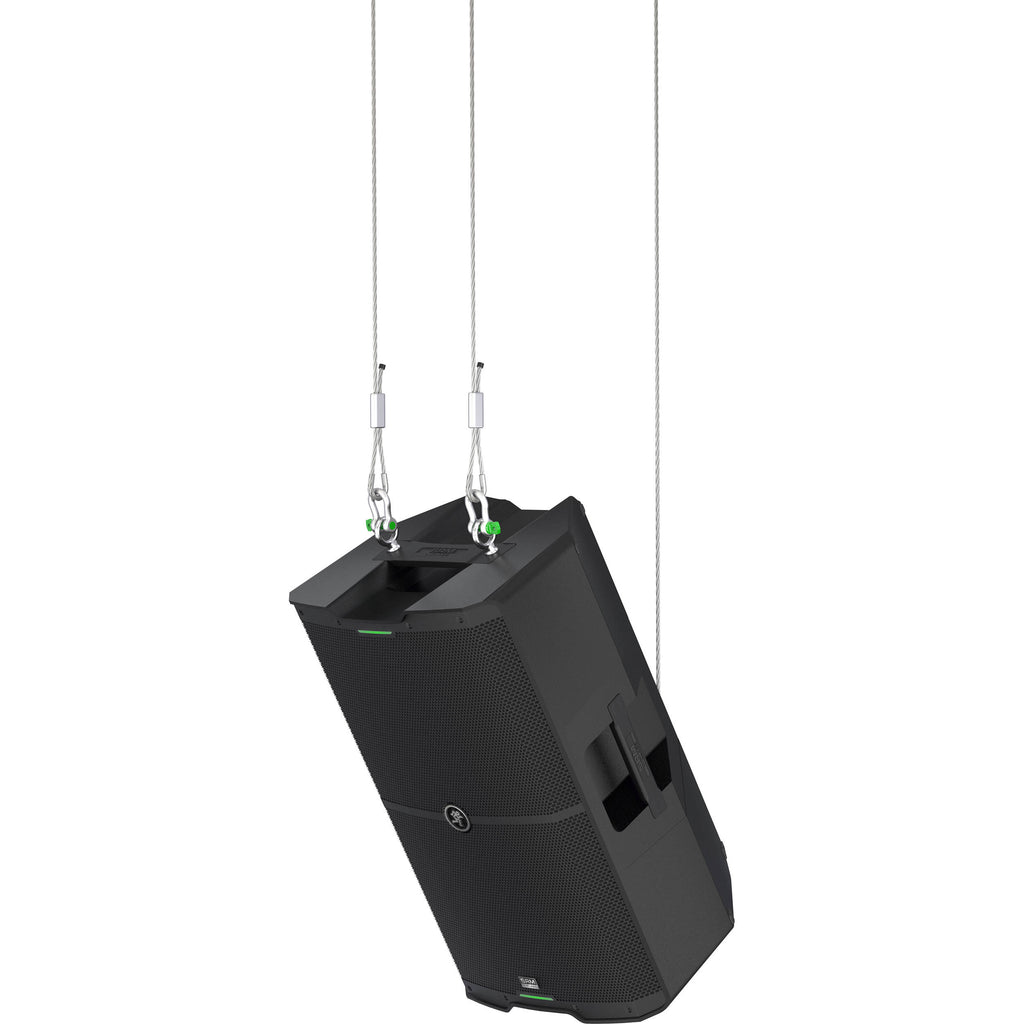

Mounting Options |
Pole, Floor Wedge, M10 flypoints |
Power Source |
Standard IEC AC cable |
Height |
25.9" |
Width |
15.2" |
Depth |
14.2" |
Weight |
40.6 lbs. |
Manufacturer Part Number | 2050940-00 |
