The fifth-generation MOTU UltraLite-mk5 packs 40 simultaneous channels — 18-in and 22-out — into a compact, portable USB audio interface that delivers reference-quality performance. Featuring ESS SABRE PRO D/A conversion and an astonishing 2.4ms of round-trip latency, the UltraLite-mk5 is built for demanding studio and live applications. Dual microphone preamps provide crystal-clear capture, while extensive I/O makes it easy to integrate outboard gear. Loopback functionality simplifies podcasting and livestreaming, and onboard DSP with the redesigned CueMix 5 software ensures fast, accurate monitor mixes. Compatible with Mac, PC, and iOS, the UltraLite-mk5 also includes Performer Lite DAW software, over 100 virtual instruments, and 6GB of loops and samples.
Whether you’re performing onstage or working in the studio, the UltraLite-mk5 delivers exceptional sound quality and rock-solid reliability. Its ESS Technology ES9026PRO SABRE D/A converter provides an impressive 125dB dynamic range with ultra-low distortion at -114dB THD+N. Optimized drivers enable round-trip latency as low as 2.4ms over USB at 24-bit/96kHz, ensuring responsive performance across Mac, PC, and iOS systems.

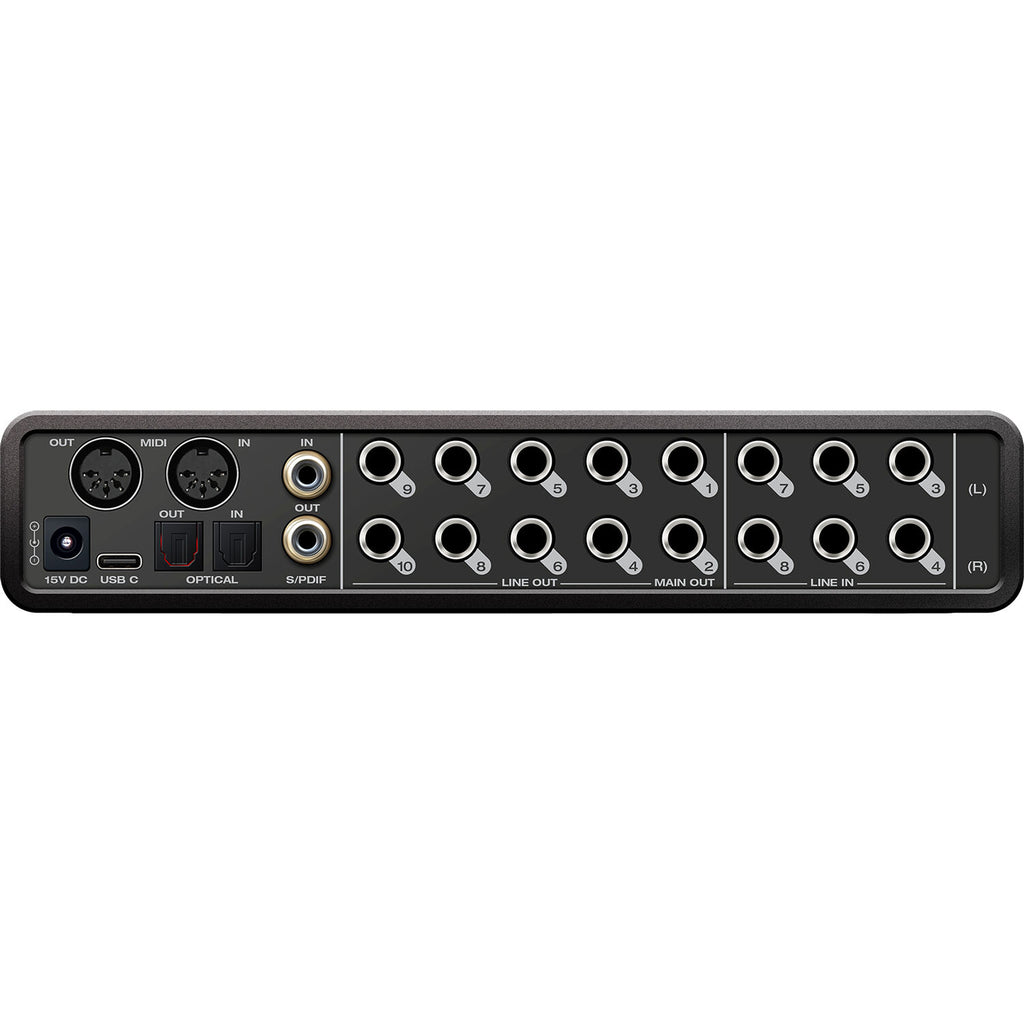

Housed in a portable half-rack enclosure, the UltraLite-mk5 offers a total of 40 simultaneous audio channels. This 18-in/22-out interface includes two mic/line/instrument inputs, six additional line inputs, and 10 line outputs. A high-quality headphone output, eight channels of optical digital I/O, MIDI I/O, and built-in loopback functionality complete a connection set that’s ideal for recording, podcasting, and livestreaming.
The UltraLite-mk5 features powerful onboard DSP with reverb, a 4-band parametric EQ, and dynamics processing. Its DSP-driven 22-in/6-out monitor mixer provides independent monitor mixes for each analog output pair. The completely redesigned CueMix 5 software offers intuitive, touch-friendly control with graphic mixing and EQ editing, streamlining workflow and making professional-quality monitoring fast and effortless.
5th-generation engineering delivers unprecedented sound quality, ultra-low latency and proven performance.
The UltraLite-mk5 includes renowned ESS Sabre32™ DAC technology, featuring the ES9026PRO DAC, delivering a measured 125 dB dynamic range and -114 dB THD+N. Renowned drivers provide rock-solid performance and industry-leading low latency.
Optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk5 achieves an astonishing 2.4 ms round-trip latency over USB at 96 kHz with a 32-sample host buffer.
Housed in a compact steel enclosure, the UltraLite-mk5 is ideal for studio and stage use, with or without a computer. Connect all your studio gear for state-of-the-art recording and production, or take it to your next gig to mix live without a computer.
As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs for a total of 40 simultaneous independent I/O channels.
Connect all of your audio gear including speakers, headphones, microphones, guitars, synths, keyboards, drum machines, effects processors and MIDI devices.
USB audio class compliant for plug-and-play compatibility with iPad® and other Apple® iOS devices. Record on-the-go or mix live inputs and backing tracks using the built-in mixer, controlled via the CueMix 5™ app on iPad or iPhone.
Convenient loopback channels allow routing of computer output and live inputs back to your computer or iOS device for recording, podcasting or live streaming with exceptional sound quality.
After studio recording and mixing, take the UltraLite-mk5 on the road with your laptop for mobile recording and live mixing.
Designed for touring, the steel-encased UltraLite-mk5 can be rack-mounted using thick steel brackets built to withstand life on the road. (Sold separately)
Join two UltraLite-mk5 units side by side to form a full rack-width unit using rugged steel brackets. (Sold separately)
CueMix 5 provides intuitive graphic control over mixing, EQ editing and device settings with a touch-friendly interface for fast and efficient workflow.
Start making music immediately with Performer Lite, including virtual instruments, effects and loops from leading sound developers.
Record, edit, mix and master your music with over 100 virtual instruments, dozens of effects plug-ins and comprehensive MIDI and audio tools.
Includes acoustic and electric pianos, guitars, basses, drums, organs, synths, orchestral instruments, choirs and world instruments.
Includes 6 GB of royalty-free loops and samples from Big Fish Audio, Lucidsamples and Loopmasters to jumpstart your creativity across a wide range of musical styles.
| Computer Connectivity | USB 2.0 |
|---|---|
| Form Factor | Rackmount |
| Simultaneous I/O | 18 x 22 |
| Number of Preamps | 2 |
| Phantom Power | Yes |
| A/D Resolution | 24-bit/192kHz |
| Effects | Onboard DSP: Reverb, 4-band Parametric EQ, Dynamics |
| Analog Inputs | 2 x XLR-1/4" combo (mic/line), 6 x 1/4" TRS |
| Analog Outputs | 10 x 1/4" TRS |
| Digital Inputs | 1 x Coax (S/PDIF), 1 x Optical Toslink (ADAT) |
| Digital Outputs | 1 x Coax (S/PDIF), 1 x Optical Toslink (ADAT) |
| Headphones | 1 x 1/4" (stereo) |
| MIDI I/O | In / Out |
| USB | 1 x USB-C |
| Software | MOTU CueMix |
| OS Requirements (Mac) | OS X 10.11 or later, iOS 13.5 or later |
| OS Requirements (PC) | Windows 10 or later |
| Rack Spaces | 1U |
| Power Supply | 12V DC power supply (included) |
| Height | 1.75" |
| Width | 8.6" |
| Depth | 6.9" |
| Weight | 2.87 lbs. |
| Manufacturer Part Number | 8453 UPC: 839128006188 |
