If you want the power of the Impact LX+ series without the extra keys and faders, the LX Mini is for you. Based on the award-winning Panorama and LX49+/LX61+ before it, the Nektar Impact LX Mini USB MIDI controller uses intelligent mapping to give you hands-on control of your DAW session. Take advantage of the instrument mode to take control over parameters in your DAW and virtual instruments. The Impact LX Mini's synth-action keys give you a smooth, precise feel. In fact, all controls on the LX Mini — including the knobs and performance pads — feel great. At Music Experience, we especially enjoy the Part 2 feature that allows you to shift octaves, transpose, layer octaves, or switch to differing MIDI channels. Plus, two built-in arpeggiators take your musical creations to the heights of dynamic brilliance!
The Impact LX Mini's 25-note velocity-sensitive keyboard sports a silky synth action with firm tension. This makes it perfect for playing just about any type of part. To suit your playing style, you get four velocity curves that gradually increase in dynamics. For certain types of synth parts requiring consistent output, there are three fixed velocities. The octave and transpose buttons appear in the dedicated Part 2 section.
Nektar hit it big with their Panorama range. Now they've done it again - at a more affordable price. The streamlined Impact series of controllers offers intelligent mapping and tight integration with most popular DAWs, preset mixer and plug-in modes, transport and navigation controls, and MIDI programming capabilities.
From sketching and arranging musical ideas to final mixdown and even live performance, Bitwig DAW software gives you a powerful toolset and fast workflow. The Nektar Impact LX Mini comes with Bitwig 8-Track DAW software, which features the entire collection of Bitwig Studio devices for use on up to eight project tracks with audio or MIDI. Take it from Music Experience — when you're looking for a streamlined, distraction-free work platform, Bitwig is hard to beat.
Impact LX Mini makes the power of Nektar’s Impact LX range of USB MIDI controller keyboards truly portable. Enhance your workflow with a host of powerful real-time and intuitive control features that inspire your creativity: no menu-diving, tactile control, two arpeggiators, drum pads, mini-keys that are great to play – and of course Nektar DAW integration. LX Mini has everything you need to create!
Impact LX Mini features a newly developed keybed with 25 velocity-sensitive mini keys. It can be played expressively and has a defined, firm feel. With a choice of 4 velocity curves and 3 fixed values, you can tailor the keyboard response to your playing style. Dedicated Octave buttons let you shift the octave swiftly, and Part 2 buttons can be used for transpose, layering, or MIDI channel switching.

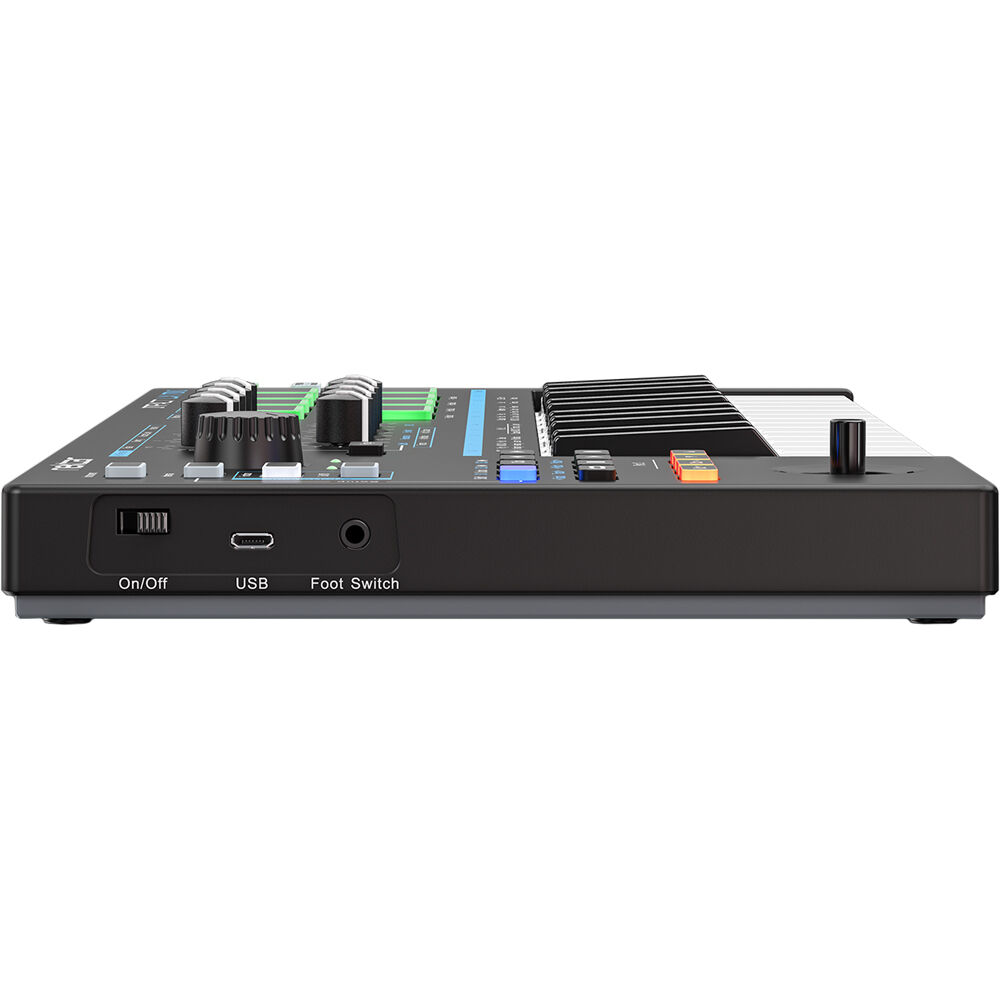

The joystick provides pitch bend, modulation, and foot pedal control, with freely assignable push-button functionality. A footswitch socket for sustain pedals is included, with automatic polarity detection and full MIDI assignability. LX Mini also offers 7 transport buttons, expandable to 14 functions with the shift button and up to 21 with Nektar DAW integration.
Eight velocity-sensitive pads with 4 pad maps allow expressive finger-drumming and quick note assignments. Eight knobs provide instant access to arpeggio, instrument, or MIDI CC parameters, with expanded functionality via the Page button. Two independent Arp/Repeat engines give real-time control over synth and percussion lines with immediate access to rate, swing, accent, interval, tempo, modes, and octave.
Part 2 is a unique performance feature for momentary setup changes. Press dedicated “Part 2” buttons to momentarily shift octaves, transpose, layer octaves, or switch MIDI channels. Release the button to revert to original settings, or latch a new configuration using the second Part 2 button. Notes held prior to engaging Part 2 continue playing at original settings.
With Nektar DAW Integration, control essential DAW functions directly from Impact LX Mini’s transport section. Navigate tracks, launch windows, set locators, or select patches without using a mouse. Instrument Mode allows instant control over virtual instrument parameters such as Osc Tune, Level, Mod 1 & 2, Cutoff, Resonance, Envelope, and LFO, with up to 16 assignable parameters using the Page button.
Bitwig Studio 8-Track is included, providing over 50 instruments and effects across 8 audio/MIDI tracks, plus the Bitwig Essentials Package. Additionally, 5 full Cherry Audio plugins are included: Mercury-6, PS-20, OctaveCat, DeamSynth, and Stardust 201, allowing for a full production setup right out of the box.
| Type | Keyboard Controller |
|---|---|
| Number of Keys | 25 |
| Type of Keys | Mini-keys |
| Velocity Sensitive | Yes |
| Pads | 8 x Velocity-sensitive Pads |
| Other Controllers | 4-way Pitchbend/Modulation Joystick |
| Encoders/Pots | 8 |
| Dedicated Transport Control | Yes |
| Pedal Inputs | 1 x 1/8" (footswitch) |
| MIDI I/O | USB |
| USB | 1 x Micro-B |
| Computer Connectivity | USB |
| Software | Bitwig 8-track |
| OS Requirements - Mac | OS X 10.5 or later |
| OS Requirements - PC | Windows 7 SP1 or later |
| Power Supply | USB bus powered |
| Height | 1.49" |
| Width | 15.35" |
| Depth | 7.28" |
| Weight | 2.20 lbs. |
| Manufacturer Part Number | LXMini UPC: 859383002473 |
