Authentic Neve 1073 Channel Strip for the Modern Studio

Coveted by top engineers and producers since its introduction in 1970, the Neve 1073 channel amplifier represents the Holy Grail of characterful microphone preamplification and the definitive “British EQ” sound. The 1073 mic/line input module defined the punchy, authoritative tone of the legendary Neve 80-series consoles that dominated professional recording studios during the Golden Age of Analog. Today, you can bring this iconic sound into your studio with the AMS Neve 1073SPX Mic/Line/DI Preamp & EQ rackmount unit. Built to the exact specifications of the original with carefully matched components for sonic authenticity — and enhanced with modern features for contemporary workflows — the 1073SPX delivers a powerful and flexible channel strip with a rich tonal palette for bold, professional productions.

Since the 1970s, the Neve 1073 has remained one of the most sought-after mic preamps and equalizers in the world, prized for its unmistakable sound and impressive versatility. With up to 80dB of gain, the 1073SPX easily handles even low-output passive ribbon microphones on delicate sources. While preserving its vintage character, AMS Neve continues to refine its classic designs to meet the demands of hybrid analog-digital studios. Featuring proprietary Neve Marinair specification transformers on both the input and output stages, the 1073SPX delivers the legendary “big iron” sound — wide bandwidth, rich lows, assertive mids, and sweet, airy highs with unmistakable depth and authority.

Finished in classic RAF blue-gray livery, the 1073SPX offers military-grade build quality and an uncompromising user experience. From precision rotary switches and robust metalwork to meticulously engineered internal circuitry, every detail reflects the durability and craftsmanship that defined vintage Neve consoles. With smooth, deliberate control feel and rock-solid construction, this channel strip embodies the timeless engineering standards that continue to make AMS Neve equipment a benchmark in professional audio.

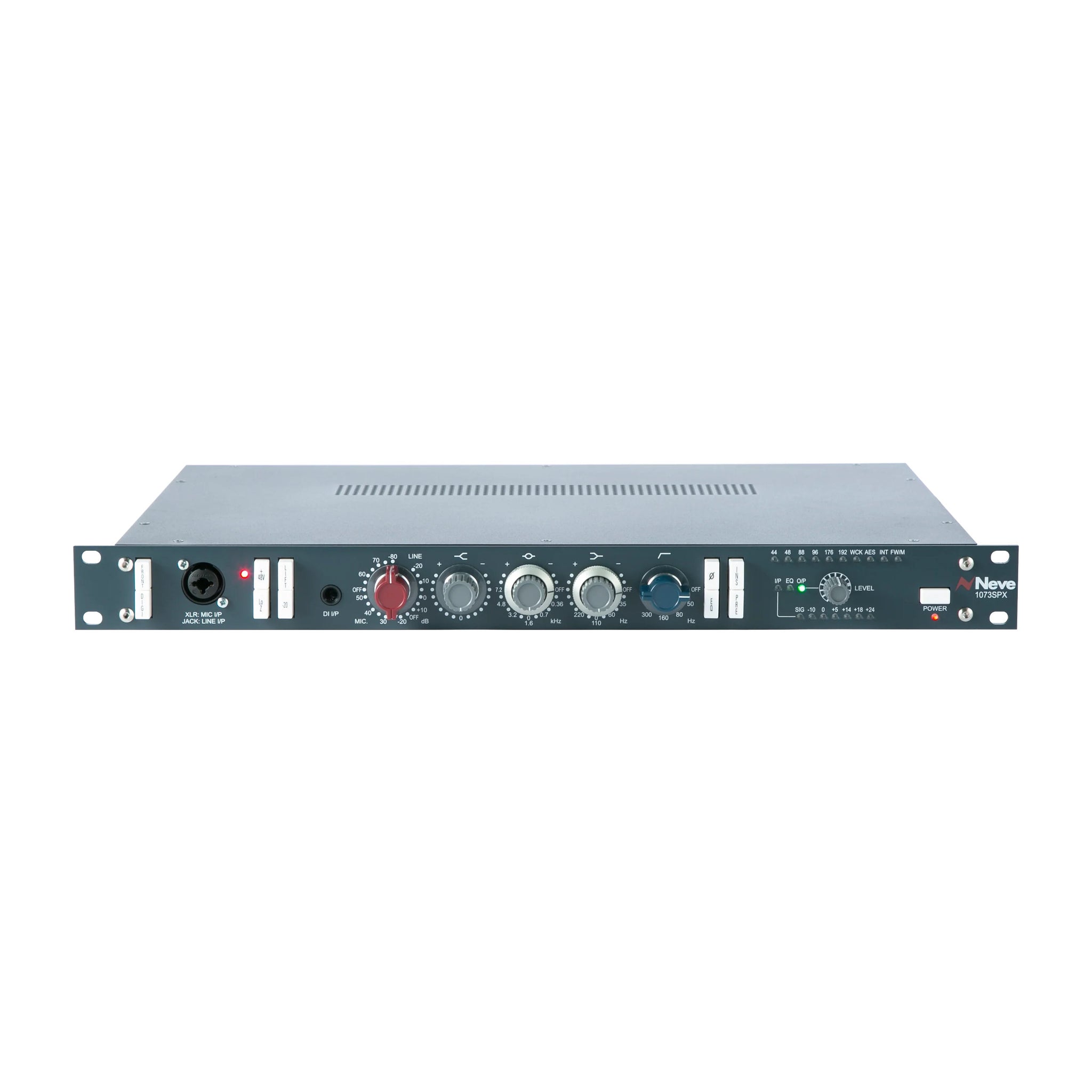

The 1073SPX Preamp & EQ Controls at a Glance:

• FRONT Button: Switches the audio input to the front mic/line combo connector (DI input overrides the mic input whether FRONT is engaged or not).
• XLR/Jack Combo Input: XLR for microphone sources; 6.35mm jack for line-level sources.
• 48V Button: Applies 48V phantom power to front and rear XLR mic inputs (adjacent LED indicates activation).
• Lo Z Button: Switches microphone input impedance from 1200Ω (default) to 300Ω.
• LIFT Button: Ground lift for DI input to help eliminate hum/buzz from ground loops.
• -20 Button: Applies 20dB attenuation to DI input and changes impedance from ~1MΩ to ~10kΩ.
• DI I/P Button: High-impedance balanced DI input; inserting a jack automatically disconnects mic input.
• Line/Mic Level Control: Up to 80dB of gain available.
• High Frequency EQ: ±16dB fixed shelving at 12kHz.
• Mid Frequency EQ: ±18dB peaking, fixed Q, selectable at 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz.
• Low Frequency EQ: ±16dB shelving at 35Hz, 60Hz, 110Hz, 220Hz.
• Highpass Filter: 18dB/octave slope selectable at 50Hz, 80Hz, 160Hz, 300Hz.
• Phase Button: 180° polarity reverse at balanced output.
• EQ Button: Engages or bypasses the equalizer.
• INS Button: Inserts the balanced send/return loop into the signal path.
• PRE Button: Moves the insert loop to pre-EQ when engaged.
• LEVEL Control: Adjusts output level; short-press cycles meter take-off point (pre-EQ, post-EQ, post-output).
• Take-off LEDs & Clip Indicators: Green LED shows selected monitoring point; red indicates near clipping.
• Level Meter: 7-segment peak meter with selectable monitoring points (input, EQ, output) up to +24dB.
• Sample Rate LED: Displays selected sample rate; cycled via long-press of LEVEL knob.
• Clock Source LED: Displays selected clock source; selected after sample rate via LEVEL knob.
• POWER Switch: Turns unit on/off; adjacent LED confirms power status.

Neve — The Legend Continues

The Neve name commands deep respect in professional audio. Rupert Neve began designing equipment in the tube console era before defining the solid-state revolution. Establishing his company in Little Shelford during the 1960s, he overcame technological limitations and component shortages to build transformer-balanced consoles that would shape the sound of modern recording.

What Neve Says...

The Neve Preamp for the Modern Age

The elegantly crafted 1073SPX carries forward the iconic 1073® Class A design, complete with its exquisite 3-band EQ — fixed high frequency plus two switchable bands with cut/boost capability — and integrated high-pass filter. Designed for seamless integration into modern 19″ rack systems, the 1073SPX delivers the unmistakable Neve tone in a format tailored for today’s studio environments. Exclusive Marinair® transformers on the microphone input, line input, and line output stages ensure authentic 1073® character with rich harmonic depth and musical warmth.

Retaining the discrete Class A topology that made the original 1073® legendary, the 1073SPX combines traditional through-hole construction in the audio path with modern in-house SMT production techniques. The discrete signal path includes Marinair® transformers and transistor-based Class A amplifiers, preserving the sonic integrity that defines the Neve sound.

A classic 5dB stepped Elma gain switch provides precise level control across the full range, intelligently selecting the appropriate input stage without the need for a separate mic/line switch. Three distinct gain stages, delivered by two independent transistor-based preamplifiers, provide up to 80dB of microphone gain and ensure optimal performance for DI, line, and mic sources. By combining multiple gain stages, the 1073SPX input section achieves the musical drive and harmonic saturation for which the 1073 is celebrated.

A dedicated front-panel instrument DI input allows fast and convenient instrument recording without re-patching cables. Independent switching between front and rear inputs ensures seamless studio integration, whether used via patchbay, as an insert, or directly through the front combi-connector.

The three-band, inductor-based EQ is meticulously designed for musicality. Each frequency point was carefully selected to enhance clarity and tonal balance across the spectrum. Custom hand-wound inductors, manufactured in the UK exclusively for Neve, often exceed strict 1073® specifications and contribute to the unit’s signature tonal shaping capabilities.

Expand your channel strip further with the balanced +4dBu insert send/return loop, featuring switchable pre/post-EQ insertion for ultimate routing flexibility with your favorite outboard processors. The rotary output level control functions as a primary channel fader from -∞ to +5, offering generous headroom for precise DAW signal management.

For detailed monitoring, the 1073SPX includes a 7-stage LED meter with PPM ballistics, displaying signal levels from -33dB to +24dB at various points throughout the signal chain. Dedicated indicators show preamp gain (I/P), EQ gain reduction or boost, and final output level (O/P), providing comprehensive visual feedback and precise control over your entire signal path.

The legendary Neve 80-series consoles delivered the huge, punchy, authoritative tone that defined 1970s rock recordings across London, New York, Los Angeles, and beyond. With milestones such as the 8078 console and NECAM automation system, Neve became synonymous with world-class studio performance. Today, AMS Neve continues this heritage — innovating with advanced console designs and cutting-edge audio equipment that honors the past while meeting the demands of the digital age.
