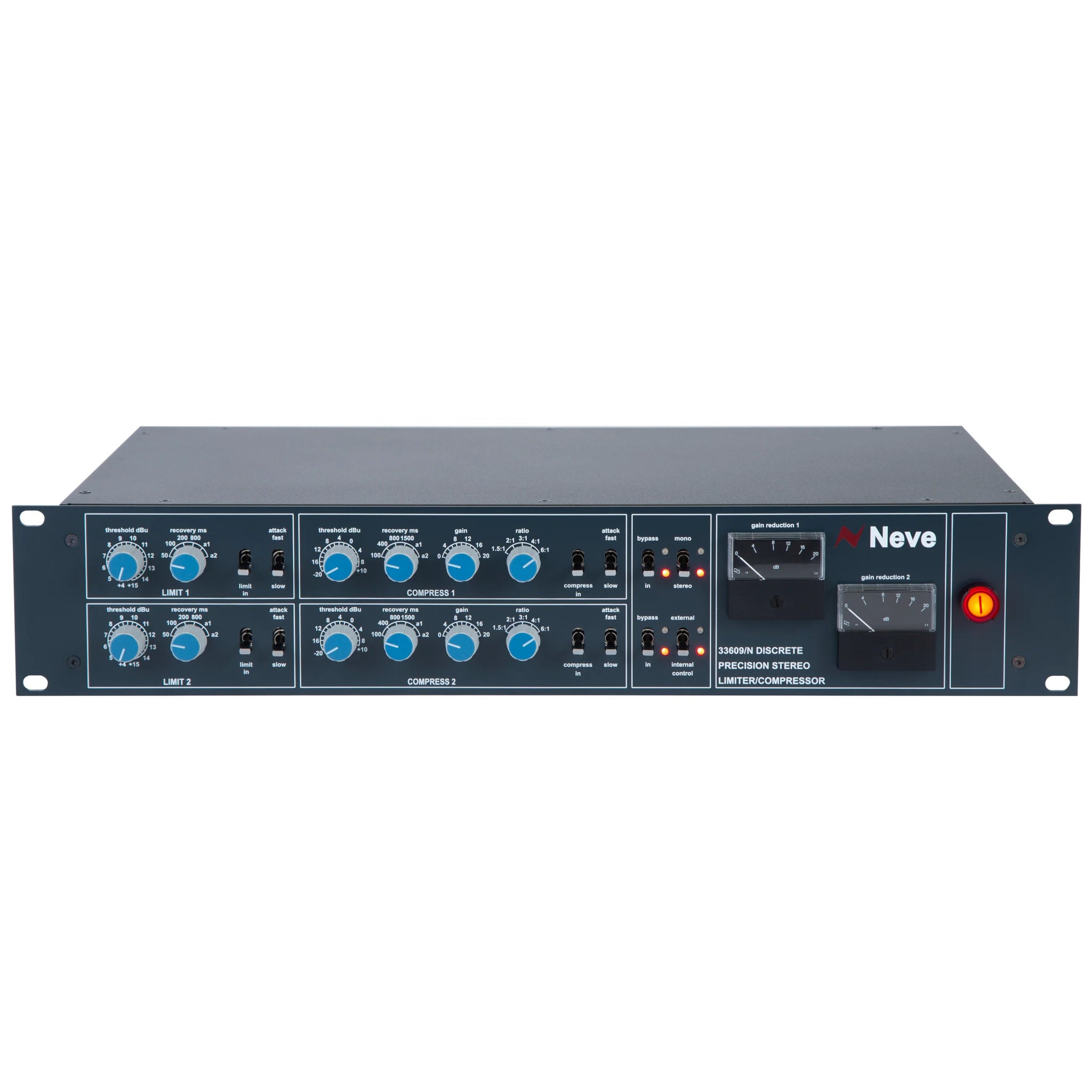

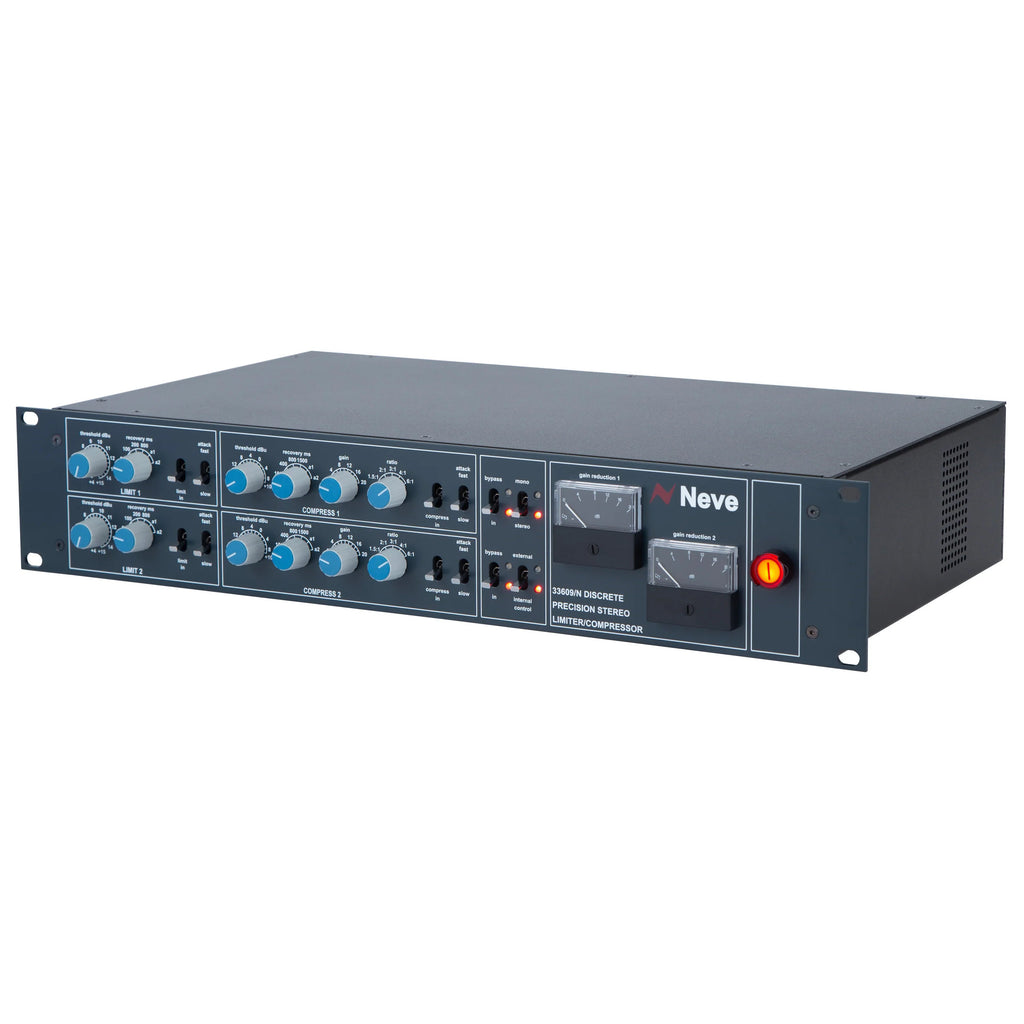

Meticulously designed to exact 1970s specifications, the AMS Neve 33609/N stereo compressor/limiter stands as a pinnacle of professional studio outboard gear. Celebrated by engineers, producers, and artists worldwide, the often-imitated 33609 is prized for its signature warmth and its ability to add cohesion, depth, and dimension to a mix. Featuring independently selectable limiter and compressor sections on each channel, along with variable recovery times and fast/slow attack modes, the 33609/N excels as a stereo buss compressor while remaining equally capable during tracking — either in stereo or as two fully discrete mono units. Handwired with Neve Marinair specification transformers in Burnley, England, the 33609/N delivers legendary tone that breathes life into recordings and mixes alike.
The 33609/N utilizes a discrete Class-A design to ensure distortion-free performance with enhanced punch and clarity. At moderate settings, it remains remarkably transparent, delivering the sought-after “glue” effect on a stereo buss while preserving natural transients and dynamic relationships. Even when pushed hard, the 33609/N maintains its musicality, offering the rich warmth that has made it a favorite among top-tier audio professionals. While incorporating refinements over previous versions, it pays homage to the original “metal knob” 33609 with its classic diode-bridge topology and discrete output stage, delivering unmistakable analog character.
The AMS Neve 33609/N features both a compressor and limiter on each channel, which can be used independently or in series for layered dynamic shaping. Use the brickwall-style limiter to control sharp transients such as aggressive snare hits or powerful vocals, then follow with the compressor to add smooth consistency and tonal character. Both sections provide multiple recovery time options, including two auto-recovery modes that adapt to program material, as well as fast and slow attack settings for precise control over how the signal responds once it crosses the threshold.
Although renowned as a world-class stereo buss compressor, the 33609/N is equally powerful during tracking. It excels at smoothing vocals, acoustic instruments, drum overheads, and more. Operate it in stereo for cohesive control or switch to dual-mono mode for two independent mono compressors during recording sessions. From shaping individual drums during tracking to gluing together an entire drum buss during mixdown, the 33609/N proves to be an incredibly versatile studio centerpiece.
The Neve name has long been synonymous with excellence in professional audio. From Rupert Neve’s groundbreaking solid-state console designs in the 1960s to the iconic 80 Series consoles that defined the sound of 1970s rock, Neve equipment has shaped generations of recordings. Milestones such as the introduction of the legendary 8078 console and NECAM automation system further cemented the brand’s influence. Today, AMS Neve continues this proud tradition, crafting cutting-edge audio equipment that blends timeless analog heritage with the demands of modern production.
The AMS Neve 33609/N is a “desert island” stereo compressor, offering comprehensive limiting and compression capabilities ideal for music recording, mastering, post-production, and broadcast applications. Handwired with exclusive Marinair® specification transformers on the input, bridge-driver, sidechain, and output stages, it delivers signature Neve® colour and analogue character throughout the signal path.
Neve® pioneered the diode-bridge compressor by utilizing the electrical properties of diodes mounted in a bridge configuration with precisely controlled voltages, significantly reducing distortion. This unique topology produces a gain reduction curve that ranges from smooth compression to overdriven hard-clipping, making the 33609/N a versatile and creative studio tool.
Over the years, the 33609 has evolved through multiple iterations, with each version enhancing its predecessor’s strengths. The 33609/N incorporates the best features from these designs, including balanced gain reduction circuitry, Class A/B amplification, and a discrete transformer-balanced output derived from early Neve® console line output stages, producing the characteristic “sweet” Neve® sound.
Every control on the 33609/N is stepped, from threshold to makeup gain, enabling precise stereo matching and fast session recall — perfect for mixing and mastering. The independent compressor and limiter circuitry provides ultimate dynamic control, with the limiter positioned after the compressor’s makeup gain for creative flexibility. Feedback-style compression introduces analogue non-linearities, forming the unique sonic character of the 33609/N.
The 33609/N allows fine-tuned compression for a wide range of program material, featuring multiple switchable recovery times and two auto-recovery modes. The slow attack setting reduces sensitivity to low frequencies by 6dB/octave at 100Hz, preventing unwanted triggers from kick drums and other low-frequency peaks, making it ideal for stereo buss glue.

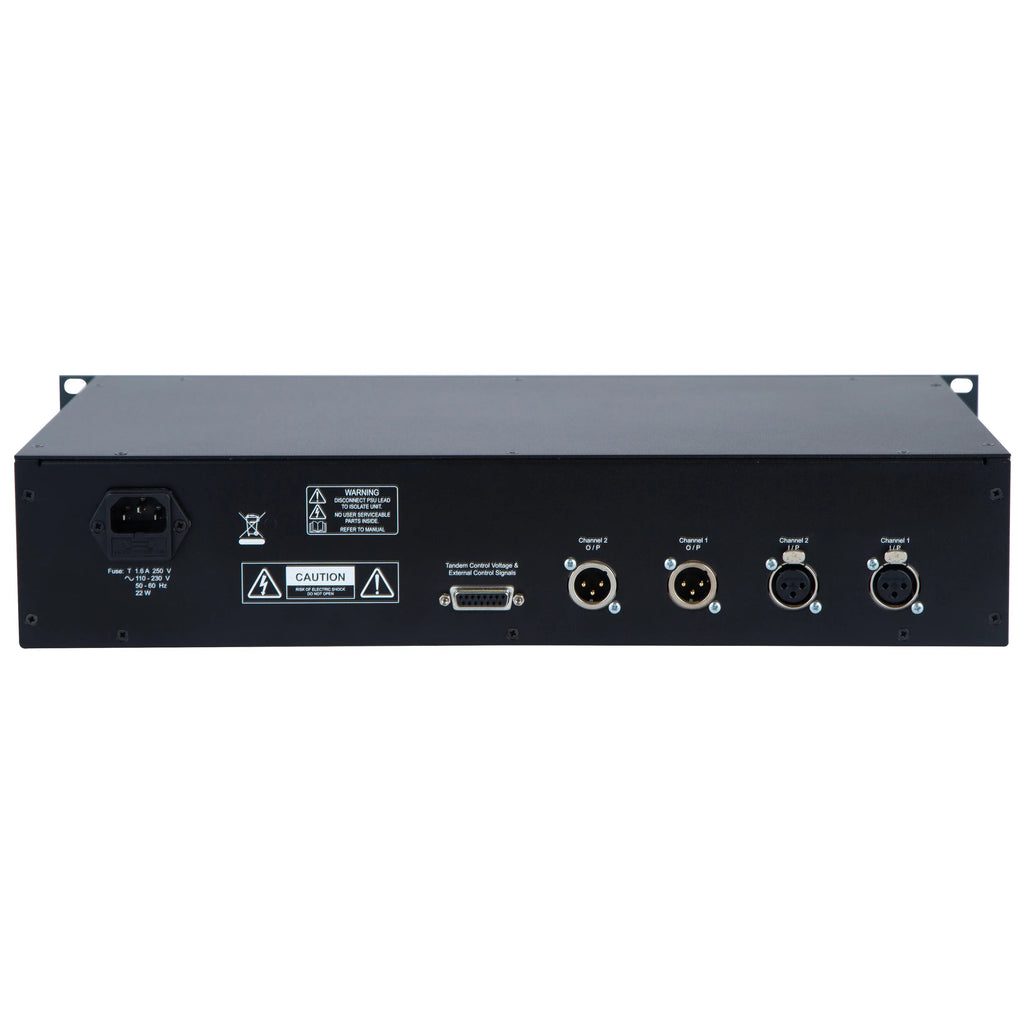

The two channels of the 33609/N can operate independently or linked in stereo. For larger setups, multiple units can be connected via tandem control voltage connections, with remote control over bypass, mono/stereo selection, and compressor in/out switches. Independent moving coil meters display gain reduction up to -20dB per channel. A true straight-through bypass connects input directly to output, enabling quick A/B comparison of wet and dry signals.
| Type | Diode-Bridge Compressor/Limiter |
|---|---|
| Number of Channels | 2 |
| Controls | Threshold, Ratio, Attack, Recovery |
| Threshold | Limit: +4dBu to +15dBu, Compress: -20dBu to +10dBu |
| Ratio | 1.5:1 to 6:1 |
| Frequency Response | 20Hz–20kHz (±0.5dB) |
| Inputs | 2 x XLR |
| Outputs | 2 x XLR |
| Sidechain I/O | 1 x 15-pin (tandem control voltage) |
| Rack Spaces | 2U |
| Power Source | Standard IEC AC cable |
| Height | 3.5" |
| Depth | 10" |
| Width | 19" |
| Weight | 11 lbs. |
| Manufacturer Part Number | 33609/N |
