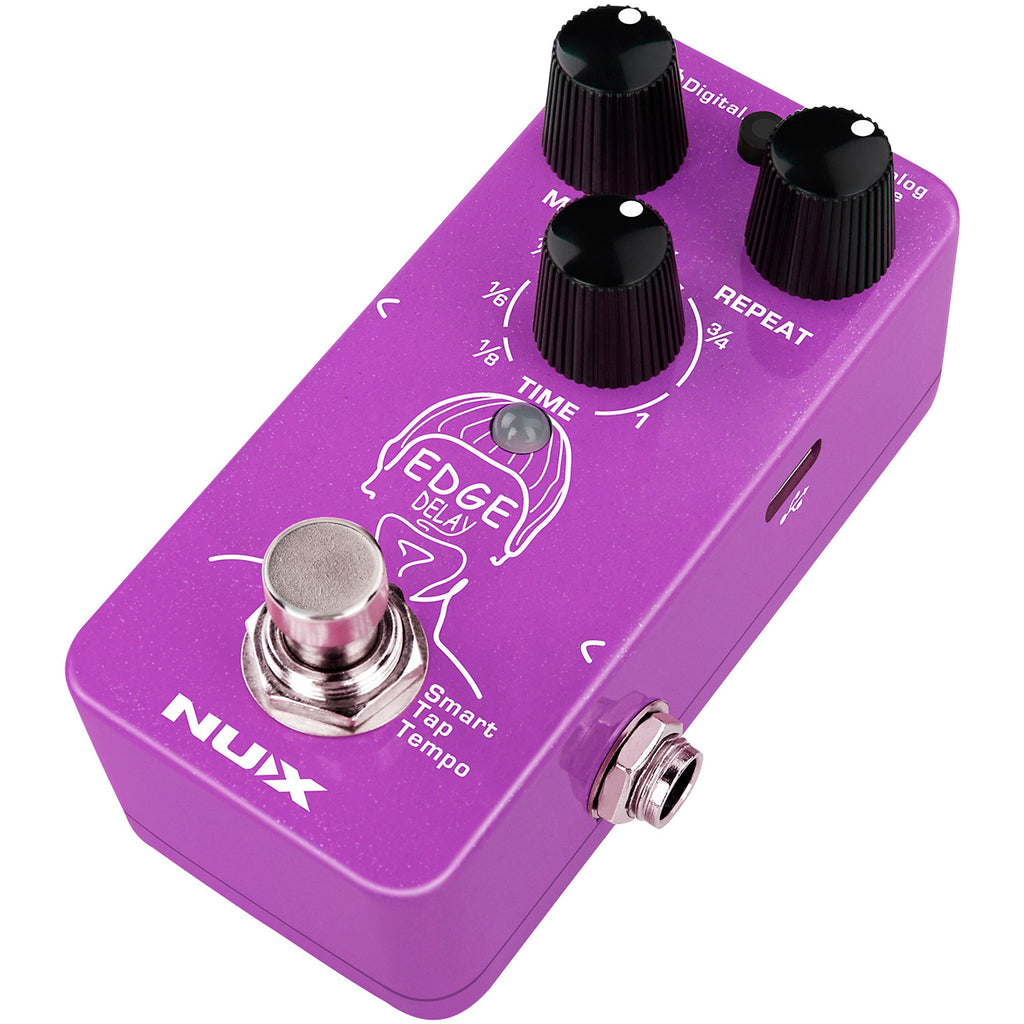

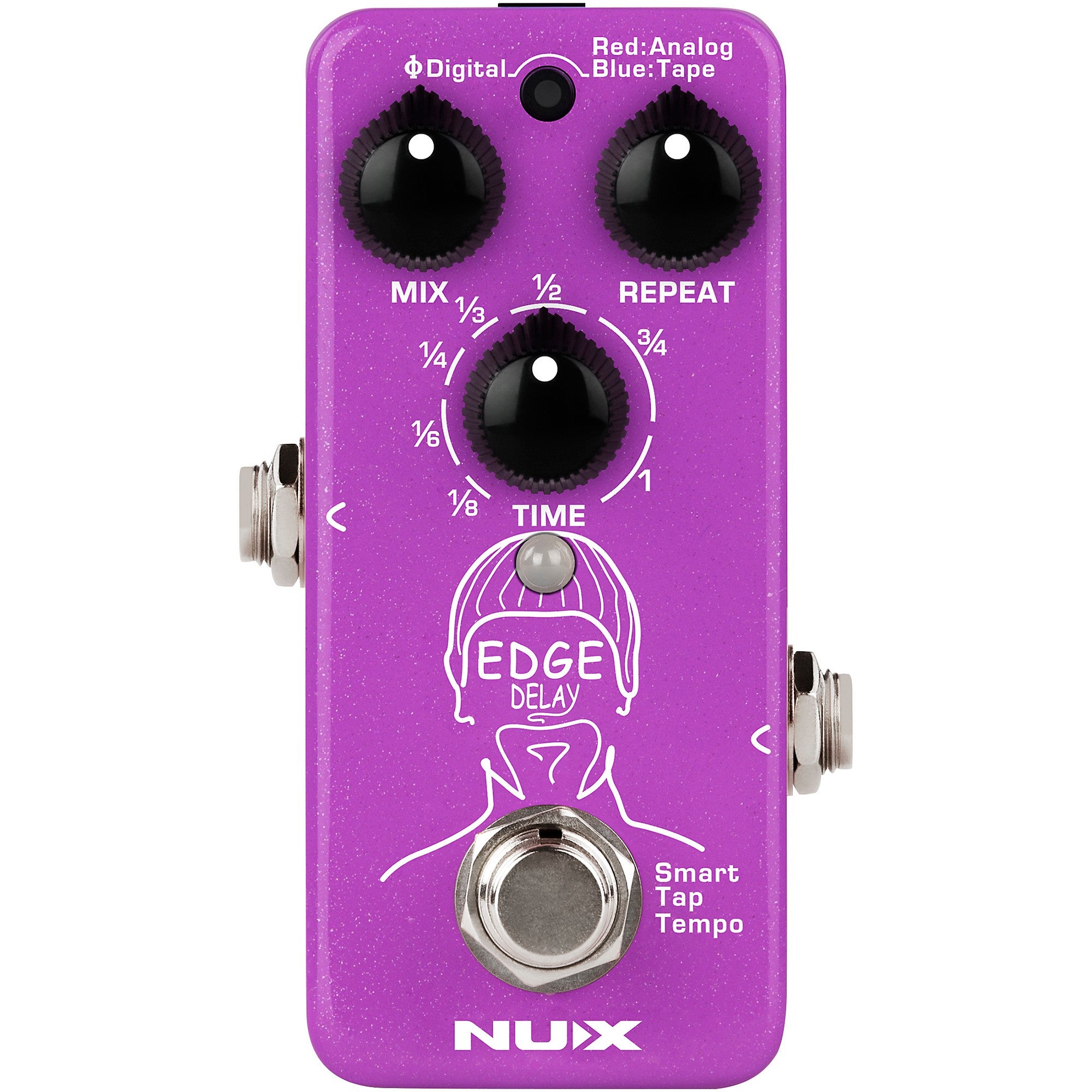

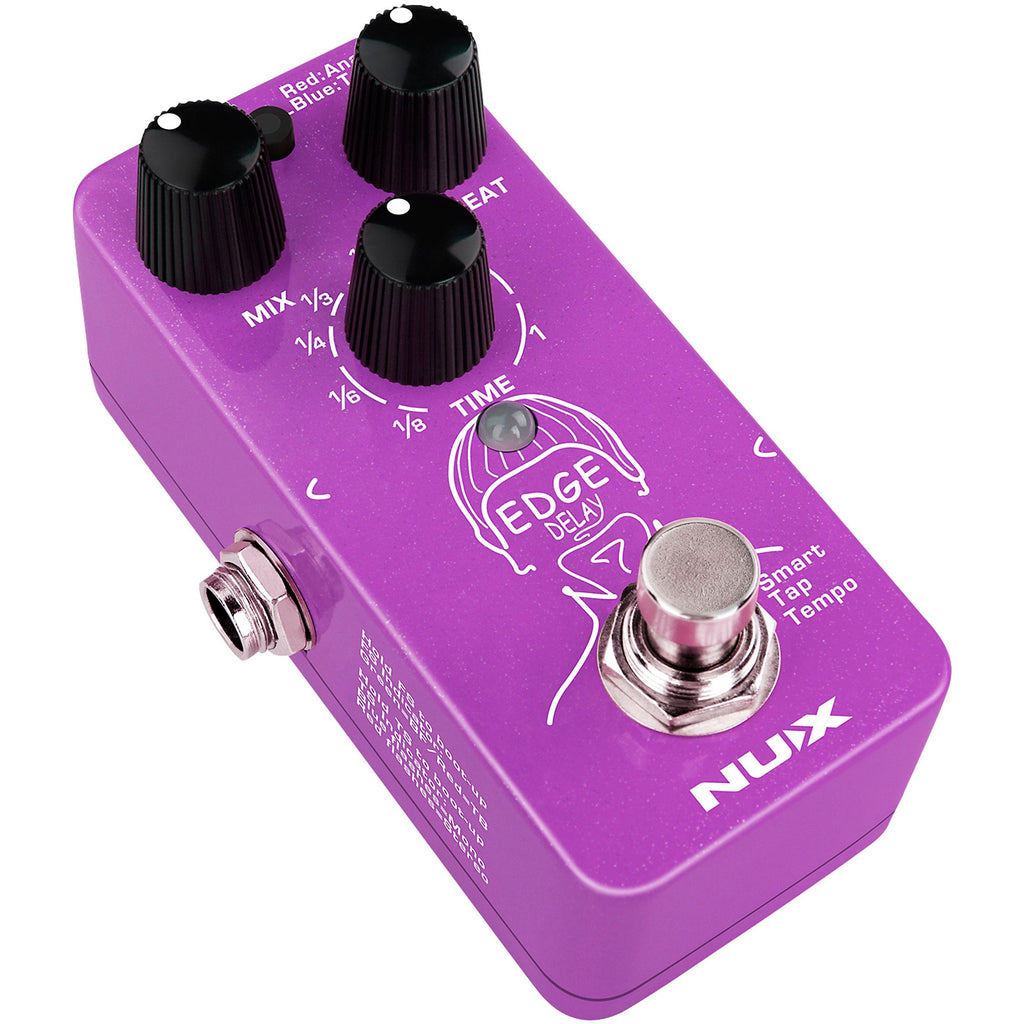

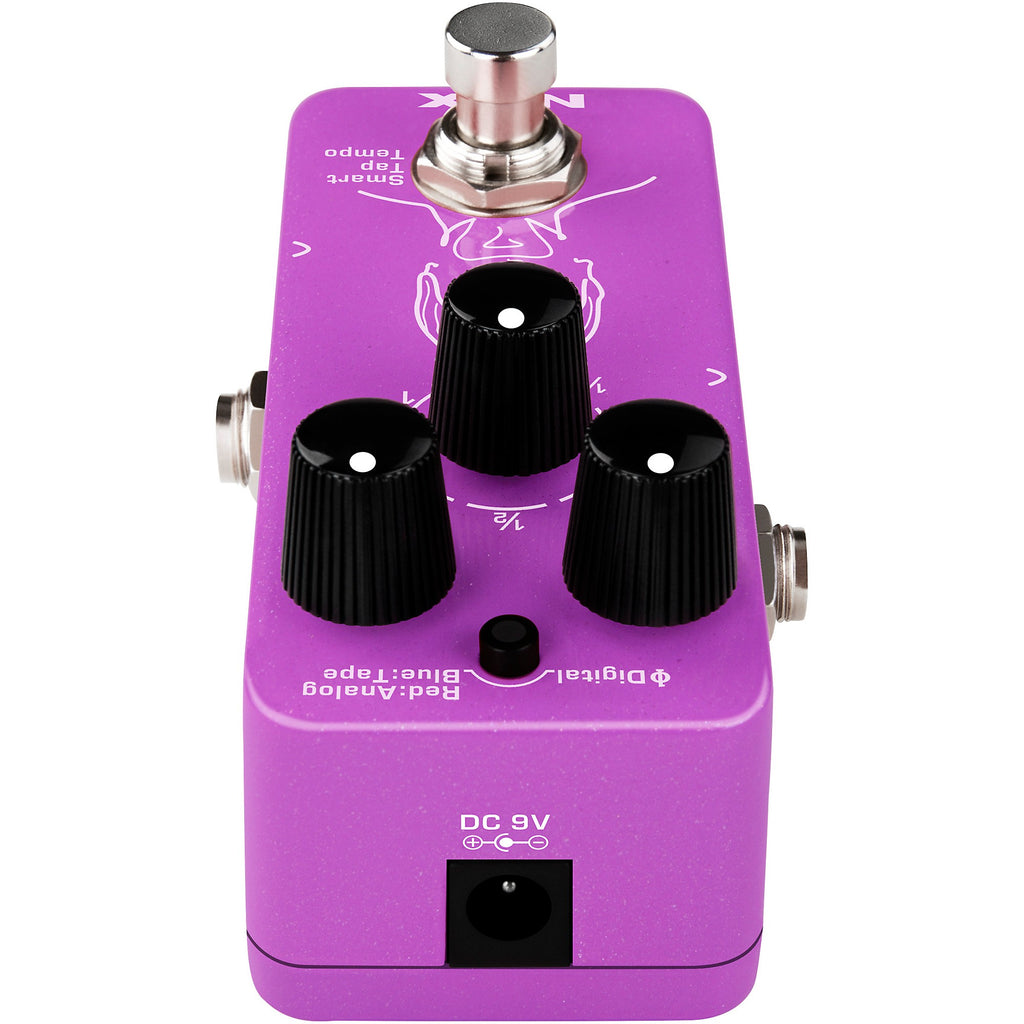

Offering three unique delays in a pedalboard-friendly design, the NUX Edge Delay is an adaptable effect for any player. This mini delay pedal features three controls to shape your tone, a subdivision knob with a smart tap that sets the time parameter, a mix knob to set the level, and a repeat to warp the notes further. The Edge Delay even runs with true or buffered bypass to keep your signal strong. Music Experience guitarists dial in everything from saturated tape delay to fuzzy analog repeats, earning its keep on many of their boards. Plug in with a 1/4-inch TRS, and you can even operate it in stereo, further adding to this mini pedal’s tonal variety. Grab a NUX Edge Delay and find all the delay you're looking for in one pedal.

Three styles to choose

The Edge Delay pedal features three distinct delay tones to help you shape your sound. The ΦPhi Digital Delay voice makes the sound more musical with a golden ratio second repeat head. The Analog Delay is based on the vintage BBD, or bucket brigade device, from the NUX reissue series. It is warm with natural treble decay and an algorithm replicating the physical infinity oscillation. Finally, the Tape Echo digitally re-creates the feel of real tape and capstan configurations. It faithfully emulates the high-frequency saturation and low-end decay of magnetic tape for fuzzy vintage coloration.

What NUX Says...

The Dotted Eighth Is The Edge Of This Delay’s Beauty. The Edge Delay Provides You With 3 Unique Delays, Each Including Acurate Control Over Its Sonic Character And Feel. Clear, Studio-Quality Digital Delays. Saturated And Fluctuating Sounds Of Tape Delay Machines. Warm And Fuzzy Analog Style Repeats. The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch. ΦPhi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and you’re ready to go. Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. The Tape Echo emulates the high-frequency saturation and low-end decay of magnetic tape. It’s gently modulated for added richness and color. Tweak the time knob from max to min quickly, and you can get the infinity feedback. Analog Delay is based on the vintage BBD (Bucket Brigade Device) delay. It produces a very warm sound with natural treble decay. Very suitable for scorching ballad solos with romantic atmosphere. Our unique algorithm replicates the physical infinity oscillation feedback while you tweak the time knob from max to min quickly.

Sub-Division With Smart Tap Tempo

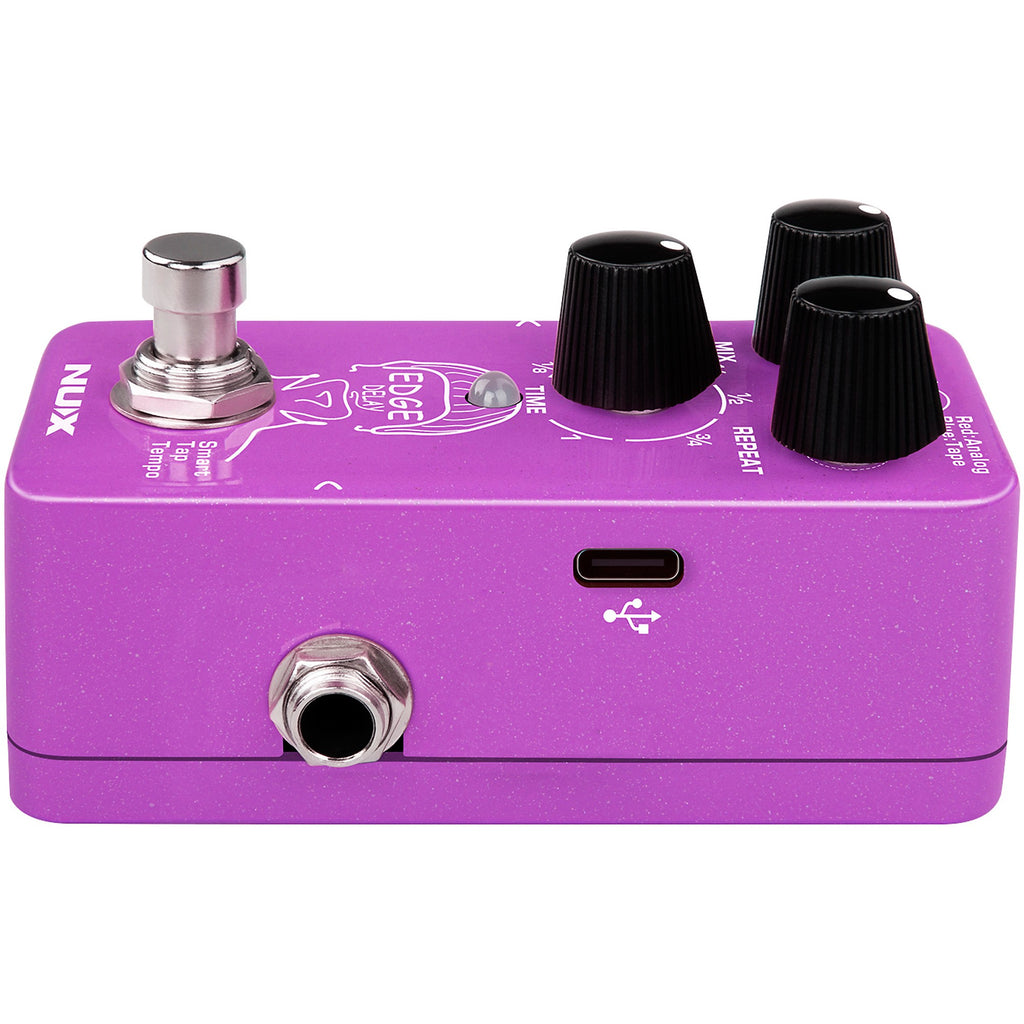

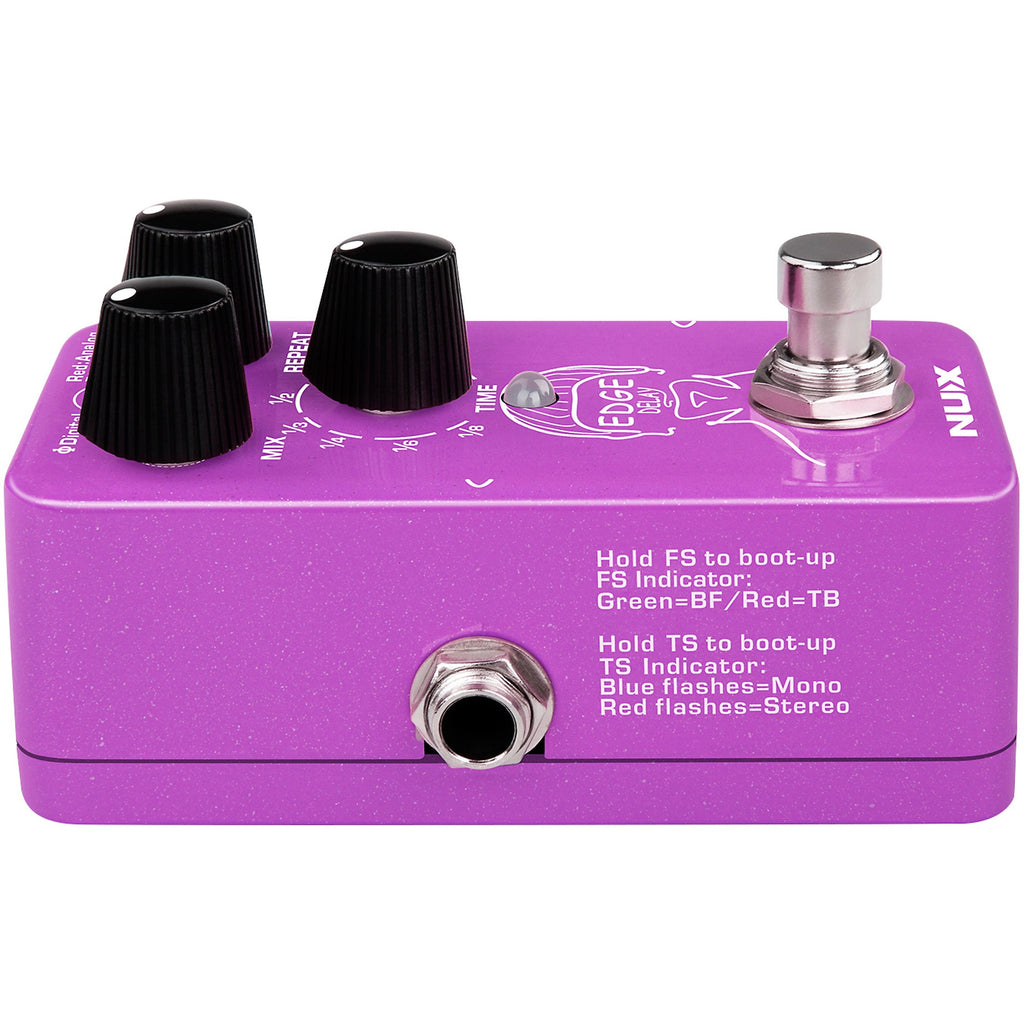

Set the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay. Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.) Mini but mighty! It also supports Stereo input & output. (Use 1/4” TRS cable and choose Stereo mode). A USB-C port is provided for occasional firmware updates. Connect the USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software. You can download the related firmware and firmware update guide from the product page.
