Take Control of Your Tone!

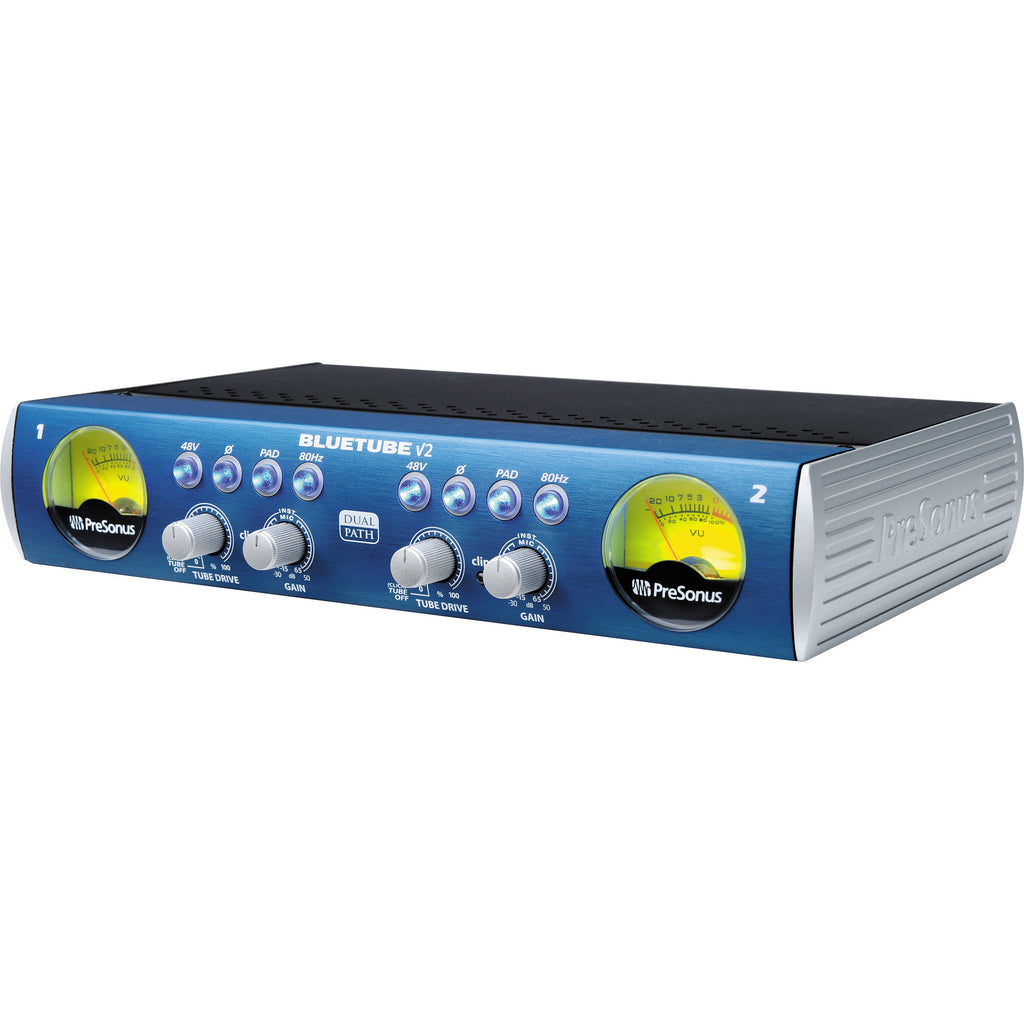

Get more preamp for your money with the PreSonus BlueTube DP v2 2-channel microphone and instrument preamplifier. The “DP” in BlueTube DP v2 stands for Dual Path, delivering two independent signal paths per channel — a clean XMAX Class A solid-state preamp and a high-voltage 12AX7 tube circuit. This flexible design lets you blend pristine clarity with rich tube saturation, making the BlueTube DP v2 an ideal solution for vocals, instruments, and creative tone shaping in both studio and live environments.
- Dual Path preamp design combines clean XMAX Class A solid-state gain with 12AX7 tube saturation
- Class A XMAX microphone preamps provide exceptionally clean sound with up to 80dB of gain and ample headroom
- Dual 12AX7 tube circuits allow smooth blending from pristine tones to harmonically rich distortion
- 20dB pad and switchable phantom power on each channel support a wide range of microphones
- Combo XLR instrument inputs function as high-quality DI boxes for guitar and bass
- Ideal for vocals, acoustic instruments, electric guitar, bass, and live performance setups
- Compact 1/2U form factor integrates easily into desktop, rack, or mobile recording rigs
What PreSonus Says...
Equipped with instrument and mic inputs and built for serious gigging, the PreSonus® BlueTube DP V2 dual-path mic/instrument preamplifier is ideal for guitarists, bassists, singer-songwriters, and more. Compact, affordable, and capable of a wide tonal range, it offers two independent channels with combo mic/instrument inputs and balanced XLR plus unbalanced ¼-inch line outputs. Use it as a preamp or a direct box (DI) for guitars and basses, or run vocals through one channel and guitar through the other for live PA setups without a guitar amp.

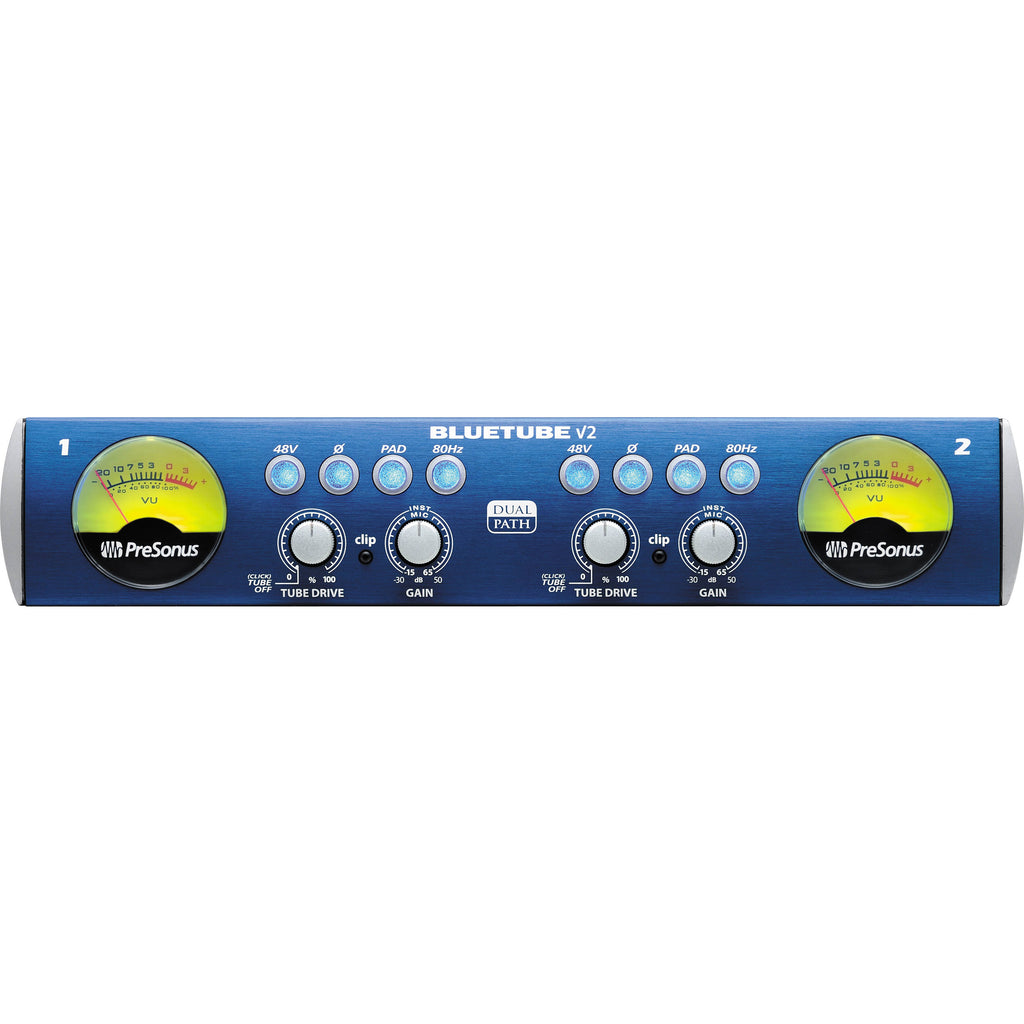

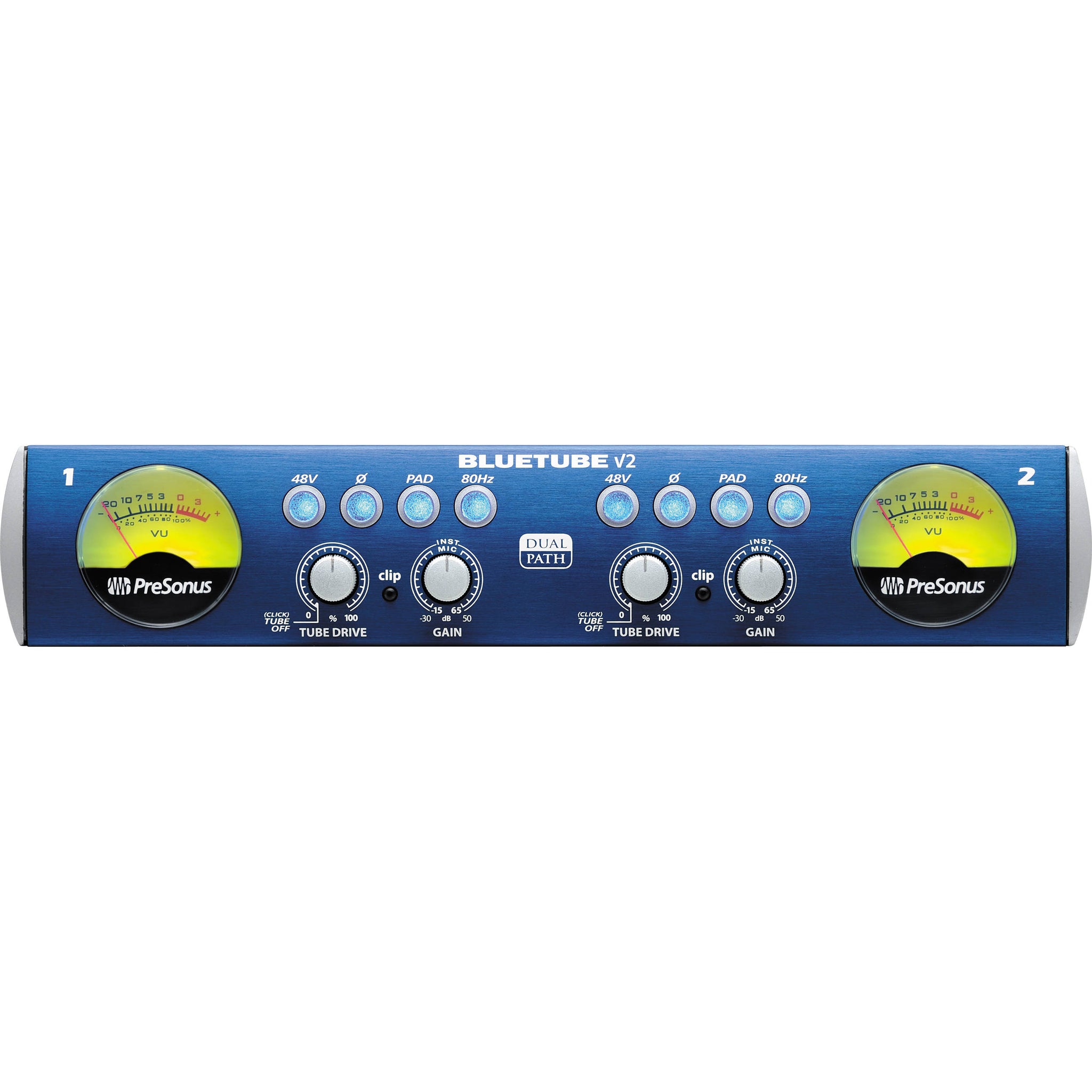

Each channel features a PreSonus XMAX Class A solid-state preamp followed by a hand-selected 12AX7 vacuum-tube stage. Engage the Tube Drive control to blend in warm tube saturation or leave it off for clean, transparent amplification. The BlueTube DP V2 also includes an 80 Hz high-pass filter, phantom power, a -20 dB pad, polarity-reverse switch, and a backlit VU meter for professional-level control.
- 2 balanced combo mic/unbalanced instrument inputs
- 2 high-headroom Class A XMAX mic preamps with 80 dB gain range, 48V phantom power, and 12AX7 vacuum-tube stage with Tube Drive control
- 80 Hz high-pass filter to reduce low-end rumble
- -20 dB pad to manage hot input signals
- Polarity-reverse switch for phase correction
- Illuminated analog VU input-level meter

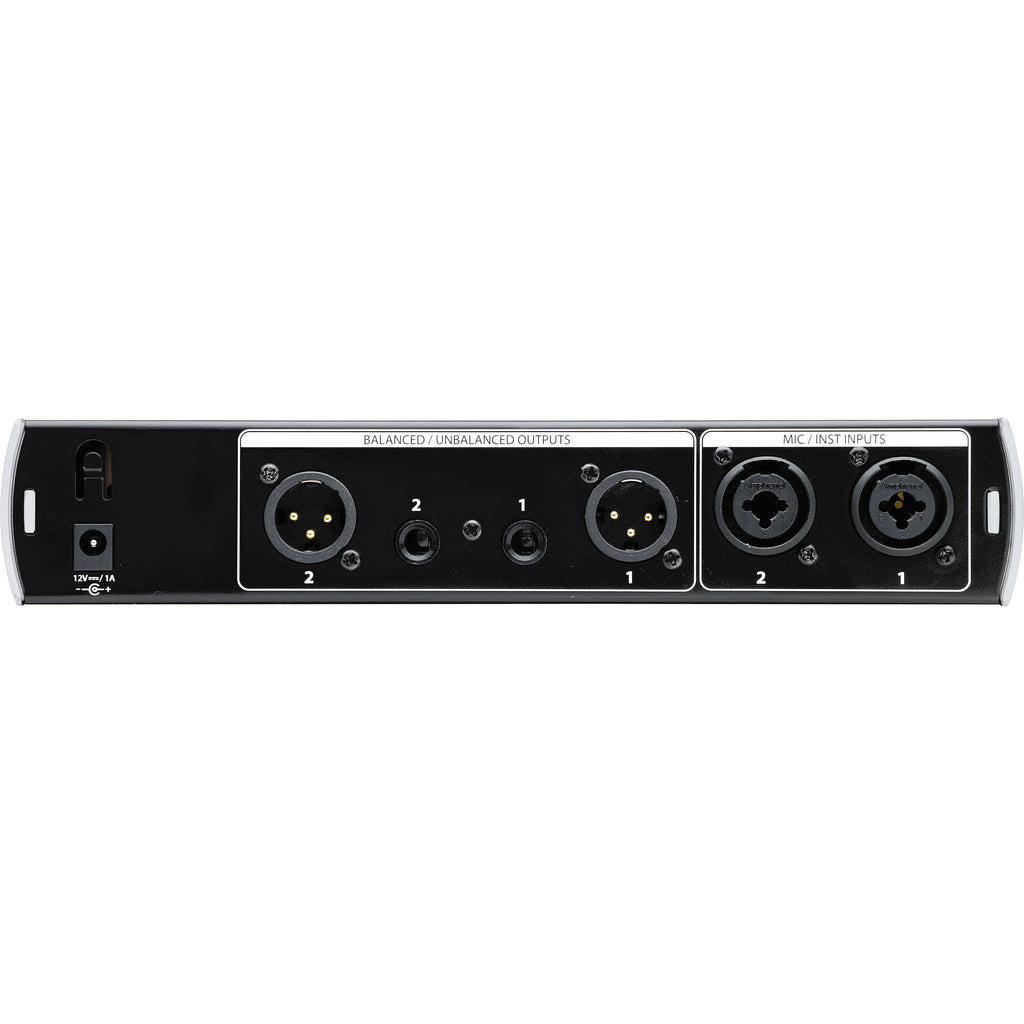

- 2 balanced XLR and 2 unbalanced ¼-inch main (L/R) line outputs
- Compact 1/2U chassis for desktop, rack, or gig bag portability
- External 12 VDC, 1A power supply included
PreSonus BlueTube DP v2 2-channel Microphone Preamplifier and DI Features:
- Value-packed 2-channel preamp that allows dialing in a wide range of tones
- XMAX Class A solid-state preamps deliver clean and clear sound
- Parallel 12AX7-driven tube preamps let you blend in warm tube saturation
- Switchable 48V phantom power supports all microphone types
- Concentric hi-Z instrument inputs on both channels for direct guitar or bass connection
- 80 Hz high-pass filters to roll off unwanted low frequencies
- 20 dB pads accommodate hot sound sources, high signal levels, and active pickups
- Polarity-reverse switch for correcting phase issues at the source
- Backlit VU meters with LED clip indicators for easy level monitoring
- Rugged 1/2U rackmount chassis that’s also ideal for tabletop use
|
|
Tube/Solid State |
|
|
2 |
|
|
Yes (Switchable for each channel) |
|
|
2 x XLR combo (XLR-DI combination) |
|
|
2 x XLR, 2 x 1/4 TS |
|
|
20Hz-20kHz |
|
|
Half |
|
|
1.75" |
|
|
9.5" |
|
|
2777400101 UPC: 673454001703 |
