Over the past quarter century, sound systems and instruments have evolved dramatically — and so have listeners. High-fidelity sound is now expected. Only recently have we begun to truly appreciate the importance of a high-quality direct box. A great DI must deliver wide, distortion-free frequency response and the dynamic range required for today’s powerful instruments.

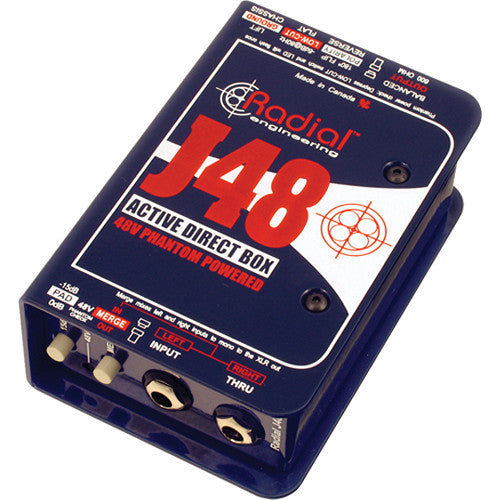

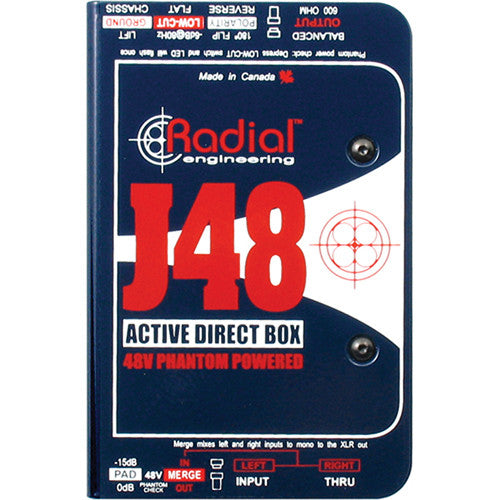

The Radial J48 is an active direct box designed to work efficiently within the limited current supplied by 48-Volt phantom power, while still delivering the pure and natural sound of the instrument. A unique switch-mode supply boosts the internal voltage rails, allowing an input signal of up to 10V with no noticeable distortion.
The J48’s primary design goal was massive headroom without sacrificing sound quality. Phantom power is converted using an ultra-efficient digital switch-mode supply that steps the internal rail voltage up to 10 volts. This allows the J48 to handle signals up to 9 volts without choking. To maximize available power, non-essential components such as LEDs are disabled during operation, reserving energy for the audio circuit.

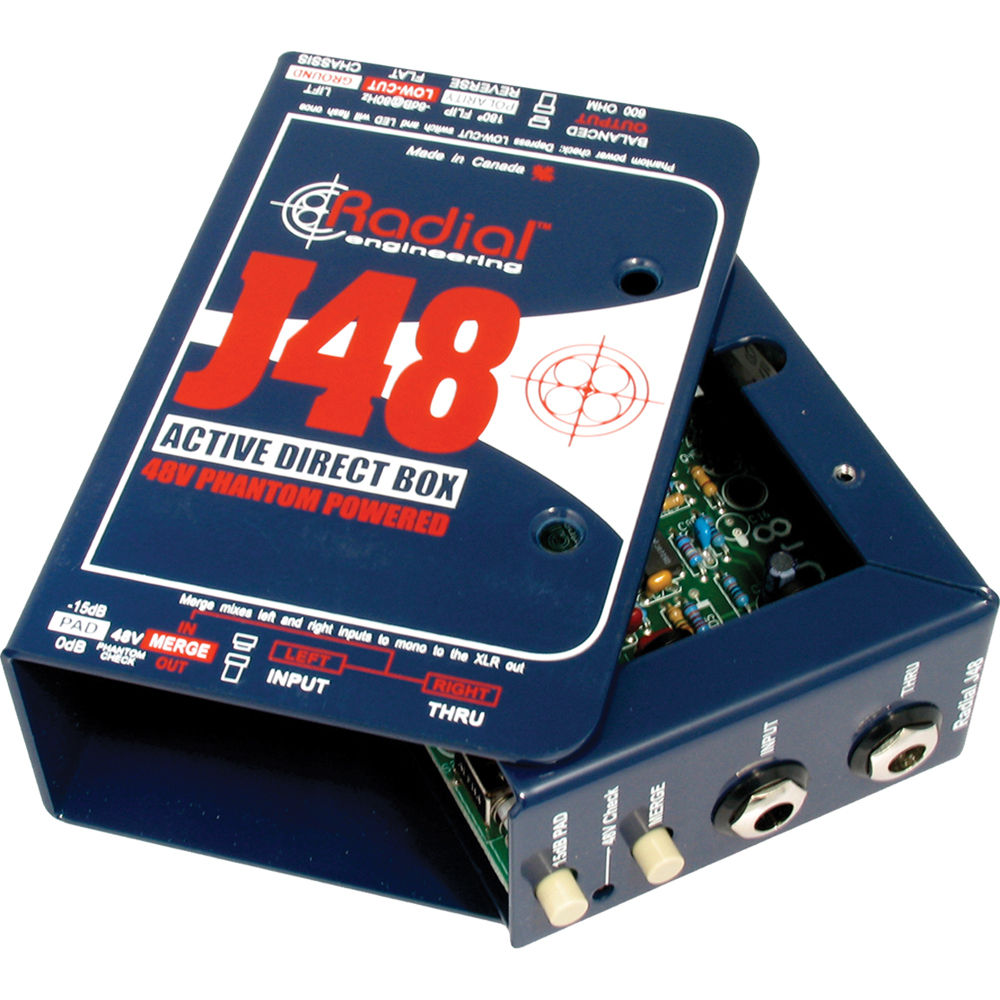

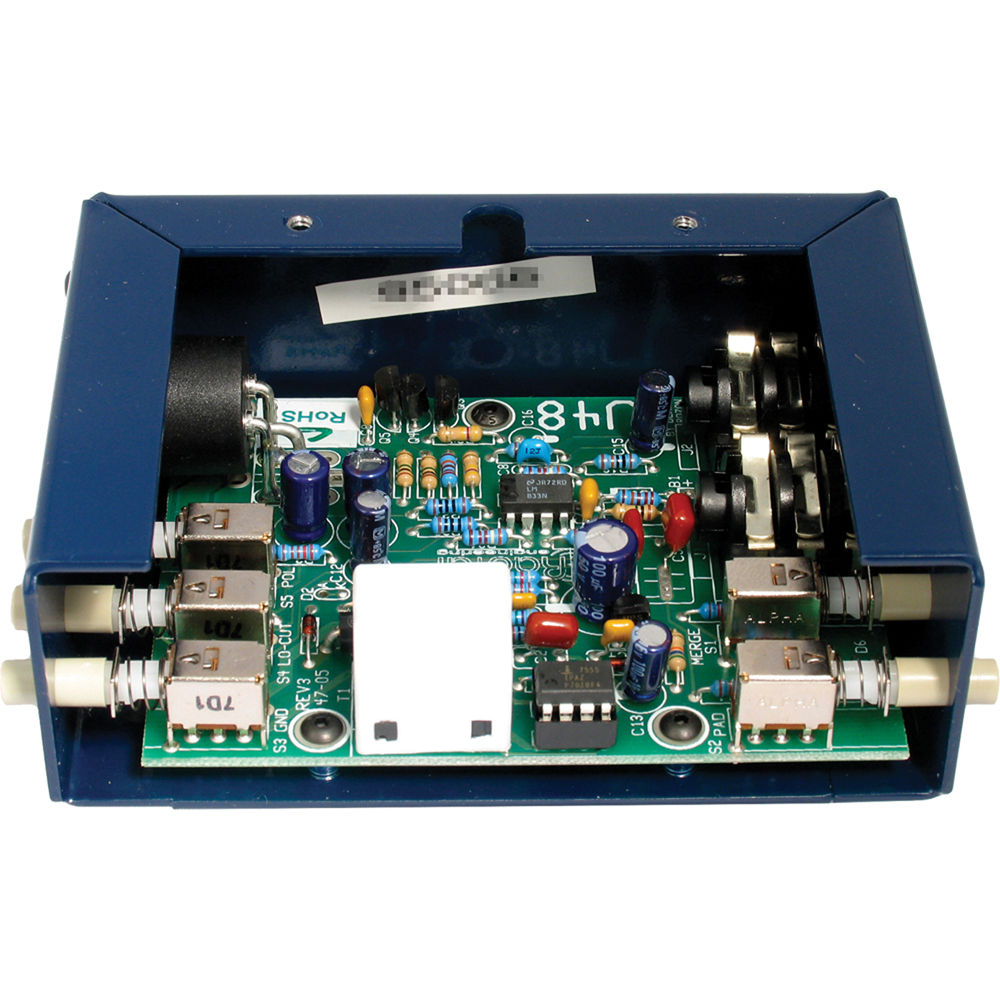

Inside the J48 are oversized capacitors providing ample current storage for clean, unobstructed power. Increased headroom results in dramatically lower phase distortion, significantly reduced harmonic distortion, and extremely low inter-modulation distortion. These engineering choices lead to superior audio performance.
In addition to great tone, the J48 introduces functions that enhance creativity and flexibility. Alongside the standard 1/4" input and thru connections, the Merge function converts the thru output into a second input. This sums stereo sources such as keyboards or CD players into mono, ideal when mixer inputs are limited. A -15dB pad is also available for high-output instruments.
To tame low-end rumble and excessive resonance, the J48 includes an 80Hz high-pass filter. Since low frequencies consume far more RMS power, removing unnecessary lows increases dynamic handling by 3dB — doubling the available headroom. This both cleans up the sound and improves system stability.
Like all Radial products, the J48 is built for the rigors of professional use, featuring a welded I-beam construction for long-lasting durability.
The J48 is a high-performance active direct box built for live concert touring and professional studio environments. It effortlessly handles extreme transients without distortion, delivering the pure, natural sound of your instrument.
Many active basses and guitars can output as much as 7 volts at full volume, easily overloading typical active DI boxes that only handle around 3 volts. The J48 solves this with a unique switching power supply that increases its internal rail voltage, allowing it to handle signals up to 9 volts. This dramatically boosts headroom, reduces distortion, and preserves the natural character of the instrument.
On stage, a DI’s primary job is to deliver your instrument’s signal cleanly from the stage to the mixing desk and PA system. The Radial J48 sends your tone across long cable runs without adding noise, distortion, or color — perfect for professional touring environments.
For recording direct, the quality of the DI determines the quality of the track. The J48 excels at capturing deep, clean bass and pristine guitar tones, providing a pure signal that engineers love to work with.
Reamping involves sending a previously recorded dry track back out through amps and pedals to create new tones. The J48 is ideal for capturing clean, accurate DI tracks that can be reamped later — a technique widely used by top recording professionals.
