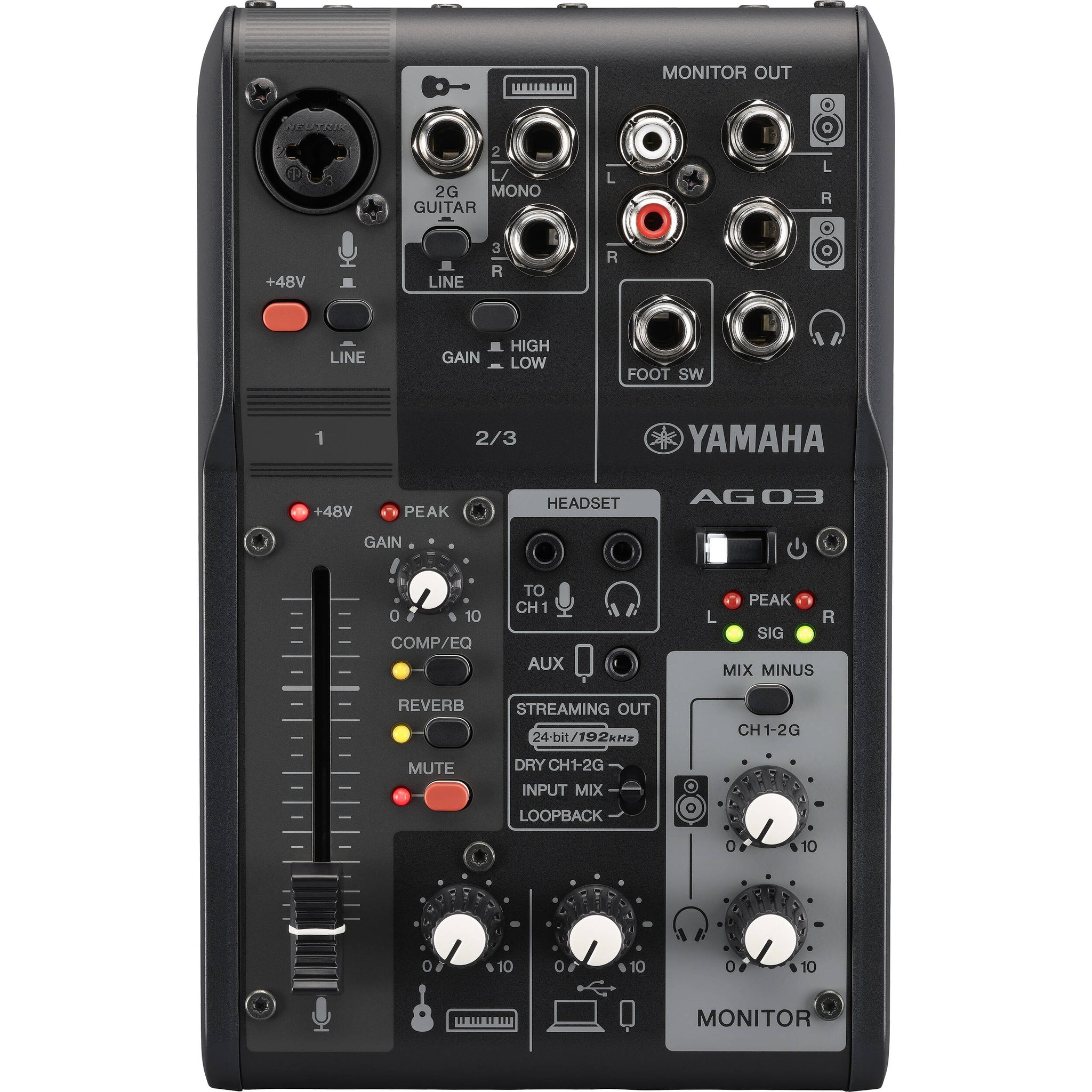

The AG03 Mk2 maintains a sleek design. Inputs and outputs are grouped across the top, making sure your controls are free from clutter. A single multi-purpose jack supports XLR-type and phone (balanced or unbalanced) inputs, while a phone plug — featuring a dedicated line switch — allows you to toggle between guitar and line-level inputs. A third channel, with dedicated left- and right channel-inputs, gives you an option to run the left channel for monaural instruments. Furthermore, this mixer natively supports iOS to incorporate apps such as Zoom, Skype, Teams, and FaceTime — all from your device.
Keeping your levels dialed in is paramount to a good stream, and the AG03 Mk2 is big on options. You're armed with LEDs for visual feedback, monitoring for peaks, channel muting, and built-in +48-volt phantom power, which is ideal for use with condenser mics. Reverb, mute, and comp/EQ functions comprise the onboard DSP effects alongside a dedicated 60mm fader for your microphone, in addition to channel controls and gain adjustment. The 3-way selector further democratizes your stream control, with options for dry channel 1–2, input mix, and loopback — the latter enabling the simultaneous incorporation of music or background audio from your laptop or iOS device, with your live inputs.
Due to the AG03 Mk2’s class compliance connectivity, iOS incorporation opens up numerous options for getting even more out of your mixer. This includes compatibility with Cubasis LE, a multi-touch sequencer app and pared-down version of the Cubase DAW. Additionally, the AG DSP Controller app provides more refined control of the onboard options, with a “1-touch” easy mode and an expert mode. Plus, the AG03 Mk2 comes with the Cubase AI DAW, allowing for a powerful, smooth avenue for producing high-quality recordings.
With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.
The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities. You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.

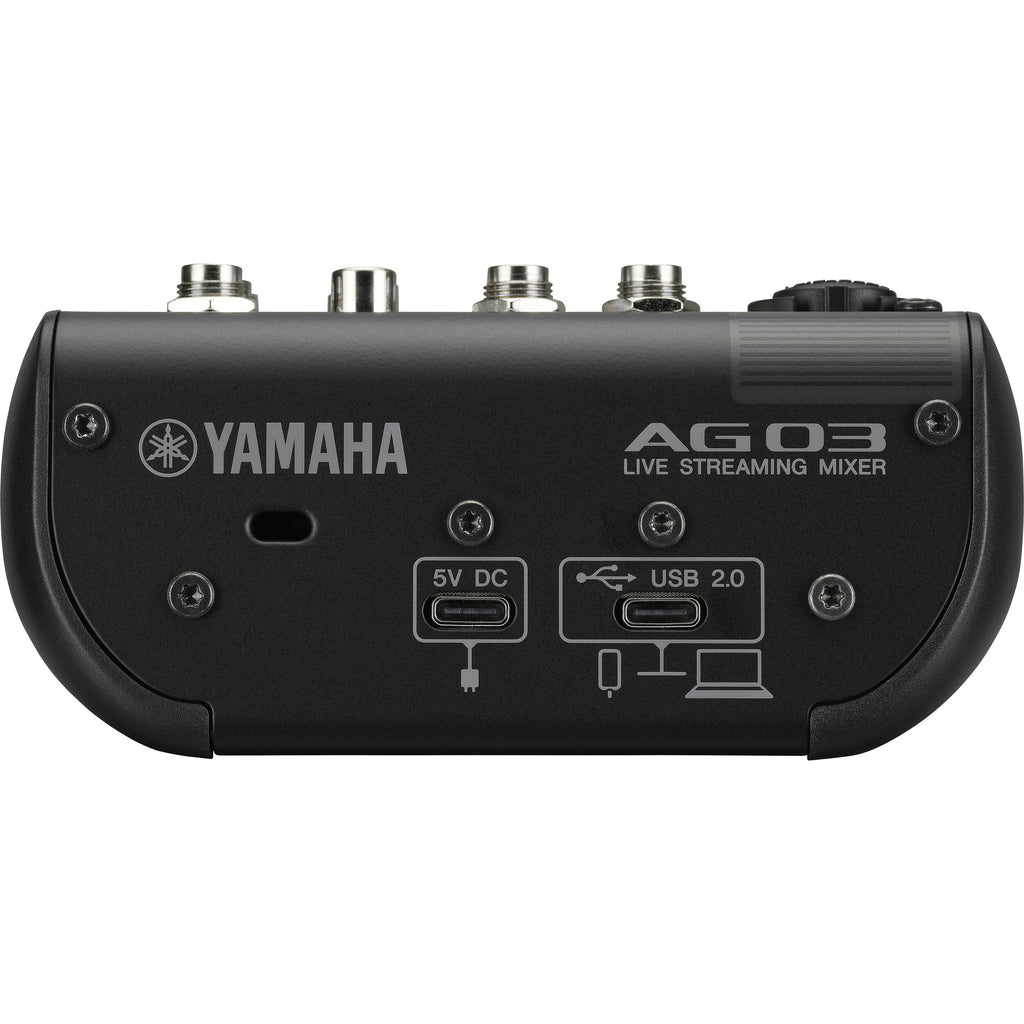

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.
Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input. All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial. You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.
AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

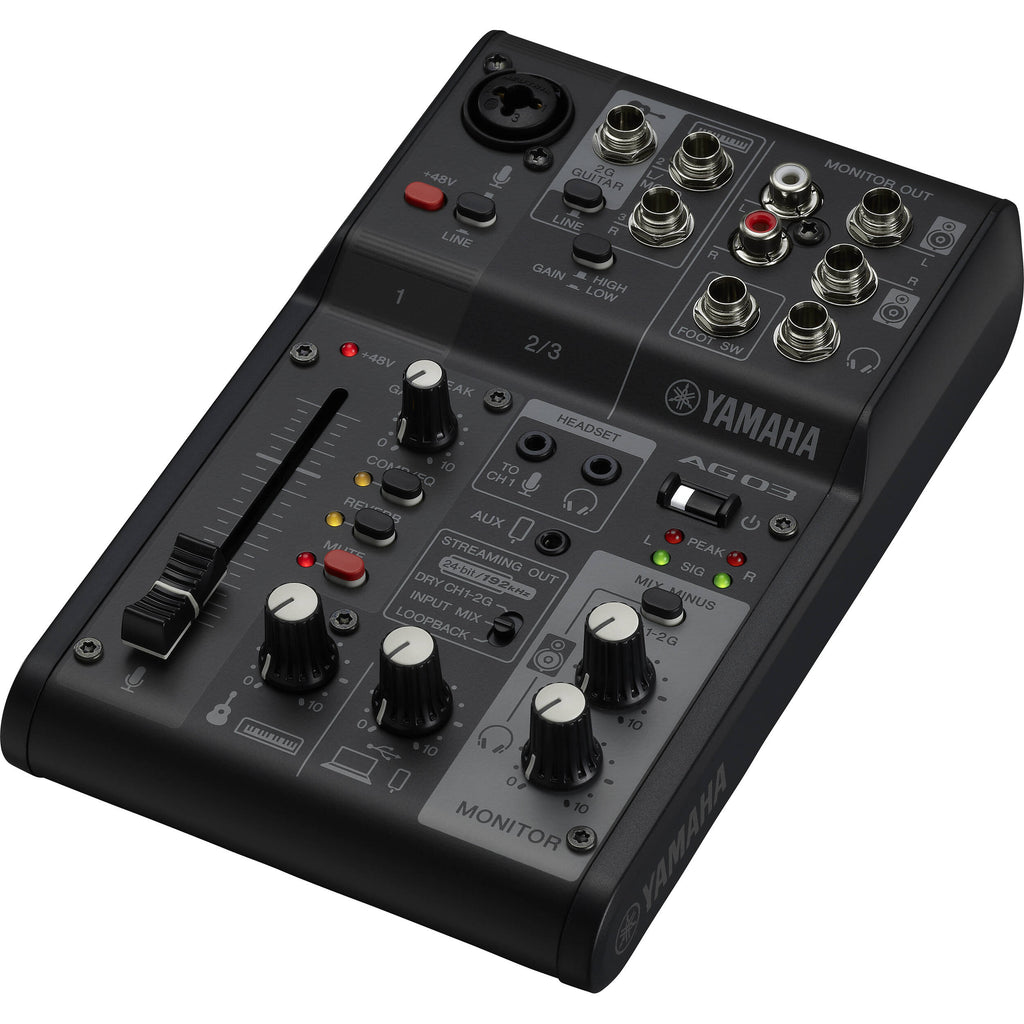

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface. By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere. *For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required. *BMS-10A and mobile battery are sold separately.
The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.
Type | Analog Mixer with USB |
---|---|
Channels | 3 |
A/D Resolution |
24-bit / 192kHz |
Faders | 1 x 60mm |
Inputs - Mic Preamps |
1 x XLR-1/4" combo |
Headphones | 1 x 1/4" TRS, 1 x 1/8" |
Phantom Power | +48V |
Inputs - Line | 3 x 1/4" TRS, 1 x 1/8" |
Outputs - Main | 1 x Dual RCA Stereo, 2 x 1/4" TS |
Computer Connectivity | 1 x USB-C |
Other I/O | 1 x 1/4" (footswitch) |
Effects | Loopback function, one-touch Reverb |
Software | Cubase Al, WaveLab Cast, Cubasis LE, Rec'n'Share |
Power Source | USB bus powered (5V DC) |
Height | 2.48" |
Width | 4.96" |
Depth | 7.91" |
Weight | 1.76 lbs. |
Manufacturer Part Number | AG03MK2 B |
